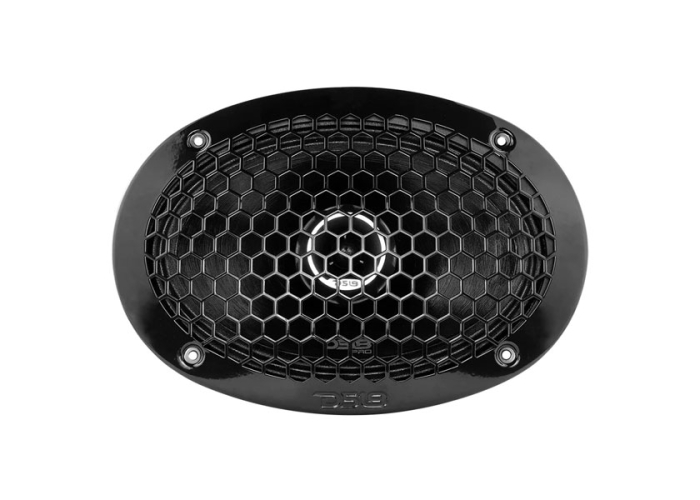

DS18 PRO-ZT69 550W 6x9" Mid-Range Speaker

DS18 PRO-ZT69 6x9'' Mid-Range Speaker w Tweeter & Grill - Single
(DS18 PRO-ZT69)

We Think You Should Know

• Australian DS18 Warranty
• Purchase Guarantee (see T&C's)
• Sold in single units
• 6x9'' Mid-Range Loudspeaker
• 550W Peak / 275W RMS Power
• 4 ohms Impedance
• 98dB sensitivity
• Built-in Tweeter
• Water Resistant
• Grill Included

Overview

Get ready to revolutionize your driving experience with the PRO-ZT69! This speaker is designed to take your audio to new heights with its impressive specs and built-in bullet tweeter.

Powered by a neodymium magnet, the PRO-ZT69 generates an exceptional magnetic flux density in the air gap, resulting in unparalleled action force in the voice coil. This means you'll experience powerful and dynamic sounds like never before.

With a frequency response range of 60Hz to 22KHz, the PRO-ZT69 ensures you hear every nuance and detail of your favourite music. From crisp highs to deep lows, this speaker delivers accurate sound reproduction across the entire audio spectrum. The integrated filter and high-powered tweeter guarantee impeccable highs that soar effortlessly, while the robust 6x9-inch cone handles low-end frequencies with ease, creating a harmonious and immersive listening experience.

The PRO-ZT69 comes equipped with a durable grill, protecting accidental kicks and scuffs. This ensures that your investment stays safe, allowing you to enjoy your music worry-free.

Optimized for seamless integration into your car’s audio system, the PRO-ZT69 boasts a nominal impedance of 4 Ohms. With an RMS power handling of 275W and a MAX power handling of 550W, every beat and note is delivered with remarkable clarity and precision. Additionally, its impressive sensitivity rating of 98dB (1w/1m) ensures an impressive sound output even at lower power levels.

DS18 Car Audio - The Company

DS18 is a leading electronics manufacturer specializing in Mobile, Marine and Home Electronic equipment, headquartered in Miami, FL, USA. DS18 was created and developed by a team of young and determined professionals who understand the needs of today’s audio industry—offering several series of amplifiers, speakers, subwoofers, tweeters, midranges, cables, accessories, component sets and much more DS18 guarantees to satisfy customers seeking a wide assortment of products.

SPECS

SKU
PRO-ZT69
Nominal Diameter
6x9”
Nominal Impedance
4 ohms
RMS Power Handing
275 WATTS
Maximum Power Handing
550 WATTS
Sensitivity (1w/1m)
98dB
Frequency Response
60Hz-22KHz
Recommended Hi Pass Crossover
80 Hz

MIDRANGE

Voice Coil Diameter
1.5” (38.1 mm)
Voice Coil Former Material
Kapton
Winding Material
CCAW
Basket Material
Steel
Magnet Weight
27 oz
Magnet Material
Ferrite

TWEETER

Voice Coil Diameter
1”
Voice Coil Material
KAPTON
Winding Material
CCAW
Diaphragm Material
ALUMINUM ALLOY
Magnet Weight
0.44 oz
Magnet Material
NEODYMIUM (N38H)

THIELE & SMALL PARAMETERS

Vas
14.6927 LTR
Xmax
16 mm
Fs
85 Hz
Qms
3.906
Qes
0.639
Qts
0.549
Re
3.2 ohms

MEASUREMENTS

Overall Diameter
260 x 180 mm (10.24 x 7.09”)
Front Mount Baffle Cutout
219 x 150 mm (8.62 x 5.91”)
Mounting Depth
85 mm (3.35”)
Overall Depth
97 mm ( 3.81”)

• 1 x DS18 PRO-ZT 6x9'' Mid-Range Speaker w Tweeter & Grill
• Sold in single units (not pairs)
