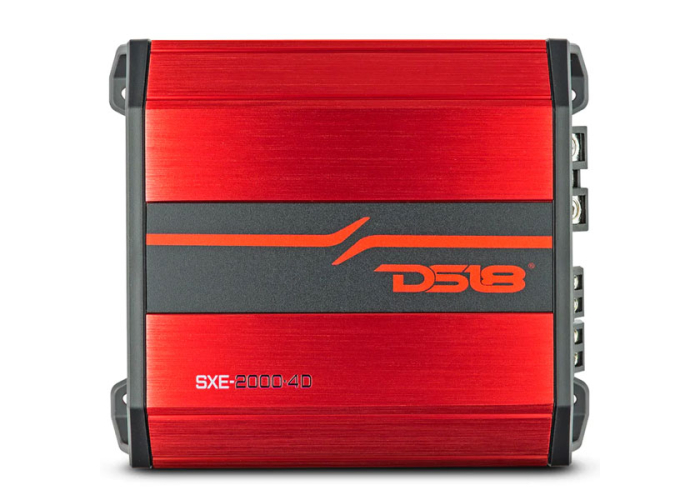

DS18 SXE-2000.4D 4-Channel 2000W Amplifier - Red
DS18 SXE-2000.4D 4-Channel 2000W Amplifier - Red
(DS18 SXE-2000.4D/RD)
We Think You Should Know
- Genuine Australian DS18 Warranty
- Peace of Mind Purchase Guarantee
- 4-Channel Class-D Amplifier
- 2 ~ 4 Ohm Stable
- 4 x 100 Watts @ 4 Ohm
- Compact Design
Overview
DS18's SXE Amplifier Series stands as a testament to innovation, crafted for enthusiasts yearning to elevate their vehicle's audio quality to unprecedented heights. Leading this charge is the SXE-2000.4D, poised to unleash the true potential of your vehicle's speakers, enriching every note of your cherished tracks.
The SXE-2000.4D empowers you to sculpt your audio landscape to perfection, featuring a selectable crossover and a multi-channel amplifier design that allows for precise customization. With every beat, melody, and lyric rendered with astonishing accuracy, you'll be transported into a world of sonic excellence tailored to your personal preferences. Compact in size, the SXE-2000.4D offers seamless installation in any vehicle, ensuring versatility for your custom audio setup and immersing you in a personalized soundstage that complements your unique style.
Powered by a Class D circuit design, the SXE-2000.4D seamlessly integrates into any vehicle's custom build without compromising on power. Brace yourself for an awe-inspiring performance, delivering a formidable 320W x 2 CH bridged at 4-ohms, 160W x 4 CH at 2-ohms, and 100W x 4 CH at 4-ohms. These power settings are guaranteed to inject newfound energy into any custom build, setting the stage for an unforgettable auditory experience.
Equipped with a range of electronic protections, including thermal protection to guard against overheating, over-load protection, and short circuit output protection, the SXE-2000.4D ensures both safety and reliability. With an 80℃ thermal protection feature, the amplifier maintains optimal operation even in the most demanding conditions. DS18 has meticulously considered every detail, ensuring a long-lasting and exceptional audio journey that exceeds expectations.
DS18 Car Audio - The Company
DS18 although a relative new comer to the US car audio market is already starting to make a name for itself by producing affordably priced car audio products that deliver well above average performance. With products such as full range and component speakers, high SPL subwoofers and amplifiers, there is a product to suit your requirements and more importantly, your budget. Great value is certainly something that we associate with DS18 products.
SKU
SXE-2000.4D
Total Watts (Peak)
2000W
RMS Power @ 4 Ohm
4 x 100W
RMS Power @ 2 Ohm
4 x 160W
RMS Power @ 1 Ohm
N/A
RMS Power @ 4 Ohm Bridge
2 x 320W
AUDIO
Frequency Response
10Hz-20KHz
Signal to Noise Ratio
90dB
Efficiency @ 4ohm
90%
Damping Factor
200
Input Impedance
20kΩ
Channel Separation
60dB
Total Harmonic Distortion (THD)
0.10%
Low Level Input Range
200mV-5V
High Level Input
No
Selectable X-Over
HPF/FULL/LPF
X-Over Filter Range
40HZ-2KHZ
Bass Boost Range
No
Bass Boost Frequency
No
Infrasonic Filter
No
Phase Selector
No
FEATURES
Amplifier Class
Digital (D)
Amplifier Type
Stereo Full Range
Number of Channels
4
Minimum Impedance
2 Ohm Stereo / 4 Ohm Bridge
Led Indicator
Power/Protect/Clip
Power Input Terminal Size
4Ga
Fuse Size
1 x 40A (40A)
Remote Level Control
No
Cooling Fan
No
Voltmeter
No
Thermal Protection
Yes
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (16.5v)
Clipping Protection
Yes
Body Color / Finish
Red / Black Brushed Aluminum
MEASUREMENT
Overall Length
6.4" / 164.3mm
Overall Wide
5.5" / 140mm
Overall Height
1.8" / 48mm
Heatsink Length
5" / 127mm
- DS18 SXE-2000.4D 4-Channel 2000W Amplifier - Red
Peace of Mind Purchase Guarantee
This product is supplied via DS18 Australia and enjoys the FULL benefits of the 'Genuine DS18 Australian Warranty'. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). In the event that this product should fail please contact our service department or you can speak with DS18 Australia directly.
We are a FULLY AUTHORISED Australian retailer for DS18 Australia.
