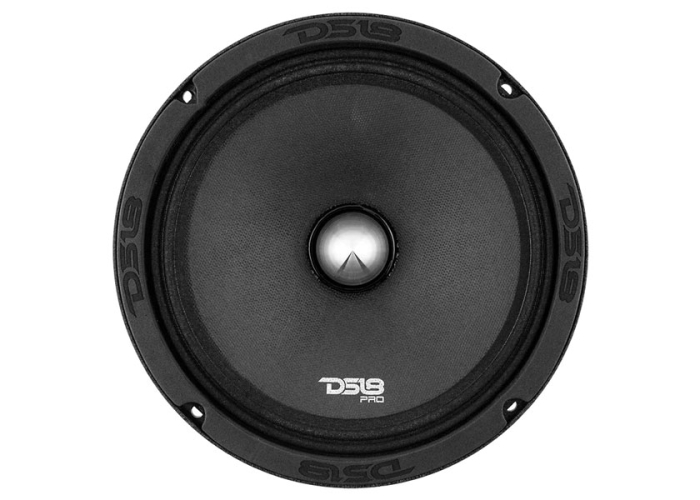

DS18 PRO 500W 8" Neodymium Speaker - Single

DS18 PRO 8" Neodymium 500W Loudspeaker - Single
(DS18 PRO-FR8NEO)

We Think You Should Know

• Australian DS18 Warranty
• Purchase Guarantee (see T&Cs)
• Sold in single units
• Designed in the U.S.A
• 8" Full Range Bullet Speaker
• 500W Peak / 250W RMS Power
• 4 ohms Impedance
• Neodymium Magnet
• 99dB sensitivity
• Includes Grill

Overview

8” Neodymium Full-Range Loudspeaker With Bullet and Grill 500W 4-Ohm

Unleash the power of your music with the DS18 PRO-FR8NEO - an 8" neodymium full-range loudspeaker that is guaranteed to bring your music to life! With a staggering 500 watts of maximum power, this speaker delivers unparalleled volume and clarity that will transport you to a new dimension of sound.

The PRO-FR8NEO's high-powered neodymium magnet generates a much greater action force in the voice coil, providing a higher magnetic flux density in the air gap. As the strongest permanent magnet of all commercially available speakers, neodymium magnets are the perfect choice for those seeking simple perfection in sound.

Designed with DS18's signature attention to detail, the PRO-FR8NEO boasts a beautiful, tooled aluminium brushed accented basket and high-quality terminals that complement its sleek and modern design.

Additionally, the Silver Bullet Tweeter integrated into this speaker’s design widens the higher range of frequencies it reproduces bringing you a fuller range of frequencies to blast. With a frequency response of 160Hz – 12.5KHz, an impedance of 4 Ohms, and a sensitivity of 99 dB, the PRO-FR8NEO provides crystal-clear audio with no distortion. Its cloth edge surround, aluminium frame, and non-pressed paper cone ensure the highest quality materials for the best possible sound. Don’t settle for less, get the best with the PRO-FR8NEO.

DS18 Car Audio - The Company

DS18 is a leading electronics manufacturer specializing in Mobile, Marine and Home Electronic equipment, headquartered in Miami, FL, USA. DS18 was created and developed by a team of young and determined professionals who understand the needs of today’s audio industry—offering several series of amplifiers, speakers, subwoofers, tweeters, midranges, cables, accessories, component sets and much more DS18 guarantees to satisfy customers seeking a wide assortment of products.

SPECS

SKU
PRO-FR8NEO
Nominal Diameter
8"
Nominal Impedance
4 ohms
RMS Power Handing
250 Watts
Maximum Power Handing
500 Watts
Sensitivity (1w/1m)
99 dB
Frequency Response
160 Hz-12.5KHz
Recommended Hi Pass Crossover
180 Hz

SPECS

Voice Coil Diameter
1.5" (38.6 mm)
Voice Coil Former Material
Kapton
Winding Material
KCCAW
Basket Material
Aluminium
Magnet Weight

THIELE & SMALL PARAMETERS

Vas
7.872 Ltr
Xmax
6.8 mm
Fs
128.77 Hz
Qms
3.356
Qes
0.376
Qts
0.338
Re
3.2 ohms

MEASUREMENTS

Overall Diameter
210 mm (8.26")
Front Mount Baffle Cutout
180 mm (7.08")
Mounting Depth
75.5 mm (2.97")
Overall Depth
82.7 mm (3.25")
Product Weight
4 lbs
Product Dimensions
9.5 x 9.5 x 3.75

• 1 x DS18 PRO 500W 8" Neodymium Loudspeaker - Single
• Sold in single units (not pairs)
