DS18 PRO 500W 6x9" Neodymium Speaker - Single

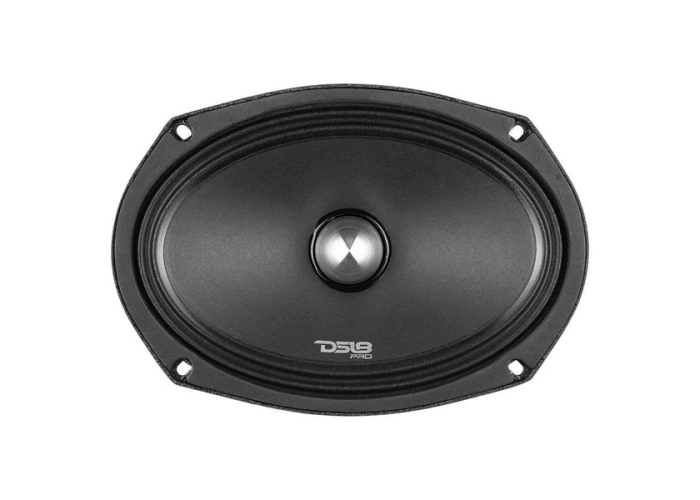

DS18 PRO 6x9" Neodymium 500W Loudspeaker - Single
(DS18 PRO-FR69NEO)

We Think You Should Know

• Australian DS18 Warranty
• Purchase Guarantee (see T&Cs)
• Sold in single units
• Designed in the U.S.A
• 6x9" Full Range Bullet Speaker
• 500W Peak / 250W RMS Power
• 4 ohms Impedance
• Neodymium Magnet
• 98dB sensitivity
• Includes Grill

Overview

6x9" Neodymium Full-Range Loudspeaker With Bullet and Grill 500W 4-Ohm

Unleash the power of your music with the DS18 PRO-FR69NEO – a 6x9" neodymium full-range loudspeaker that is guaranteed to bring your music to life! With a staggering 500 watts of maximum power, this speaker delivers unparalleled volume and clarity that will transport you to a new dimension of sound.

The PRO-FR69NEO's high-powered neodymium magnet generates a much greater action force in the voice coil, providing a higher magnetic flux density in the air gap. As the strongest permanent magnet of all commercially available speakers, neodymium magnets are the perfect choice for those seeking simple perfection in sound.

Designed with DS18's signature attention to detail, the PRO-F69NEO boasts a beautiful, tooled aluminium brushed accented basket and high-quality terminals that complement its sleek and modern design.

Additionally, the Silver Bullet Tweeter integrated in this speaker’s design widens the higher range of frequencies it reproduces bringing you a fuller range of frequencies to blast. With a frequency response of 100Hz – 9KHz, an impedance of 4 Ohms, and a sensitivity of 98 dB, the PRO-FR69NEO provides crystal-clear audio with no distortion. Its cloth edge surround, aluminium frame, and non-pressed paper cone ensure the highest quality materials for the best possible sound. Don’t settle for less, get the best with the PRO-FR69NEO.

DS18 Car Audio - The Company

DS18 is a leading electronics manufacturer specializing in Mobile, Marine and Home Electronic equipment, headquartered in Miami, FL, USA. DS18 was created and developed by a team of young and determined professionals who understand the needs of today’s audio industry—offering several series of amplifiers, speakers, subwoofers, tweeters, midranges, cables, accessories, component sets and much more DS18 guarantees to satisfy customers seeking a wide assortment of products.

SPECS

SKU
PRO-FR69NEO
Nominal Diameter
6x9
Nominal Impedance
4 ohms
RMS Power Handing
250 W
Maximum Power Handing
500
Sensitivity (1w/1m)
98dB
Frequency Response
100 Hz-9KHz
Recommended Hi Pass Crossover
120Hz

SPECS

Voice Coil Diameter
38.6mm/1.5"
Voice Coil Former Material
Kapton
Winding Material
CCAW
Basket Material
Aluminium
Magnet Weight
2.8 Oz

THIELE & SMALL PARAMETERS

Vas
17.94Ltr
Xmax
6.7mm
Fs
109.95
Qms
7.471
Qes
0.297
Qts
0.286
Re
3.4 ohms

MEASUREMENTS

Overall Diameter
9.44X6.57" / 240X167 mm
Front Mount Baffle Cutout
8.74X5.97" / 222X152 mm
Mounting Depth
2.874" / 73 mm
Overall Depth
3.31" / 84mm
Product Weight
4.5 lbs
Product Dimensions
10.75 x 8 x 5

• 1 x DS18 PRO 6x9" Neodymium 500W Loudspeaker
• Sold in single units (not pairs)
