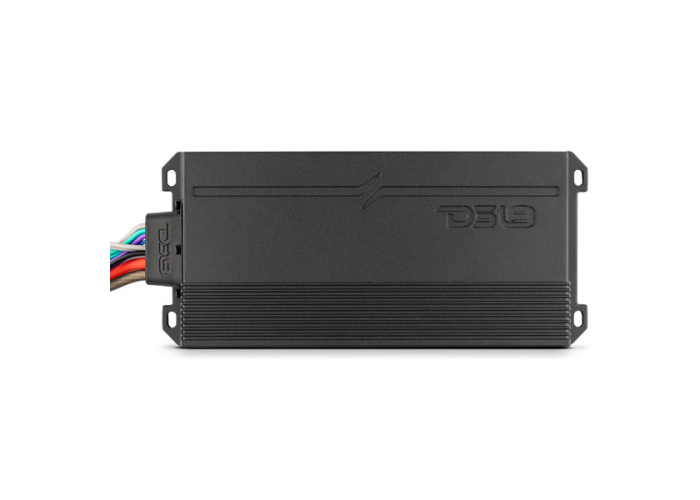

DS18 NVY 1440W 4-Channel IPX7 Marine Amplifier
DS18 NVY 1440W 4-Channel IPX7 Marine Amplifier
(DS18 NVYIPX74)
We Think You Should Know
- Australian DS18 Warranty
- Purchase Guarantee (see T&Cs)
- 4-Channel Class D Marine Amplifier
- IP67 Water-resistant Rating
- 4 x 200W Peak Power
- 4 x 120W RMS Power
- Built-In Crossover
Overview
DS18’s NVY-IPX7.4 stands as a powerhouse, elevating your audio experience whether you're navigating open waters or tackling off-road terrains.
Boasting an impressive IPX7 waterproof rating, the NVY-IPX7.4 is built to endure submersion in water up to 1 meter deep for 30 minutes, making it the perfect companion for marine adventures. Its rugged construction ensures durability and shields against UV rays, salt, and fog, providing worry-free music enjoyment in any conditions.
Take command of your sound with the 2 CH/4 CH input selector, allowing precise power allocation to each speaker for a customized and balanced audio performance. The HYDRO NVY-IPX7.4 delivers a maximum output of 350W x 2 CH bridged at 4-Ohms, 200W x 4 CH at 2-Ohms, and 120W x 4 CH at 4-Ohms, ensuring robust and clear sound reproduction.
Installation is a breeze with the Direct Power harness design, enabling you to place the NVY-IPX7.4 anywhere on your marine vehicle for optimal sound distribution. Prioritizing safety, the included marine-grade fuse and fuse holder provide ultimate protection against electrical faults, ensuring reliable performance during your marine journeys.
DS18 - The Brand
DS18 manufactures high-quality car audio products, including speakers, amplifiers, subwoofers, and more. The company was founded in 2009 and has since grown to become a leading brand in the car audio industry, known for its innovative designs and commitment to quality.
GENERAL SPECIFICATIONS
SKU
NVY-IPX7.4
Total Watts (Peak)
1440 Watts
RMS Power @ 4 ohm
4 x 120 Watts
RMS Power @ 2 ohm
4 x 200 Watts
RMS Power @ 4 ohm Bridge
2 x 350 Watts
AUDIO
Frequency Response
20Hz-20KHz
Signal to Noise Ratio 1W @ 4Ω
>90dB
Efficiency @ 4 ohm
94%
Input Impedance
20KΩ ohms
Channel Separation
>-70 dB
Total Harmonic Distortion (THD)
<0.1 %
Low Level Input Range
270mV - 5.6V
Selectable X-Over
HPF/FULL/LPF
X-Over Filter Range
50Hz-4KHz
FEATURES 1
Amplifier Class
Digital
Amplifier Type
Full Range Digital Marine Amplifier
Number of Channels
4
Minimum Impedance
2 OHM / Ch (4 OHM Bridge)
Led Indicator
Protection (Red) | Power (Blue)
Power Input Size
8 Ga
Fuse
2 x 40A
FEATURES 2
Thermal Protection
Yes
Over-Load Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes / (9.5-16V)
Body Color | Finish
Black Anodize
2CH | 4CH Input Selector
Yes
Waterproof Rating
IPX7
UV / Salt Fog Protection
Yes
Marine Grade Fuse Holder
Yes
EXTRA FEATURES
2Ch / 4Ch Input Selector
Yes
Waterproof Rating
IP67
UV / Salt Fog Protection
Yes
Power Direct Harness Design
Yes
Surface Mount Component Technology
Yes
MEASUREMENT
Overall Length
10" / 253mm
Overall Wide
.4.5" / 116mm
Overall Height
1.9" / 48.5mm
Heatsink Length
8.5" / 216mm
Gross Single Unit Weight
1.8Kg
Product Weight
4.5 lbs
Product Dimensions
14.5 x 6.25 x 2.75
M/C Weight
24.5 lbs
M/C Dimensions
15 x 15 x 7.25
- DS18 NVY 1440W 4-Channel IPX7 Marine Amplifier
Peace of Mind Purchase Guarantee
This product is supplied via DS18 Australia and enjoys the FULL benefits of the 'Genuine DS18 Australian Warranty'. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). In the event that this product should fail please contact our service department or you can speak with DS18 Australia directly.
We are a FULLY AUTHORISED Australian retailer for DS18 Australia.
