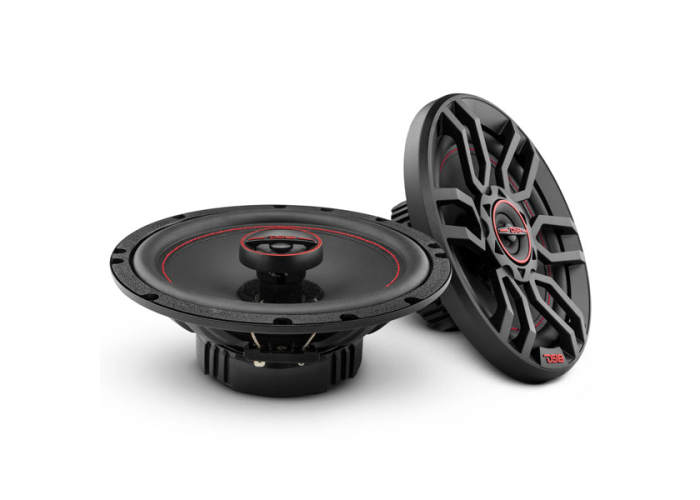

DS18 GEN-X 6.5" 150W 2-Way Coaxial Speakers

DS18 GEN-X 6.5" 4Ω 150W 2-Way Coaxial Speakers
(DS18 G6.5XI)

We Think You Should Know

• Australian DS18 Warranty
• Purchase Guarantee (see T&Cs)
• 6.5" 2-Way Coaxial Car Speakers
• 150W Peak / 50W RMS Power
• Ferrite & Neodymium Magnets
• Paper Cone
• Mylar Balanced Dome Tweeters
• Sensitivity: 86dB
• Freq Resp: 35Hz-20KHz
• Includes Grilles

Overview

2-Way Coaxial Speakers 150 Watts 4-Ohm

The power, clarity, and range everyone who likes it LOUD loves about the GEN-X series returns in a speaker equipped with an extremely durable steel basket to outlast any vehicle it’s installed in. Making it the perfect choice for anyone looking for a long-lasting and reliable speaker. This is particularly important in the case of car audio systems, as the constant vibrations and movement of a car can cause damage to less robust speakers.

The DS18 G6.5Xi was made for amplifiers but can be used in factory settings with 4-ohm factory amplifiers in most cases for great sound and clarity over factory OEM speakers.

The G6.5Xi is notable for its 2-way design consisting of a woofer, and a tweeter. The different drivers are each responsible for reproducing sounds within a specific frequency range, allowing for a more accurate and full-sounding audio experience. The G6.5Xi's 2-way design also ensures that the speaker does not require a large amount of power to operate, making it suitable for use with a variety of amplifiers.

The Mylar Balanced Dome Tweeters included in this coaxial help it achieve the highest range of frequencies possible, while the speaker itself reaches frequencies as low as 35Hz.

These speakers get loud extremely easily with a MAX Power Handling of 150W and RMS Power Handling of 50W.

Whether you’re turning up the volume or appreciating the nuances in your favourite tracks, the G6.5Xi will deliver. Order yours today and take the first step towards audio perfection on the road.

DS18 Car Audio - The Company

DS18 is a leading electronics manufacturer specializing in Mobile, Marine and Home Electronic equipment, headquartered in Miami, FL, USA. DS18 was created and developed by a team of young and determined professionals who understand the needs of today’s audio industry—offering several series of amplifiers, speakers, subwoofers, tweeters, midranges, cables, accessories, component sets and much more DS18 guarantees to satisfy customers seeking a wide assortment of products.

SPECS

SKU
G6.5XI
Nominal Diameter
6.5" / 165mm
Nominal Impedance
4 Ohms
RMS Power Handling
50W
Maximum Power Handling
150W
Sensitivity (1w/1m)
86dB
Frequency Response
35Hz-20KHz
Recommended HI Pass Crossover
60Hz
Number of ways
2
Pair or single
Pair
Grill Included
Yes

WOOFER SPECS

Voice Coil Diameter
1" / 25.5mm
Voice Coil Former Material
ASV
Winding Material
EISV
Cone Material
Paper
Surround Material
Rubber
Basket Material
Steel
Basket Colour/Finish
Black Matte
Magnet Material
Barium Ferrite
Magnet Weight
9.87oz / 280g

THIELE & SMALL PARAMETERS

Equivalent Volume Vas
9.47L / 0.33ft3
Excursion (one way) Xmax
2.7mm
Free Air Resonance Fs
76Hz
Mechanical Factor Qms
4.6
Electrical Factor Qes
2
Total Factor Qts
1.4
Mechanical Mass Mms
11.4g
Mechanical Compliance Cms
350mm/N
Bl Factor Bl
3.2
Voice Coil Inductance Le
172uH
Cone Area Sd
136.8cm2
DC Resistance Re
3.7 Ohms
Mechanical Mass w/o air Mmd
10.5g

TWEETER SPECS

Nominal Diameter
1" / 25.5mm
Voice Coil Diameter
0.5" / 13.25mm
Voice Coil Former Material
ASV
Winding Material
EISVM
Diaphragm Material
Mylar
Magnet Material
Neodymium
Magnet Weight
1.8g

SPEAKER MEASUREMENTS

Overall Diameter
6.5" / 165mm
Overall Depth
2.65" / 67.3mm
Overall Diameter (With Grill)
7" / 179mm
Overall Depth (With Grill)
3" / 76.4mm
Front Mount Baffle Cutout
5.6" / 142mm
Mounting Depth
2.15" / 54.5mm
Motor Diameter
3.4" / 86mm
Tweeter Protrusion
0.5" / 12.8mm
