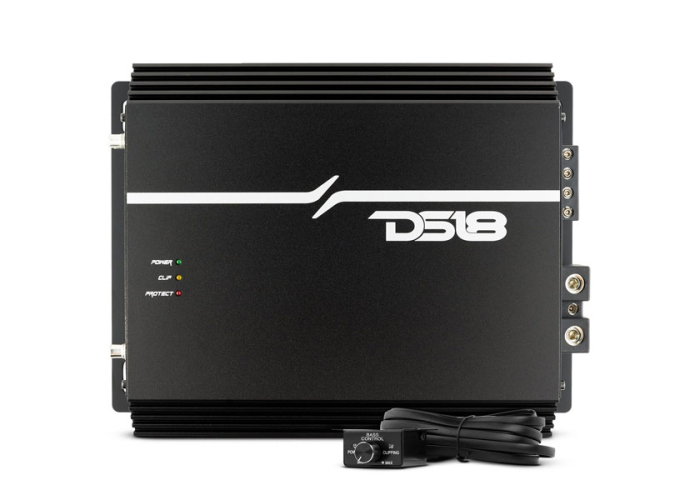

DS18 EXL-P1500X1D 3000W 1-Channel D Amplifier

DS18 EXL-P1500X1D 1-Channel Class D Amplifier
(DS18 EXL-P1500X1D)

We Think You Should Know

• Australian DS18 Warranty
• Purchase Guarantee (see T&Cs)
• 1-Channel Subwoofer Monoblock
• Class D Amplifier
• 1 ~ 4 Ohm Stable
• 1 x 650W RMS Power - 4Ω
• 1 x 1000W RMS Power - 2Ω
• 1 x 1500W RMS Power - 1Ω
• Remote Level Control
• LED Indicator
• LPF Fixed
• Clip/Protection Indicator
• Made in Korea

Overview

1 Channels Class D Car Amplifier – RMS Power @ 1 Ohm 1500W x 1CH – Made in Korea

From Korea with Love comes DS18’s EXL-P1500X1D, a true marvel of car audio engineering. What truly sets this amplifier apart is its optimized Korean circuitry, thoroughly crafted with premium components. The result? Mind-blowing power levels that will leave your subwoofers trembling in awe. The sleek design is not just about aesthetics; it houses a strong heatsink casing and thermal protection circuitry. With this advanced technology at its core, the EXL-P1500X1D maintains an optimal temperature, ensuring longevity and efficiency that goes beyond the ordinary.

But it doesn't stop there. The EXL-P1500X1D is your gateway to audio perfection. Equipped with a bass knob and precise filters, you have effortless control over every frequency. Fine-tune the signal to suit your preferences, and with the power and clipping indicator, monitor your system's performance as you cruise along the open road. DS18’s EXL-P1500X1D dares you to create the soundstage of your dreams while immersing yourself in the journey. With large power and ground 4 AWG inputs, along with 8 AWG speaker input terminals, this amplifier is built to withstand the rigours of the road. To ensure optimal operation, we recommend a 190A inline fuse, providing you with peace of mind and uninterrupted performance.

Prepare for pure power output as the DS18 EXL-P1500X1D delivers 1500W x 1CH RMS at 1-Ohm, 1000W x 1CH RMS at 2-Ohm, 650W x 1CH RMS at 4-Ohm. The raw power emanating from the EXL-P1500X1D will push your speakers past their limits.

DS18 - The Brand

DS18 manufactures high-quality car audio products, including speakers, amplifiers, subwoofers, and more. The company was founded in 2009 and has since grown to become a leading brand in the car audio industry, known for its innovative designs and commitment to quality.

SPECS

SKU
EXL-P1500X1D
RMS Power @ 4 Ohm
650W x 1 CH
RMS Power @ 2 Ohm
1000W x 1 CH
RMS Power @ 1 Ohm
1500W x 1 CH
Frequency Response
15Hz-250Hz
Signal/Noise Ratio
>98dB
Efficiency @ 4 Ohm
>85%
Damping Factor
250
THD %
<0.02%
Low Level Input Range
200MV-6V
Selectable X-Over
LPF Fixed

X-Over Filter Range
35Hz - 250Hz
Bass Boost Range
0-+9dB
Bass Boost Frequency
30Hz - 60Hz
Infrasonic Filter
10Hz - 30Hz
Phase Selector
0-180
Class
D (Digital)
Amplifier Type
Monoblock Subwoofer
Channels
1 CH
Minimum Impedance
1 Ohm
Led Indicator
PWR / CLIP / PROTECT
Power Input Size
0 AWG

Fuse Rating
190 A
Remote Level Control
Yes - Dash Mount
Cooling Fan
No
Thermal Protection
Yes >75°C / 167°F
Over-Load Protection
Yes
Dc Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes
Clipping Protection
Yes
Body Colour / Finish
Black Aluminium
Dimensions L x W x H (Inches)
11.5 x 8.77 x 2.67”

• DS18 EXL-P1500X1D 1-Channel Class D Amplifier
