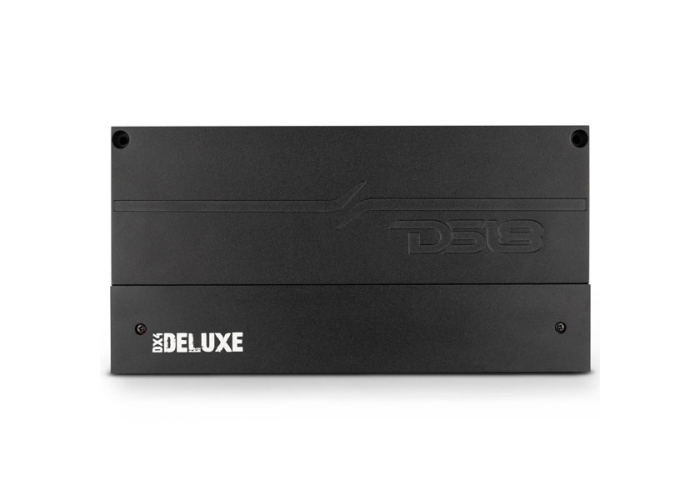

DS18 DX4 3000W 4-Channel Class D Amplifier

DS18 DX4 3000W 4-Channel Class D Amplifier
(DS18 DX4)

We Think You Should Know

• Australian DS18 Warranty
• Purchase Guarantee (see T&Cs)
• 4-Channel Full Range
• Class D Amplifier
• 3000W Peak Power
• 2 ~ 4 Ohm Stable
• 4 x 120W RMS Power - 4Ω
• 4 x 250W RMS Power - 2Ω
• LED Indicator
• Selectable X-Over
• Built-In Crossover
• Compact Design

Overview

Deluxe Compact Full-Range Class D Advance Technology 4-Channel Amplifier 3000W

Introducing DS18’s DX4, our Full-Range Digital Amplifier designed to deliver an untapped level of power and performance. DS18’s DX4 defies expectations by packing a mind-blowing 3000W of power into a remarkably small package. Its compact design opens up a whole new realm of possibilities, allowing you to install it in spaces that were once thought impossible. Whether it's fitting snugly in motorcycle fairings or tight, confined spots, this amplifier effortlessly finds its place, giving you the freedom to unleash your audio dreams without any compromises.

But don't be fooled by its small size; the DX4 is a force to be reckoned with. Its components are flawlessly integrated into a cutting-edge printed circuit board (PCB), resulting in unrivalled efficiency even at low voltages. This amplifier is equipped with surge protection features like speaker overload, short circuit, and low input voltage protection, ensuring that it stands as a fortress of unyielding power. It maximizes the potential of your speakers, delivering sound that reverberates with crystal-clear clarity and unwavering precision.

When it comes to versatility, the DX4 takes the crown; offering high pass and low pass filter options, granting you complete control over your audio frequencies. With this amplifier, you can play mids, highs, and lows with unparalleled accuracy, leaving no room for compromises.
The DX4 is all about flexibility, making it a breeze to configure in 2, 3, or 4 channel setups with a simple switch. Whether you're using an RCA signal, offset voltage from speaker inputs, or a 12v remote, this amplifier effortlessly adapts to your specific needs. It's the epitome of convenience and efficiency, daring you to embrace the power of your new equipment without sacrificing any valuable space.

DS18 - The Brand

DS18 manufactures high-quality car audio products, including speakers, amplifiers, subwoofers, and more. The company was founded in 2009 and has since grown to become a leading brand in the car audio industry, known for its innovative designs and commitment to quality.

SPECS

SKU
DX4
Total Watts (Peak)
3000W
RMS Power @ 4 ohm
150W x 4
RMS Power @ 2 ohm
250W x 4
RMS Power @ 4 ohm Bridge
480W x 2

AUDIO

Frequency Response
10Hz - 20KHz
Signal to Noise Ratio
>98 dB
Efficiency @ 4ohm
110%
Damping Factor
>400
Input Impedance
N/A
Channel Separation
68 dB
Total Harmonic Distortion (THD)
0.02%
Low Level Input Range
350mV - 5V
High Level Input
Yes
Selectable X-Over
HPF/Full/BPF
X-Over Filter Range
20Hz-4Khz (HPF) / 50Hz-5Khz (LPF)
X-Over Slope (cut)
24 dB/Oct
Bass Boost Range
N/A
Bass Boost Frequency
N/A
Infrasonic Filter
N/A
Phase Selector
N/A

FEATURES

Amplifier Class
Digital
Amplifier Type
Stereo Full Range
Number of Channels
4
Minimum Impedance
2 ohm
Led Indicator
Power / Protection
Power Input Terminal Size
4 Ga
Recommended Fuse Size
100A
Remote Level Control
No
Cooling Fan
No
Voltmeter
No
Thermal Protection
Yes
Over-Load Protection
Yes
DC Output Protection
No
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (10-15v)
Clipping Protection
No
Body Color / Finish
Black Sandblasted

MEASUREMENT

Overall Length
8.2" / 210mm
Overall Wide
4.3" / 109mm
Overall Height
1.4" / 35mm
Gross Single Unit Weight
3.5Lb / 1.6Kg
Shipping Dimension L x W x H (Inches)
10.75 x 5.75 x 3

EXTRA FEATURES

Auto Turn-on mode selectable
Yes (Signal/Offset/Rem)
Input Channel Selectable
Yes (3Ch/2Ch/4Ch)
State of the art 4-layer Micro Circuit board technology
Yes
Very high efficiency Digital circuit design
Yes
