DS18 DX3 6.5" 580W 3-Way Component Speakers

DS18 DX3 6.5" 580W 3-Way Component Speakers
(DS18 DX3)

We Think You Should Know

• Australian DS18 Warranty
• Purchase Guarantee (see T&Cs)
• 6.5" 3-Way Component - 4Ω
• 580W Peak / 290W RMS Power
• Ferrite & Neodymium Magnets
• Carbon Fibre Cone
• Neodymium Tweeter
• Aluminium Basket
• Includes Crossovers

Overview

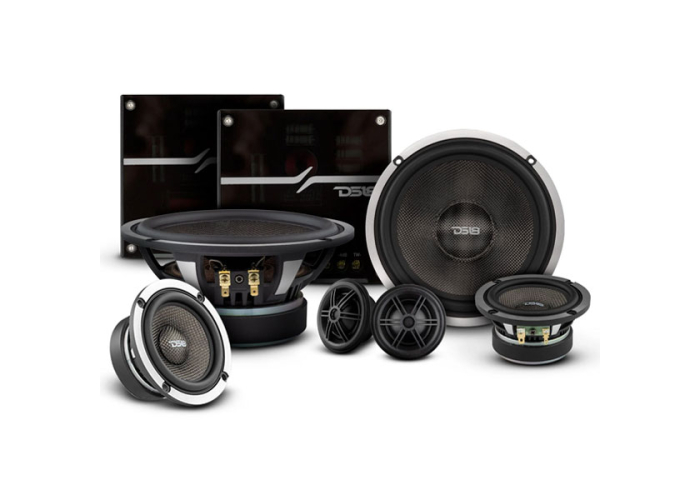

Experience impeccable audio performance with DS18’s DX3 3-way premium quality car component speaker system. DS18’s DX3 set is the ultimate audio solution including: two DX3W 6.5" woofers; two DX3T neodymium tweeters; two DX3M 3.5-inch midranges; and the DX3C, a high-quality crossover network.

The DX3W was designed to deliver deep, powerful bass with crystal clear clarity and heightened definition. The carbon fibre cone gives these speakers heavy-duty durability and accurate audio signal response. With a power handling capacity of up to 100W AES and frequency response as high as 12KHz and as low as 50Hz, these woofers are more than capable of reproducing any track from any genre.

The DX3T provides detailed high frequencies without the harshness of distortion. Its high 90dB sensitivity allows this tweeter to produce loud and clear sound even with lower power input. These easy-to-install tweeters can be mounted in a variety of locations, such as your car’s dashboard or door panels.

The DX3M midranges produce the clearest midrange frequencies and work in perfect harmony with the woofers and tweeters to provide full, balanced sound that covers the entire range of frequencies.

The DX3C separates the audio signal into three frequency bands - low, midrange, and high - and sends them to the woofers, midrange, and tweeters, respectively. This crossover network is designed to ensure the proper distribution of sound frequencies to the appropriate drivers, resulting in a full, balanced sound with exceptional clarity and accuracy.

The DS18 DX3 speaker system provides a listening experience that is both engaging and dynamic, with an excellent balance of clarity, detail, and power. Whether you're listening to your favourite music or enjoying a movie on a long road trip, this speaker system will place you in the middle of the action.

DS18 - The Brand

DS18 manufactures high-quality car audio products, including speakers, amplifiers, subwoofers, and more. The company was founded in 2009 and has since grown to become a leading brand in the car audio industry, known for its innovative designs and commitment to quality.

DX2W WOOFER SPECS

Diameter
6.5"
Peak Power Handling
400 Watts
Program Power Handling
200 Watts
AES Power Handling
100 Watts
Frequency Response
50Hz-12Khz
Voice Coil Diameter
1.2”
Impedance
4 Ohm
Sensitivity (1W/1M)
89dB
Magnet Weight
20.2 Oz
Magnet Material
Ferrite
Mounting Depth
2.85”

DX3T TWEETER SPECS

Diameter
1.18”
Peak Power Handling
60 Watts
Program Power Handling
30 Watts
AES Power Handling
15 Watts
Frequency Response
800Hz-20Khz
Voice Coil Diameter
0.98”
Impedance
4 Ohm
Sensitivity (1W/1M)
90dB
Magnet Weight
14 Oz
Magnet Material
Neodymium
Mounting Depth
0.7”

DX3M MIDRANGE

Diameter
3.5”
Peak Power Handling
120 Watts
Program Power Handling
60 Watts
AES Power Handling
30 Watts
Frequency Response
85Hz-20Khz
Voice Coil Diameter
1”
Impedance
4 Ohm
Sensitivity (1W/1M)
89.4dB
Magnet Weight
5.5 Oz
Magnet Material
Ferrite
Mounting Depth
1.59”

DX3C CROSSOVER

Passive Crossover Ways
3 Ways
Frequency Crossover
800HZ (Mid) 3.8 Khz (Tw)
Power Handling
300 Watts
Cut Off Slope
6dB (Mid) 12dB (Tw)/ Oct
Tweeter Attenuation
(+/-) 3dB
