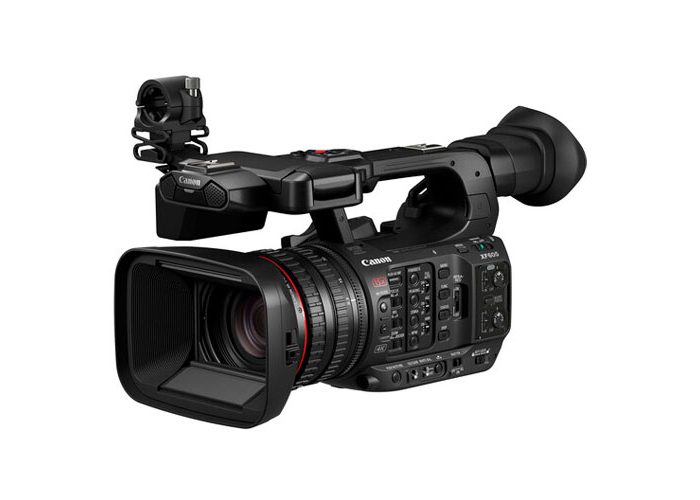

Canon XF605 4K HDR Pro Camcorder
Check out the Canon XF605 4K HDR Pro Camcorder's Key Features
(Canon XF605)
- Genuine Australian Canon 1 Year Warranty
- Peace of Mind Purchase Guarantee (bottom of page)
- 8.29MP Super 35mm 1'' CMOS Sensor with 4K Video Recording
- Digic DV7 Processor
- Up to 10 bit 4K 60p 4:2:2 Recording
- Portable Design with Durability
Overview
The XF605 is perfect for the single operator with a compact design and enhanced connectivity making it ideal for media, sports and broadcast journalism.
Features
4K 4:2:2: 10bit HDR Image Quality
Employing a 1.0-inch CMOS sensor and a DIGIC DV7 image processor, the XF605 enables users to capture high-quality 4K/60p/4:2:2/10-bit HDR video.
Simultaneous Recording
Flexible simultaneous recording options in different formats, resolutions and colour sampling.
Oustanding Connectivity Enabling Efficient Workflows
Transfer recorded video data via cable or wirelessly to iOS devices and transfer to FTP servers at broadcast stations or other locations via the Canon Mobile File Transfer App.
The XF605 includes eye AF and head AF, as well as improved face detect AF, enabling more accurate and stable tracking of subjects.
Weighing 2kgs, the highly portable design that enables oustanding mobility and durability in a light weight package.
Canon Inc.
The Canon story began in the late 1930s in Tokyo, Japan and the company has been specializing in the manufacture of imaging and optical products ever since. The company has continued to grow into one of the leading worldwide specialists in digital cameras and camcorders. With such a rich history of producing quality imaging products, you know you can trust Canon for all your photographic and filming needs. We stock a huge range of Canon digital cameras like DSLR, compact and mirrorless as well as lenses, video cameras, cases and accessories.
| Sensor Resolution | Actual: 13.4 Megapixel (4268 x 3148) Effective: 8.29 Megapixel (3840 x 2160) |
| Sensor Type | 1" CMOS Sensor |
| Image Stabilization | Optical in Integrated Lens Digital |
| Built-In ND Filter | Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters |
| Shutter Type | Rolling Shutter |
| Shutter Speed | 1/4 to 1/2000 sec |
| Shutter Angle | 11 to 360° |
| Sensitivity | f/12 at 2000 lux |
| Minimum Illumination | 1.5 Lux at 1/30 Shutter Speed |
| White Balance | 2000 to 15,000K |
| Focal Length | 8.3 to 124.5mm (35mm Equivalent Focal Length: 25.5 to 382.5mm) |
| Optical Zoom Ratio | 15x |
| Max Digital Zoom | 30x ( in 1080p) |
| Maximum Aperture | f/2.8 |
| Minimum Aperture | f/4.5 |
| Optical Design | 18 Elements in 14 Groups |
| Minimum Focus Distance | Entire Zoom Range: 2.0' / 60.0 cm Wide: 0.4" / 1.0 cm |
| Filter Size | 58 mm |
| Control Rings | Focus Zoom Iris |
| Focus Control | Autofocus Manual Focus |
| Recording Modes | MXF/XF-AVC 4:2:2 10-Bit: 3840 x 2160p at 23.98/25/29.97/50/59.94 fps (160 to 410 Mb/s) 1920 x 1080p at 23.98/25/29.97/30/50/59.94/120 fps (50 to 310 Mb/s) 1920 x 1080i at 50/59.94 fps (50 to 160 Mb/s) 1280 x 720p at 23.98/25/29.97/30/50/59.94 fps H.265/MP4 4:2:2 10-Bit: 3840 x 2160p at 23.98/25/29.97/50/59.94 fps (135 to 225 Mb/s) 1920 x 1080p at 23.98/25/29.97/50/59.94/120 fps (50 Mb/s) 1280 x 720p at 23.98/25/29.97/50/59.94 fps (12 Mb/s) H.265/MP4 4:2:0 10-Bit: 3840 x 2160p at 23.98/25/29.97/50/59.94 fps (100 to 170 Mb/s) 1920 x 1080p at 23.98/25/29.97/50/59.94 fps (35 Mb/s) 1280 x 720p at 23.98/25/29.97/50/59.94 fps (9 Mb/s) H.264/MP4 4:2:0 8-Bit: 3840 x 2160p at 23.98/25/29.97/50/59.94 fps (150 Mb/s) 1920 x 1080p at 23.98/25/29.97/50/59.94 fps (35 Mb/s) 1280 x 720p at 50/59.94 fps |
| Variable Frame Rates | to 120 fps |
| Gamma Curve | Canon Log 3, HDR-HLG |
| Audio Recording | 2-Channel 16-Bit 48 kHz AAC Audio 4-Channel 24-Bit 48 kHz LPCM Audio |
| Still Image Support | Not Specified by Manufacturer |
| IP Streaming | MPEG2: 1920 x 1080 to 3840 x 2160 at 25p, 29.97p, 50p, 59.94p (4.0 to 16.00 Mb/s) MPEG2: 1920 x 1080 to 1920 x 1080 at 50i, 59.94i (4.0 to 9.0 Mb/s) |
| Media/Memory Card Slot | Slot 1: SD/SDHC/SDXC Slot 2: SD/SDHC/SDXC |
| Video Connectors | 1 x HDMI (HDMI 2.0) Output 1 x BNC (12G-SDI) Output |
| Audio Connectors | 2 x 3-Pin XLR Input 1 x 1/8" / 3.5 mm Stereo Input 1 x 1/8" / 3.5 mm Stereo Headphone Output |
| Built-In Microphone Type | Stereo |
| Other I/O | 1 x USB Type-A Output 1 x USB Type-C 1 x BNC Genlock, Sync Input/Output 1 x BNC Timecode Input/Output 1 x 2.5 mm Control 1 x 8-Pin D-Sub Control 1 x RJ45 LAN Input/Output |
| Wireless Interfaces | 2.4 / 5 GHz MIMO Wi-Fi Video Output, Audio Output, Control |
| Size | 3.45" |
| Resolution | 2,760,000 Dot |
| Display Type | Articulating Touchscreen LCD |
| EVF | Attached |
| EVF Display Type | OLED |
| Screen Size | .36" |
| EVF Resolution | 1,770,000 Dots |
| Battery Type | Canon BP-A Series |
| Power Connectors | 1 x Barrel (24 VDC) Input |
| Power Consumption | 21.5 W |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 0 to 85% |
| Accessory Mount | 1 x Cold Shoe Mount 1 x Multi-Interface Shoe |
| Tripod Mounting Thread | 1/4"-20 Female 3/8"-16 Female |
| Built-In Light | Yes (Infrared) |
| Dimensions | 15.2 x 8.6 x 8.3" / 385 x 219 x 210 mm (With Protrusions) 13.1 x 6.8 x 6.6" / 333 x 173 x 168 mm (Without Protrusions) |
| Weight | 4.4 lb / 2010 g |
- Canon XF605 4K HDR Pro Camcorder
- Canon BP-A30 Battery Pack
- Canon CA-CP200L Compact AC Power Adapter
- Lens Cap
- Lens Hood
- Mic Holder
- Eye Cup
- Battery charger CG-A20
