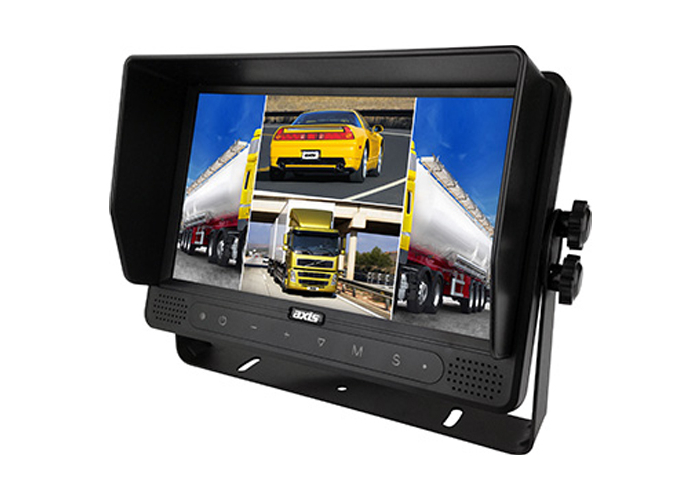

Axis JS1409Q 9" Rearview Quad Screen Monitor

Axis JS1409Q 9" Rearview Quad Screen Monitor

We think YOU should know

• Genuine Australian Axis Warranty
• Peace of Mind Purchase Guarantee (bottom of page)
• 9 Inch Digital Quad Monitor
• Resolution: 800 x 600 60Hz, 640 x 48060Hz
• Touch screen resistive touch - can recognize up, down, left, right side swipe
• Two-Point touch for channel switching
• Touch button control function
• Level 5 LCD manual backlighting adjustment with level 2 automatic adjustment
• Includes Robust bracket & Stand mount, Sun shield & IR Remote
• System format: NTSC/PAL
• Loudspeaker: can play audio signal from camera and external input
• Four cameras inputs and multi-channels output
• Picture image may be adjusted for Horizontal, Vertical, Mirror and Normal viewing

The JS1409Q is a Quad Screen Rearview LCD Monitor to suit up to 4 reversing cameras, it features a resistive touchscreen, NTSC,PAL formats, loudspeaker and short circuit protection.

Peace of Mind Purchase Guarantee & Declaration of Warranty
This product is supplied directly via Axis Australia and enjoys the FULL benefits of the 'Axis - Australian Warranty'. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). In the event that this product should fail please contact our service department to arrange service for this product or you also have the option of speaking with Axis Australia directly.

We are a FULLY AUTHORISED Australian retailer for Axis Australia.

This product will be shipped from our Sydney Warehouse and you are welcome to pick it up directly from our store in Sydney. This product is NOT DROP SHIPPED from overseas.

• 9 Inch Digital Quad Monitor
• Resolution: 800 x 600 (60Hz), 640 x 480(60Hz)
• Touch screen resistive touch - can recognize up, down, left, right side “swipe”
• Two-Point touch for channel switching
• Touch button control function
• Level 5 LCD manual backlighting adjustment with level 2 automatic adjustment
• Includes Robust bracket & Stand mount, Sun shield & IR Remote
• System format: NTSC/PAL
• Loudspeaker: can play audio signal from camera and external input
• Four cameras inputs and multi-channels output
• Picture image may be adjusted for Horizontal, Vertical, Mirror and Normal viewing
• Characters of the menu will not inverse when set to mirror image
• Camera image display mode: single, dual, triplex, quad, PIP functions, trefoil, and Y-split image available
• Five trigger lines: once a trigger line is activated, image automatically switches to its corresponding camera
• Trigger priority available
• Auto scan: scan channel and time can be set according to the user’s preference
• Reverse warning gauge
• Easy installation and convenient operation
• Suitable for vehicle and ship surveillance and indoor/outdoor security systems
• Automatic start-up when triggered under standby
• Automatic switch to trigger channel
• 4 AV inputs (22-Pin)
• 1 Video Output
• 1 Audio Output
• One VGA image input
• Operating voltage range: 10-32V
• Short-circuit protection
• Dimensions: 232W x 157H x 40D mm
• Suitable for vehicle and ship surveillance and indoor/outdoor security systems

• Axis JS1409Q 9" Rearview Quad Screen Monitor
• Remote Control
• Sun Shield
• Stand Mount
• Mounting Bracket
• User Manual
