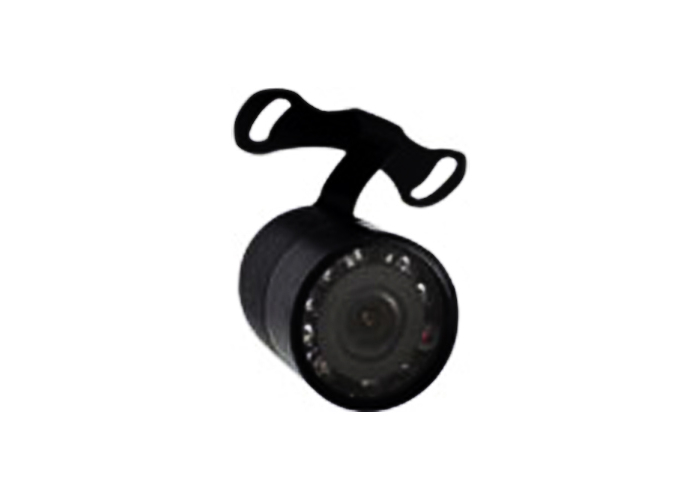

Axis C03 CMOS 1/4" Reverse Camera
Axis C03 CMOS 1/4" Reverse Camera
(Axis C03)
We Think You Should Know
- Australian Axis Warranty
- Purchase Guarantee (see T&Cs)
- Waterproof (IP67)
- PAL
- Low Light Performance
- 9 Auto Infrared LED
- 85° Viewing Angle
- 12V
- Normal/Mirror Image Selectable
Overview
The Axis C03 CMOS 1/4" Reverse Camera is a versatile and durable camera designed for use in various vehicle applications. Boasting an IP67 waterproof rating, it features night vision low light performance, 9 auto infrared LED, and an 85° viewing angle.
Waterproof (IP67): With an IP67 waterproof rating, the camera is well-suited for outdoor use and can withstand exposure to water and dust.
PAL: The camera uses the PAL video format, ensuring compatibility with PAL-compatible displays and recording devices.
Low Light Performance: Equipped with advanced technology for low light performance, the camera delivers clear and detailed images even in dimly lit environments.
9 Auto Infrared LED: The camera features nine auto infrared LEDs, enhancing visibility and providing reliable night vision capabilities.
85° Viewing Angle: With an 85° viewing angle, the camera offers a wide field of view, allowing for comprehensive coverage of the surrounding area.
12V: It operates on a 12V power supply, making it compatible with standard vehicle electrical systems.
Normal/Mirror Image Selectable: Users can select between normal and mirror image modes, providing flexibility in installation and usage.
Compact and easy to install, the Axis C03 is suitable for mounting on a vehicle's number plate, boot, or car panel. Its built-in IR LEDs ensure clear night vision capability, providing extra safety and peace of mind while driving.
Axis - The Company
With a focus on innovation in automotive and marine product solutions, Axis has been a prominent brand since 1996, providing a wide range of product categories including automotive entertainment, safety, and communications. From audio solutions for trucks and all-terrain vehicles to comprehensive reversing safety systems, Axis offers complete solutions for cars, caravans, RVs, boats, trucks, machinery, and commercial vehicles. Choose Axis for top-of-the-line products and solutions for all your automotive and marine needs.
| Model | C03 |
| Image Device | 1/4" CMOS |
| Pixels | 640 x 480 |
| Signal System | PAL |
| F/NO. | 2.0 |
| Sync System | Inner Sync |
| Horizontal Resolution | 380 TV Lines |
| Signal-to-Noise Ratio | Better than 45dB |
| Backlight Compensation | Auto |
| White Balance | Auto |
| AGC | Auto |
| Mirror Image Function | Mirror |
| Video Output | 1Vpp 75Ω |
| Field Angle | 110° ± 10° |
| IP Waterproof Rating | IP67 |
| Supply Voltage | 9-16V DC |
| Consumption Current | <=100mA |
| Working Temperature | -20°C - +60°C |
| Storage Temperature | -30°C - +70°C |
| Minimum Illumination | <1 lux |
| Infrared Wave Length | / |
| Infrared LED Quantity | / |
| Infrared LED Auto Switch On/Off | / |
- Axis C03 CMOS 1/4" Reverse Camera
