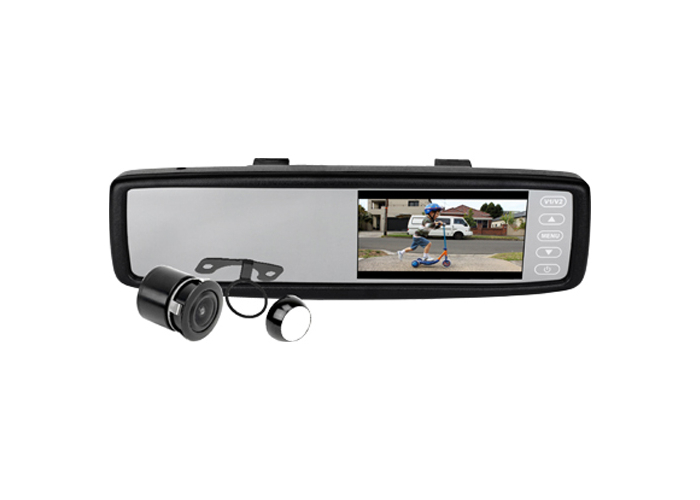

Axis JS043K Rearview Safety System

Axis JS043K Rearview Safety System
(Axis JS043K)

We Think You Should Know

• Genuine Australian Axis Warranty
• Peace of Mind Purchase Guarantee
• Super Slim Design
• Touch Screen Button Control
• Anti-Glare Multi Layered Mirror
• PAL/NTSC Auto Switch
• 16:9 Widescreen
• 480 x 272 Resolution
• 2 x AV Inputs for Camera or Multimedia/Navigation
• 350CD/M2 Brightness
• 1/4" CMOS Camera
• Mirror Image
• Dual Mounting Heads for Universal Camera Installation
• 12 Volt

Overview

The Axis JS043K rear-view system discreetly clips over the existing mirror of the vehicle and automatically activates the mini camera when reverse gear is selected.

This provides a clear image for the driver and protects children, pedestrians, etc. from injury and avoids costly repairs for dents and other damage when reversing. A second AV input allows for a second camera or multimedia/ navigation/ DVD input.

Axis - The Company

With a focus on innovation in automotive and marine product solutions, Axis has been a prominent brand since 1996, providing a wide range of product categories including automotive entertainment, safety, and communications. From audio solutions for trucks and all-terrain vehicles to comprehensive reversing safety systems, Axis offers complete solutions for cars, caravans, RVs, boats, trucks, machinery, and commercial vehicles. Choose Axis for top-of-the-line products and solutions for all your automotive and marine needs.

JS043 Monitor

• TFT Panel: 4.3” New TFT LCD (Digital)
  Super Slim Design
  Touch Screen Button Control
• Mirror: Anti-Glare Multi-Layered Glass
• Format: 16:9 Widescreen
• Video System: Pal / Ntsc Auto Switching
• Resolution: 480 X 272
• Brightness: 350CD/M2
• Video Inputs: AV1-2nd Camera or Multimedia/Nav, AV2-Camera-In
• Operating Temp: -10 ~ 60°C
• Power Consumption: 1.5W (0.4W Standby)
• Installation: Clip Over Original Factory Mirror

C20A Camera

• Lens: 1/4” Cmos Imaging Clip
  P3030 Quality Sensor Chip
• Viewing Angle: 170° Wide View
• Protection: IP66 - Water & Dust Ingress
• Video System: Pal
• Image: Mirror Image
• Illumination: 0.5 Lux Minimum
• Power Source: 12 Volt DC
• Installation: Surface Mount or Insert
  1. Number Plate, Boot Lid or other Surface
  2. Insert to Bumper (Hole Cutter Included)
• Cables: 6M RCA~RCA Video Cable

The Axis JS043K Reverse Camera Kit includes:

• Rearview Mirror Monitor/ Camera System
• 1/4 CMOS Image Sensor Camera
• Dual Mounting Heads for Universal Camera
