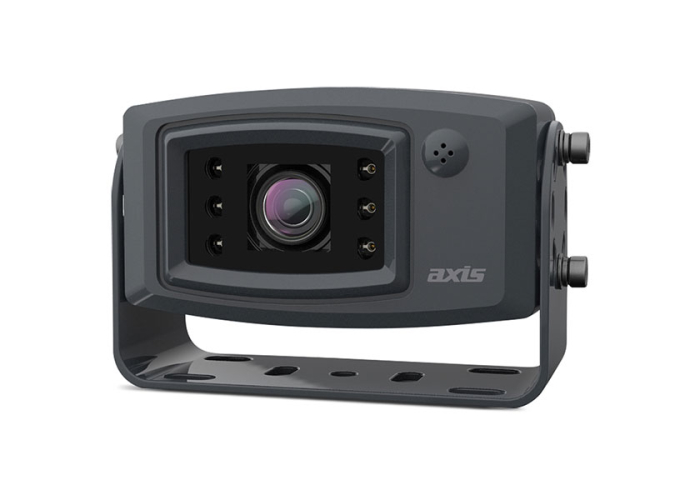

Axis ECC80 1/3" Truck-Type Reverse Camera
Axis ECC80 1/3" Heavy Duty Reverse Camera - Black
(Axis ECC80)
We Think You Should Know
- Australian Axis Warranty
- Purchase Guarantee (see T&Cs)
- Axis ECC80 Reverse Camera in BLACK
- Aluminium Die Cast
- 120° Viewing Angle
- 5 Infrared LEDs
- Mirror Image / 12V
- IP69K Waterproof
- Integrated Microphone
- Designed for Trucks/Buses/Industrial Use
Overview
The Axis ECC80 is a heavy duty waterproof 1/3" CCD reverse camera suited for trucks, buses, and industrial use. It features a 120° angle view, 5 infrared LEDs, a swivel bracket and an integrated microphone.
Aluminium Die Cast Construction: Ensures durability and robustness, capable of withstanding tough environments encountered in industrial settings.
120° Viewing Angle: Provides a wide field of view, allowing for comprehensive coverage of the surrounding area to minimize blind spots and enhance safety during reversing maneuvers.
5 Infrared LEDs: Equipped with infrared LEDs for night vision capability, enabling clear visibility even in low-light or nighttime conditions.
Mirror Image: Offers the option to display a mirrored image, facilitating easier orientation and maneuvering for drivers during reversing operations.
IP69K Waterproof Rating: Built to withstand harsh weather conditions and environmental factors with its high waterproof and dustproof rating, ensuring reliable performance in demanding conditions.
Integrated Microphone: Features an integrated microphone for capturing audio along with video, providing additional information and enhancing situational awareness.
Swivel Bracket: Includes a swivel bracket for flexible mounting options and optimal positioning to suit specific vehicle configurations and preferences.
The Axis ECC80 Series 2 is a dependable CMOS sensor camera designed to deliver high-resolution images and reliable performance in challenging environments. Its rugged construction and advanced features make it well-suited for industrial use and demanding applications where durability, reliability, and clear visibility are essential.
Axis - The Company
With a focus on innovation in automotive and marine product solutions, Axis has been a prominent brand since 1996, providing a wide range of product categories including automotive entertainment, safety, and communications. From audio solutions for trucks and all-terrain vehicles to comprehensive reversing safety systems, Axis offers complete solutions for cars, caravans, RVs, boats, trucks, machinery, and commercial vehicles. Choose Axis for top-of-the-line products and solutions for all your automotive and marine needs.
| Specification | Details |
|---|---|
| Image Device | 1/3" CMOS |
| Diagonal Viewing Angle | 120° |
| Signal System | PAL |
| Effective Pixels | 1.23m |
| Resolution | 700 TV Lines |
| Sync System | Internal |
| Orientation | Mirror Image |
| Night Vision | Yes, 5 IR LEDs |
| Illumination | 0 Lux with IR LED on |
| Ingress Protection | IP69K |
| Integrated Microphone | Yes |
| Operating Temp | -40 to 85°C |
| Power Consumption | Less than 200mA |
| Dimensions | 94W x 71D x 54H mm (Excluding Bracket) |
| Chassis | Charcoal, Diecast Aluminium |
| Connection | Terminated 4 Pin Male |
| Power Supply | 12V DC (9-14V) |
- Axis ECC80 1/3" Heavy Duty Reverse Camera - Black
- 20m 4 Pin (Male) to 4 Pin (Female) Extension Cable
- 40cm Adaptor Cable: 4 Pin (Female) to RCA (Male) (Video-Yellow; Audio-White)
- Mounting Bracket
