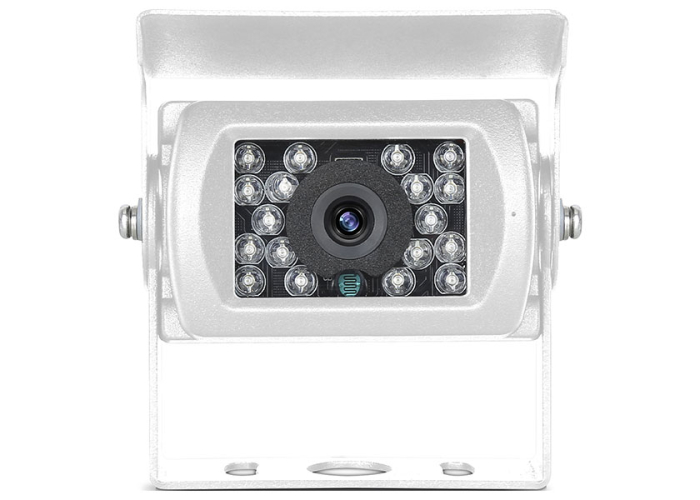

Axis CC08W Heavy Duty Rear Camera - White
Axis CC08W Heavy Duty Rear Camera - White
(Axis CC08W)
We Think You Should Know
- Australian Axis Warranty
- Purchase Guarantee (see T&Cs)
- Heavy Duty Rear Camera - White
- 120° Diagonal Viewing Angle
- 700 TV Lines
- Night Vision
- IP69K Water and Dustproof
- 12V
- Built-In Microphone
Overview
The Axis CC08W Heavy Duty Camera is a rugged and waterproof solution tailored for demanding applications. Featuring a wide 120° diagonal viewing angle for comprehensive coverage, high resolution of 700 TV lines and night vision capability, it ensures clear visibility even in low-light conditions. Its IP69K rating guarantees resilience against water and dust ingress, while compatibility with 12V power supply offers versatility. Equipped with a built-in microphone for audio recording, this camera enhances situational awareness, making it an ideal choice for users seeking reliable performance and clear imaging in heavy-duty environments.
Wide Viewing Angle: Offers a broad 120° diagonal viewing angle, providing comprehensive coverage of the area behind the vehicle.
High Resolution: Provides crisp and detailed images with 700 TV lines, ensuring clear visibility and accurate monitoring.
Night Vision: Equipped with night vision capability, allowing for effective surveillance even in low-light conditions.
Water and Dust Proof: Boasts an IP69K rating, making it highly resistant to water and dust ingress, suitable for use in challenging environments.
Power Compatibility: Operates on a 12V power supply, making it compatible with a wide range of vehicles and equipment.
Built-In Microphone: Features a built-in microphone for audio recording, enhancing situational awareness and providing additional context to captured footage.
The Axis CC08W Heavy Duty Camera is designed to deliver reliable performance and clear imaging, ensuring peace of mind for users in various heavy-duty applications.
Axis - The Company
With a focus on innovation in automotive and marine product solutions, Axis has been a prominent brand since 1996, providing a wide range of product categories including automotive entertainment, safety, and communications. From audio solutions for trucks and all-terrain vehicles to comprehensive reversing safety systems, Axis offers complete solutions for cars, caravans, RVs, boats, trucks, machinery, and commercial vehicles. Choose Axis for top-of-the-line products and solutions for all your automotive and marine needs.
| Specification | Details |
|---|---|
| Image Sensor | 1/3” Sony CCD |
| Auto Lens | f2.9mm |
| Electronic Shutter | Auto |
| Diagonal Viewing Angle | 120° |
| Horizontal Viewing Angle | 90° |
| Signal System | PAL |
| Resolution | 700 TV Lines |
| Sync System | Internal |
| Orientation | Mirror Image |
| Night Vision | Yes, 18 LED |
| Illumination | 0 Lux with IR on |
| Ingress Protection | IP69K |
| Microphone | Yes |
| Operating Temperature | -20°C ~ 70°C |
| Dimensions | 70W x 45H x 60D mm (Excl Bracket) |
| Connection | Terminated 4-Pin Male |
| Power Supply | 12V DC (From Monitor) |
| Extension Cable | 15m 4 Pin Male to 4 Pin Female |
- Axis CC08W Heavy Duty Rear Camera - White
- 15m 4 Pin (Male) to 4 Pin (Female) Extension Cable
- Mounting Bracket
- Sunvisor
Peace of Mind Purchase Guarantee
This product is supplied via Axis Australia and enjoys the FULL benefits of the 'Genuine Axis Australian Warranty'. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). In the event that this product should fail please contact our service department or you can speak with Axis Australia directly.
We are a FULLY AUTHORISED Australian retailer for Axis Australia.
