Aerpro AKIZ1B 9" Install Kit for Holden / Isuzu 12-20

Aerpro AKIZ1B 9" Install Kit for Holden Isuzu 2012-2020 (Select Models)
(Aerpro AKIZ1B)

We Think You Should Know

• Australian Aerpro Warranty
• Purchase Guarantee (see T&C's)
• Suits Trapezoid Shaped Radios
• Black Facia Kit
• Retains Steering Wheel Control Functionality
• For Selected Holden & Isuzu Models
• Compatible with Aerpro APP8

Important Information

• This kit is developed to suit universal trapezoid shaped radios. It will not suit standard DIN or double DIN sized radios
• This kit does not support Pioneer CAN Bus features but comes with a steering wheel control adapter. Instead of selecting 'CAN Bus Adapter' on boot-up, go to the Menu and select 'Steering Wheel Control' > 'With Adapter'.
• Feature Retention will be radio dependent.

Overview

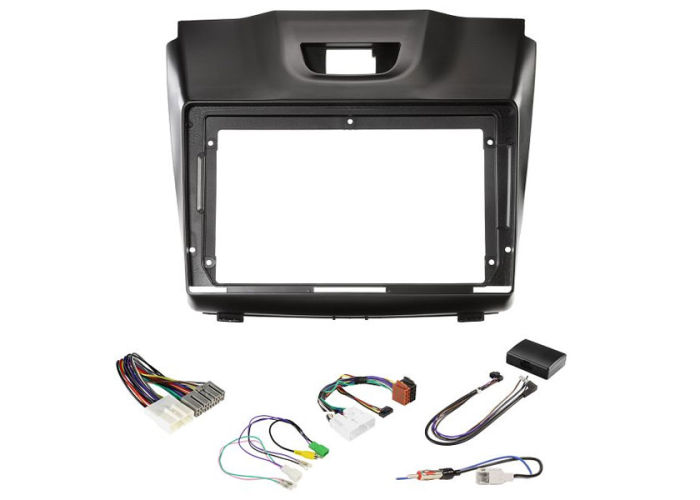

The Aerpro AKIZ1B 9" Installation Kit comes with all of the components required to install a 9" trapezoid shaped radio into your Holden Colorado (inc 7) 2012-2014, Isuzu D-Max 2012-2020 and Isuzu MU-X 2013-2017 vehicle whilst maintaining important vehicle features such as Steering Wheel Control functionality.

Head unit ISO harness is not included in the kit. Recommended to be installed with an Aerpro APP8 Head Unit Secondary ISO Harness (sold separately).

Compatible with the following 9" Trapezoid Head Units:

• ALPINE: INE-AW409S
• KENWOOD: DMX80AXS
• PIONEER: DMH-AP6650BT
• AERPRO: AM9X
• VARIOUS ANDROID HEAD UNITS

Known to Suit

Isuzu D-Max 2012-2020 (Headunit Dependant)

Isuzu MU-X 2013-2021 (Headunit Dependant)

Holden Colorado 2012-2014 RG

Holden Colorado 7 2012-2014

Aerpro

Established in 1985, TDJ Australia Pty Ltd is Australia's largest importer and wholesaler of automotive electronics and accessories. They are Australia's leading Innovative Developers of Products and Accessories for the Aftermarket and OEM Automotive Electronics Industry.

• Vehicle Feature Retention:
  • Steering Wheel Controls: Yes (including phone button)
  • Factory Reverse Camera: Yes (if equipped)
  • AUX Input: N/A
  • USB Input: No
  • Parking Tones: N/A
  • Factory Amplifier: N/A
  • Vehicle Menu
  • Other: Not compatible with Holden Mylink Systems

IMPORTANT NOTES:

• This kit is developed to suit universal trapezoid shaped radios. It will not suit standard DIN or double DIN sized radios
• This kit does not support Pioneer CAN Bus features but comes with a steering wheel control adapter. Instead of selecting 'CAN Bus Adapter' on boot-up, go to the Menu and select 'Steering Wheel Control' > 'With Adapter'.
• Feature Retention will be radio dependent.

• Black Facia Kit
• Steering Wheel Control Interface Harness
• SWC Patch Lead
• Antenna Adaptor
• Camera Retention Adaptor
