Aerpro Primary Facia Kit For Landrover - FP8409KC

Delivery and In-Store Pickup: As this product is located at an external warehouse delivery times may be delayed by up to 48 hours. In-store pickup is not available on this item.

Aerpro Landrover Primary Install Kit - FP8409KC
(Aerpro FP8409KC)

We Think You Should Know

• Australian Aerpro Warranty
• Purchase Guarantee (see T&C's)
• Application: Double Din
• Black Finish
• Retains steering wheel control functionality
• Suitable for vehicles with basic OEM small display
• CAN-BUS compatible
• Provides output feeds for park brake, speed pulse and reverse gear
• No cutting of wires required
• Compatible with Aerpro APP9 Headunit Secondary ISO Harness & SWC Patch Lead (sold separately)

Important Information

• Total Installation Kits can vary between models, to find the correct part for your vehicle use the Aerpro Vehicle Selector.
• Aftermarket headunit must be SWC compatible and Steering Wheel Control Functions may vary from the OEM Functions.
• Headunit ISO harness not included in the kit. Recommended to be installed with an Aerpro APP9 Headunit Secondary ISO Harness & SWC Patch Lead (sold separately).
• This Install Kit is suitable for Landrover Discovery 4 models with Small OEM Basic Displays.
• Centre bar must be cut, the vehicle can not be restored to factory configuration following this modification.
• Only compatible with stereos that have a front face dimension of 178mm x 96mm.
• To retain OEM USB input the aftermarket headunit requires a rear USB input.
• To retain vehicle warning, park assist functionality and access to vehicle settings, the aftermarket headunit must be AV and have an AV input.
• Aftermarket headunit requires a rear camera input.
• To retain a factory fitted camera, an additional vehicle specific camera retention harness is also required (if available, sold separately).
• Please be aware when installing a High Definition Camera, the camera resolution will be reduced using this product.

Overview

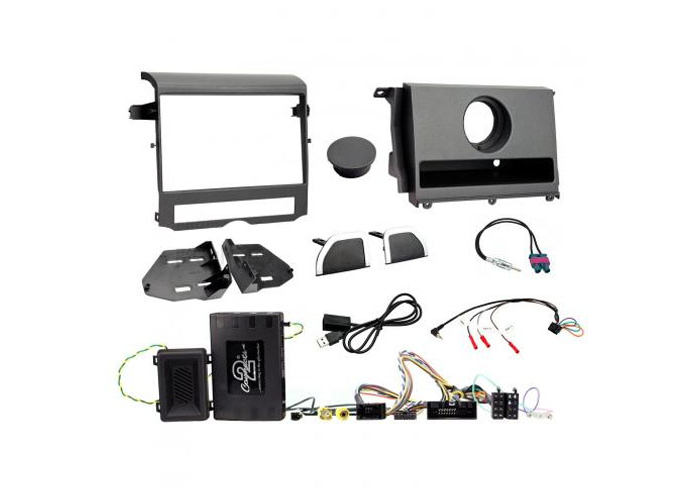

Complete a full aftermarket double din headunit installation in your Landrover Discovery 4 (2009-2016) with small OEM basic display, from start to finish with this Aerpro vehicle specific headunit installation kit, containing everything you need for a perfect upgrade in one box. This kit includes: black double din facia kit, OEM screen replacement clock relocation panel, mounting brackets, infodapter interface, USB retention lead, antenna adaptor and universal SWC patch lead. Installation of the aftermarket headunit is simplified even further when paired with the optional Aerpro APP9 Headunit Secondary ISO Harness & SWC Patch Lead, which connects between the aftermarket headunit and the Aerpro Infodapter Interface. The kit also retains the vehicle warning / park assist functionality, OEM USB input and OEM clock.

Aerpro

Established in 1985, TDJ Australia Pty Ltd is Australia's largest importer and wholesaler of automotive electronics and accessories. They are Australia's leading Innovative Developers of Products and Accessories for the Aftermarket and OEM Automotive Electronics Industry.

• APPLICATION: DOUBLE DIN
• COLOUR: BLACK
• INTERNAL DIMENSIONS: 172mm (W) x 98mm (H)
• EXTERNAL DIMENSIONS: 179mm (W) x 180mm (H)

• INCLUSIONS:
  • DOUBLE DIN FACIA KIT
  • OEM SCREEN REPLACEMENT CLOCK RELOCATION PANEL
  • MOUNTING BRACKETS
  • TRIM RING
  • INFODAPTER INTERFACE
  • USB RETENTION LEAD
  • ANTENNA ADAPTOR
  • UNIVERSAL SWC PATCH LEAD

IMPORTANT NOTES:

• Aftermarket headunit must be SWC compatible.
• SWC patch lead is also required to enable SWC (sold separately).
• This Install Kit is suitable for Landrover Discovery 4 models with Small OEM Basic Displays.
• Centre bar must be cut, the vehicle can not be restored to factory configuration following this modification.
• Only compatible with stereos that have a front face dimension of 178mm x 96mm.
• To retain OEM USB input the aftermarket headunit requires a rear USB input.
• To retain vehicle warning, park assist functionality and access to vehicle settings, the aftermarket headunit must be AV and have an AV input.
• Aftermarket headunit requires a rear camera input.
• To retain a factory fitted camera, an additional vehicle specific camera retention harness is also required (if available, sold separately).
• Please be aware when installing a High Definition Camera, the camera resolution will be reduced using this product.

• DOUBLE DIN FACIA KIT
• OEM SCREEN REPLACEMENT CLOCK RELOCATION PANEL
• MOUNTING BRACKETS
• TRIM RING
• INFODAPTER INTERFACE
• USB RETENTION LEAD
• ANTENNA ADAPTOR
• UNIVERSAL SWC PATCH LEAD
