  • Wavtech linkD Line Driver/ Output Converter

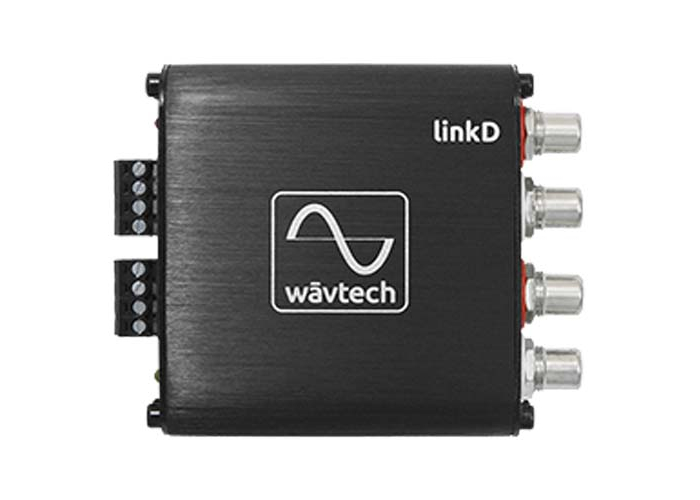

Wavtech linkD 2CH Line Driver/ Output Converter

Product Code : LINKD

List Price: $139.00 On Sale: $128.85 (GST Included) (You save 7.30%)

$9.95 Flat Rate Generally ships out in 24 to 48 hours.

Expected Soon

You may also be interested in the following product(s)

  • Wavtech link4 4CH Line Output Converter

    Wavtech link4 4CH Line Output Converter

    List Price: $269.00 On Sale: $218.85 (GST Included) (You save 18.64%)

  • Wavtech link8 8CH Line Output Converter

    Wavtech link8 8CH Line Output Converter

    List Price: $399.00 On Sale: $328.85 (GST Included) (You save 17.58%)

  • Wavtech linkT 2CH Time Alignment Processor

    Wavtech linkT 2CH Time Alignment Processor

    List Price: $299.00 On Sale: $248.85 (GST Included) (You save 16.77%)

Product Info

Product Info

Check out the Wavtech linkD 2 Channel Line Driver / Line Output Converter's Key Features
(Wavtech LINKD)

  • Genuine Australian Aerpro/Wavtech Warranty
  • Peace of Mind Purchase Guarantee (bottom of page)
  • 2-Channel Line Driver or Line Output Converter (LOC)
  • Differential Balanced Inputs
  • Low Output Impedance
  • Variable Gain with Clip LED
  • Auto-Turn On via DC-Offset or Audio Signal Detect
  • Generated +12V Remote Output
  • OEM Load Detect Compatible
  • Selectable Ground Isolation
  • Professional Grade Panel Mount RCA’s
  • Detachable Power and Speaker Terminals
  • Aluminum Chassis w/Detachable Mounting Tabs

Overview

When upgrading your audio system, a good clean signal is critical. The linkD is a versatile little box with a dual personality. First, it is an active, high output/ low impedance line output converter (LOC). It was designed to work well with high power factory audio systems. It also functions as a high output voltage line driver, delivering over 10V RMS of output at less than 60ohms. If these numbers don't mean anything to you that's ok, they are really good.

It features auto turn-on via DC-offset or Audio Signal Detect. This allows the unit to turn on without the need of a remote wire, and even generates a +12V output to turn on the amplifier or other aftermarket devices in your system. This makes it a great choice for upgrading an OEM audio system.

Peace of Mind Purchase Guarantee & Declaration of Warranty
This product is supplied directly via Wavtech Australia and enjoys the FULL benefits of the ' Wavtech - Australian Warranty'. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). Should this product fail, you have the option of contacting the manufacturer / supplier directly.

We are a FULLY AUTHORISED Australian retailer for Aerpro and Wavtech Australia.

This product will be shipped from our Sydney Warehouse. This product is NOT DROP SHIPPED from overseas.

Tech Specs

Technical Specifications

linkD Specifications
Output Voltage (RCA) >10V RMS
Output Impedance <50Ω
Input Sensitivity (SPK/RCA) 2-20Vrms / 0.5-5Vrms)
Max Input Voltage (SPK) 40Vrms (<5s peak)
Frequency Response <10Hz to >100kHz
THD+N (SPK/RCA) <0.1% / <0.01%
S/N (SPK/RCA) >112dBA / >115dBA
Turn-On Trigger +12V, DC-offset & Audio Detect
Generated +12V Output >500mA
In The Box

What's Included?

  • Wavtech linkD Line Driver/ Output Converter
