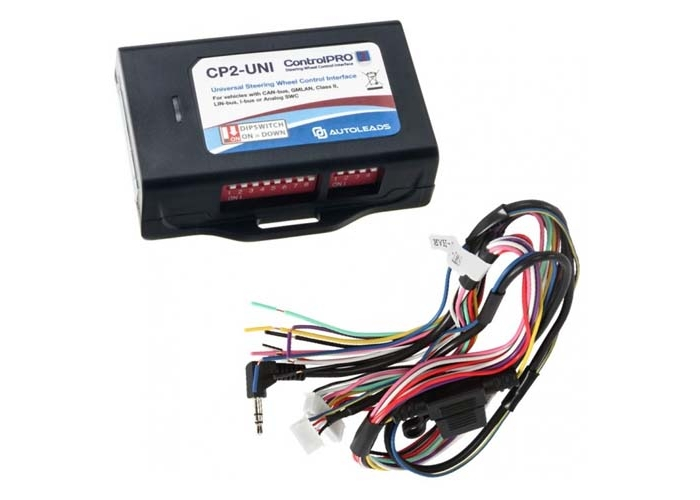

ControlPRO2 Universal Steering Wheel Control Interface

Delivery and In-Store Pickup: As this product is located at an external warehouse delivery times may be delayed by up to 48 hours. In-store pickup is not available on this item.

Check out the ControlPRO2 Universal Steering Wheel Control Interface's Key Features
(Stinger CP2UNI)

• Genuine Australian Aerpro Warranty
• Peace of Mind Purchase Guarantee (bottom of page)
• Vehicle Compatibility see Tech Specs TAB
• Easy product selection
• Compatible with Resistive, CAN-Bus, VAN-Bus K-line, GMLAN, Class II and LIN-Bus vehicle system types
• Learning mode for resistive steering controls
• Configure via PC or dipswitches
• Supported by Apple, Android and PC Applications
• Can be used as a universal "hardwire" product
• Can be used as a vehicle-specific harness enabling a "plug and play" installation

Overview

Stinger CP2-UNI is a universal steering wheel control interface that is customisable via the ControlPRO app. It covers all vehicle system types with all vehicles applications. Configurable via PC or dipswitches, it is designed to eliminate the difficulties in product identification and installation.

Use your tablet, phone or laptop to configure the ControlPRO using our custom app. The app allows you to interface with the cars steering wheel signals and customize them; however, the driver would like. The app is available on Google Play and at the Apple iTunes App Store or for Windows 7 download.

Why buy the CP2-UNI From PAC AUDIO

Supplied as a hardwire universal Interface, That will retain Steering Wheel Audio Controls with Selected Aftermarket radios, A list of Known compatible models and limitiations is listed below, Customisable Dual Press fucntion makes the CP2-UNI the perfect hardwire Steering Wheel Audio Control interface.

Need more than Steering Wheel Controls? add the CP2MM which will provide the following addiotnal out puts like:

• Park Brake Output (if on vehicle network)
• Reverse Trigger (if on vehicle network)
• Speed Pulse (if on vehicle network)
• Tach Signal (if on vehicle network)
• Illumination Output (if on vehicle network)

IMPORTANT INFORMATION

If your vehicle's OEM radio generates the parking sensor tones this interface will not retain these tones.(If parking sensors are not part of the factory radio, they should not be effected.)
This interface is not suitable to retain the a Factroy Amplifier.

• ALFA ROMEO, SPIDER, 2006-2011 — If the vehicles equipped with push-button start may not give ACC
• AUDI, A2, 1999-2005 — For vehicles with scroll wheel steering wheel buttons
• AUDI, A6 (Incl S6) 1996-1999 — Models with push-button SWC and not the scroll wheel
• AUDI, A6 (Incl S6) 2000-2004— For vehicles with scroll wheel steering wheel controls. NOT COMPATIBLE WITH RNS-E Vehicles
• FORD, EXPLORER 2002-2005 — Models with 24 Pin Connector
• FORD, FIESTA 2002-2006 Models with 3 section head unit
• FORD, FIESTA 2009-2016 — Models with a monochrome screen
• FORD, FOCUS (Incl XR5) 1999-2004 — Models with 17 Pin Connector
• FORD, FOCUS (Incl XR5) 2005-2008 — Models with 24 Pin Connector
• HOLDEN, BARINA 2012-2016 — Non-MyLink Models (Will lose access to vehicle settings)
• HOLDEN, BARINA SPARK 2010-2016 — 2010-2012 Models with 44 Pin Connector
• HOLDEN, CAPTIVA 7 2006-2015 — Nav Models will lose screen
• HOLDEN, COLORADO (Incl 7) 2012-2013 — Models with 16 Pin Connector
• HOLDEN, COLORADO (Incl 7) 2014-2016 — Models with 16 Pin Connector
• HOLDEN, VIVA, 2006-2011 — Models with 18 Pin Connector
• HONDA, ACCORD EURO 2008-2015 — Models with 24 Pin Connector
• HONDA, CITY, 2015-2018 — Models with mechless head unit
• HONDA, CIVIC HATCH, 2006-2011 — not able to retain OE display above the head unit
• HONDA, CIVIC HATCH, 2012-2015 — Nav models – Unable to adjust the clock on HUD
• HONDA, CRV, 2007-2011 — Models with 20 Pin Connector
• HONDA, CRV, 2012-2015 — Nav models – Unable to adjust the clock on HUD
• HONDA, HRV, 2015-2017 — Models with mechless head unit
• HONDA, HRV, 2017-2018 —Models with mechless head unit
• HONDA, JAZZ, 2008-2013 — Models with 24 Pin Connector
• HONDA, JAZZ, 2014-2016 — Models with mechless head unit
• HONDA, JAZZ, 2017-2018 — Models with mechless head unit with 24 Pin Connector
• HONDA, MDX, 2001-2006 — Models with 20 Pin Connector
• HONDA, ODYSSEY, 2005-2009 — Models with 20 Pin Connector
• HONDA, ODYSSEY, 2009-2013 — Models with 20 Pin Connector
• HONDA, ODYSSEY, 2014-2016 — Unable to adjust the clock in the cluster
• HYUNDAI, ACCENT, 2006-2008 — Models with 24 Pin Connector
• HYUNDAI, ACCENT, 2011-2018 — Models with 24 Pin Connector
• HYUNDAI, ELANTRA, 2007-2010 — Models with 24 Pin Connector
• HYUNDAI, ELANTRA, 2011-2013 — Models with 24 Pin Connector
• HYUNDAI, GRANDEUR, 2006-2010 — Models with 24 Pin Connector
• HYUNDAI, i30, 2012- 2016 — Nav Models with 24 Pin Connector
• HYUNDAI, ILOAD (Incl IMAX), 2016-2018 — Models with 38 Pin Connector
• HYUNDAI, SONATA, 2006-2008 — Models with 24 Pin Connector
• IVECO, DAILY, 2015-2017 — Models with 12 Pin Connector
• KIA, CARNIVAL (Incl Grand), 2006-2015 — Models with mini ISO Connector
• KIA, CERATO, 2010-2013 — Models with mini ISO Connector
• KIA, SORENTO, 2009-2012 — Non-Amplified Models
• LAND ROVER, DISCOVERY III, 2005-2010 — Non-Amplified Models
• LAND ROVER, FREELANDER II, 2007-2011 — Non-Amplified Models
• LAND ROVER, RANGE ROVER, 2005-2010 — Non-Amplified Models
• LAND ROVER, RANGE ROVER 2011-2014 — Non-Amplified Models
• LEXUS, IS, 1999-2005 — Non-Navigation Models
• MAZDA, 3, 2009-2013 — Non-Amplified Models (does not retain clock & trip display)
• MAZDA, 6, 2010-2012 — Non-Amplified Models (does not retain clock & trip display)
• MAZDA, MX5, 1998-2005 — Non-Amplified Models
• MAZDA, MX5, 2006-2008 — Non-Amplified Models
• MAZDA, MX5, 2009-2013 — Non-Amplified Models
• MAZDA, TRIBUTE, 2001-2005 — Models with 14 Pin Connector
• MERCEDES, A CLASS, 2005-2007 — Models with mini ISO Connector
• MERCEDES, A CLASS, 2007-2011 — Models with mini ISO Connector
• MERCEDES, B CLASS, 2005-2007 — Models with mini ISO Connector
• MERCEDES, C CLASS, 2005-2008 — Models with mini ISO Connector
• MERCEDES, SPRINTER, 2007-2018 — Models with ISO Connector
• MERCEDES, VITO (Inc VIANO/VALENTE) 2007-2015 — Models with mini ISO Connector
• MITSUBISHI, ASX, 2013-2018 — Amplified Models (MTMITO02 also required)
• MITSUBISHI, LANCER (Inc Evolution), 2014-2018 — Amplified Models (MTMITO02 also required)
• MITSUBISHI, MAGNA (Inc Verada), 1997-2005 — Models with 6 Pin Connector
• MITSUBISHI, OUTLANDER, 2013-2018 — Amplified Models (MTMITO03 also required)
• MITSUBISHI, TRITON, 2007-2013 — Models with trip display
• MITSUBISHI, TRITON, 2013-2015 — Models with trip display
• NISSAN, 350Z, 2006-2008 — Models with 32 Pin Connector
• NISSAN, MAXIMA, 1995-2003 — Models with 32 Pin Connector
• NISSAN, PATHFINDER, 2005-2013 — Models with 16A Connector
• NISSAN, SKYLINE, 2001-2004 — Models with 16 Pin Connector
• PORSCHE, CAYENNE, 2002-2012 — Models with Mini ISO Connector
• RENAULT, CLIO, 2006-2011 — does not retain display
• SAAB, 9-3, 1998-2005 — Models with the OE Double DIN Head Unit
• SAAB, 9-3, 2005-2011 — Models with 14 Pin Connector (2008 On)
• SUZUKI, GRAND VITARA, 2005-2014 — 2011+ Models
• SUZUKI, SWIFT, 2011-2016 — 2011+ Models
• TOYOTA, ALPHARD, 2015-2017 — Amplified Models (PACRP3.2TY11 also required)
• TOYOTA, ESTIMA, 2006-2016 — OE Navigation Models
• TOYOTA, CAMRY, 2018-2018 — Models with 28 Pin Connectors
• TOYOTA, TUNDRA, 2007-2013 — Amplified Models (PACRP3.2TY11 also required)
• TOYOTA, TUNDRA, 2014-2017 — Amplified Models (PACRP3.2TY11 also required)
