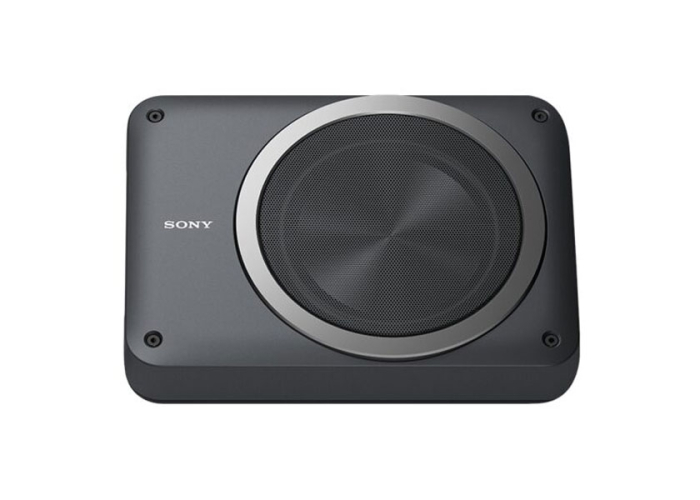

Sony XS-AW8 8" 160W Powered Underseat Subwoofer

Sony XS-AW8 8" 160W Compact Underseat Powered Subwoofer
(Sony XS-AW8)

We Think You Should Know

• Australian Sony Warranty
• Purchase Guarantee (see T&C's)
• 8" Powered Subwoofer - 2 Ω + 2 Ω
• 160W Peak / 75W RMS Power
• 200mm Woofer
• Built-in Amplifier Class A/B
• Ultra-sleek Shallow Subwoofer
• Low-resonance Aluminium Enclosure
• High-level Input / Audio Line Input
• Single-Sided Controls and Terminals
• Low Pass Filter / Phase Select
• Freq Resp: 20Hz-200Hz
• Includes Remote Gain Controller

Overview

The Sony XS-AW8 is a compact powered subwoofer designed for delivering deep, dynamic bass in tight spaces like under a car seat. Featuring an 8" woofer and dual 2-ohm voice coils, it handles up to 160W peak power and 75W RMS, ensuring punchy and responsive bass. Its ultra-sleek 7.8cm shallow enclosure fits easily in limited spaces without compromising sound quality.

Equipped with a built-in Class A/B amplifier, low-resonance sealed cast-aluminium enclosure, and high-level input compatibility, the Sony XS-AW8 ensures clean, distortion-free sound. It also features a low-pass filter and phase switch for seamless integration with your car's audio system and a remote gain controller for easy bass adjustment, this Sony under seat subwoofer is ideal for adding powerful bass without sacrificing valuable space.

Features

Ultra-sleek, shallow subwoofer
No space for a big subwoofer enclosure? At only 3 1/8" (7.8cm) deep, the XS-AW8 powered subwoofer fits in tight spaces in your vehicle for powerful bass sound throughout the car.

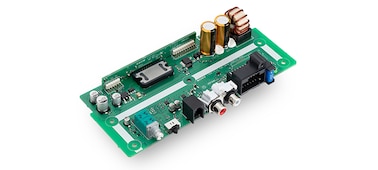

160W peak (75W RMS) output power
Fill your car with 160W (75W RMS) of clean, dynamic bass sound with our original power IC. The matched class A/B amp is designed for high power and natural, distortion-free sound even at high output levels.

Optimally designed driver unit and low-resonance cast-aluminium enclosure
To reproduce powerful bass sound from its compact dimensions, the slim enclosure is paired with a unique rigid subwoofer diaphragm. The built-in amplifier also integrates a sturdy heat-sink to protect the driver unit and amp without introducing unwanted vibrations and harmonic distortion.

Supplied wired remote commander
A supplied wired remote commander allows you to adjust the subwoofer volume from the driver's seat.

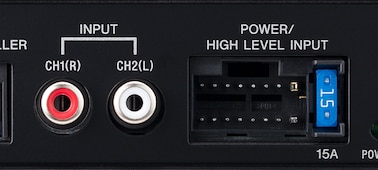

High level input/Audio line input
What if you're using a factory radio that doesn't have pre-amp outputs? Simply connect the speaker outputs of your receiver to the high-level inputs. When pre-out audio signals are available from the receiver, connect them to the CH1(R) and CH2(L) terminals. Compatibility with up to 5V pre-outs means you can utilise higher voltage audio input for a clean audio signal and less external noise.

Single-sided controls and terminals
Connections and amplifier controls are together on the same side for easy installation and tuning. The amplifier features a variable low-pass filter for simple connection to full-range sources, including the speaker-level inputs. A switch additionally allows you to customise the subwoofer phase output, to prevent any reduced bass response due to phase cancellation from other speakers in your system.

Sony Corporation

The Sony Corporation needs no introduction. With products ranging from televisions, digital imaging, audio / video, electrical components and phones, almost everyone has had some experience with Sony in their lifetime. From humble beginnings as an electronics shop in a Tokyo department store, the company has grown to be one of the biggest names in electronics worldwide.

• Sony XS-AW8 8" 160W Powered Subwoofer
• Level Remote
