Sony XAV-AX8500 Media Receiver w Reverse Camera

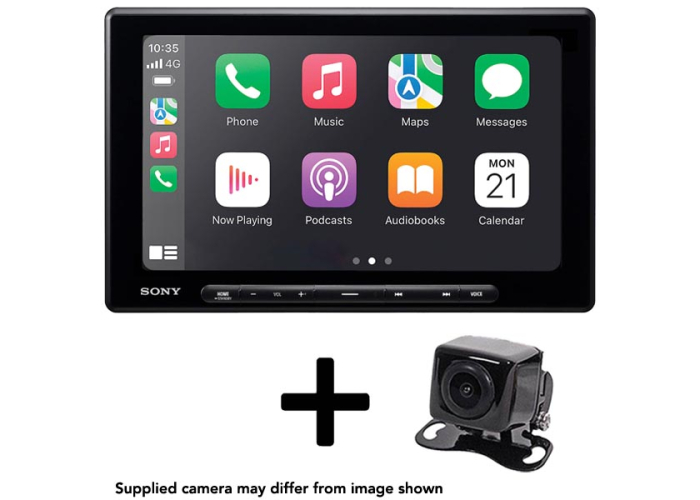

Sony XAV-AX8500 Digital Multimedia Receiver w Reverse Camera
(Sony XAVAX8500CAM)
We Think You Should Know
- Australian Sony Warranty
- Purchase Guarantee (see T&Cs)
- Includes - Reversing Camera
- 10.1" Floating HD Touch Screen
- 1280x720p Resolution
- Gapless Anti-glare Display
- FM/AM Tuner
- Bluetooth / Rear USB
- 4 x 55W Max Power Output
- Apple CarPlay & Android Auto
- 3-Camera Trigger Inputs
- HDMI Input Support
- Compact Chassis
Why buy the Sony XAV-AX8500 Media Receiver w Reverse Cam
Upgrade your driving experience with the Sony XAV-AX8500 Digital Multimedia Receiver. Featuring a stunning 10.1-inch capacitive HD touchscreen, it delivers an oversized high-definition display with enhanced picture quality. Connect wirelessly or via HDMI to your smartphone and various devices for seamless integration. With Car Play and Android Auto compatibility, enjoy voice-controlled navigation, communication, and music playback, even with your device in your pocket. The built-in DSP offers unparalleled sound customization, down to a remarkable 1 cm for each of the five addressable channels. Tailor your audio experience with the 14-band EQ and three-zone crossover for a perfect match of front, rear, and subwoofers.
High-Definition Capacitive Touchscreen: Experience a large 25.7 cm (10.1 inch) capacitive touchscreen with 1280 x 720-pixel high resolution, delivering crisp detail, increased brightness, and superior contrast for an enhanced in-car multimedia experience.
Advanced Sound Customization: The built-in DSP (Digital Signal Processor) offers precise sound processing and time alignment for each of the five addressable channels, providing optimal audio quality. The 14-band EQ allows customization according to your music preferences, and the three-zone crossover ensures a well-balanced audio setup for front, rear, and subwoofers.
Gapless Anti-glare Display: The LCD is bonded directly to the protective glass touch layer, offering a precise touch experience and improved contrast. The internal anti-glare filter minimizes sunlight reflections, ensuring optimal touchscreen visibility for safer driving.
3-Camera Trigger Inputs: Connect up to three cameras, activating them when the vehicle is in reverse or by tapping dedicated icons on the home screen. Trigger wires allow individual camera control, automatic switching with turn signals, and compatibility with front cameras. An adjustable parking guide enhances safety during reverse gear.
Enjoy a customizable viewing angle for every journey, adapting to your seating position and avoiding glare or sharing the screen with passengers. Elevate your driving experience with the Sony XAV-AX8500—where innovation meets superior entertainment on the road.
Features
HDMI Input
Utilize HDMI connectivity to connect external audio and visual source devices or compatible smartphones, enabling you to enjoy your preferred content while your car is stationary.
Wireless smartphone connectivity
Experience complete wireless smartphone connectivity. Utilize Wi-Fi connection to seamlessly connect your smartphone, coupled with the provided GPS antenna. This enables voice control for navigation, communication, and music playback while your device remains conveniently in your pocket during your journey.Easy to adjust - tilt & swivel
The display joint's manual tilt and swivel features, with a range of ±15 degrees, enable personalized adjustments to suit your seating position, avoid sunlight reflections, and share the navigation screen with passengers, enhancing overall comfort and convenience during every journey.
Sony Corporation
The Sony Corporation needs no introduction. With products ranging from televisions, digital imaging, audio/video, electrical components and phones, almost everyone has had some experience with Sony in their lifetime. From humble beginnings as an electronics shop in a Tokyo department store, the company has grown to be one of the biggest names in electronics worldwide.
| DIMENSIONS (W X H X D) | 269 × 167 × 258 mm | |
|---|---|---|
| WEIGHT | 2.6 kg | |
| General Features | ||
| ALBUM ARTWORK INDICATION | Yes | |
| EQUALIZER | 14-band Equalizer | |
| FIRMWARE UPGRADABILITY | Yes | |
| OUTPUT POWER | 55W x4 | |
| PRE OUT | 5V 3-Pre (Front LR / Rear LR / Sub x 1) | |
| REAR VIEW CAMERA IN | Rear/Input 1/Input 2 | |
| TIME ALIGNMENT | Yes | |
| USB | Yes (Type-C x 1, REAR) | |
| Tuner Features | ||
| AUTO MEMORY | BTM | |
| PRESET | FM18/AM12 | |
| RDS / EON | Yes (RBDS) | |
| Bluetooth Profile | ||
| A2DP | Yes (1.3.1) | |
| AVRCP | Yes (1.6.1) | |
| HFP | Yes (1.7.1) | |
| PBAP | Yes (1.1) | |
| Bluetooth Features | ||
| ALPHABETICAL PHONEBOOK SORTING | Yes | |
| BATTERY REMINDER | Yes | |
| CALL VOLUME LEVEL CONTROL | Yes | |
| EXTERNAL MICROPHONE | Supplied | |
| LAST DIALED CALL | Yes(select from the dialed call history) | |
| PHONEBOOK ACCESS VIA PBAP | Yes | |
| RECENT CALLS (# OF) | Yes | |
| RING VOLUME LEVEL CONTROL | Yes | |
| SIGNAL STRENGTH INDICATION | Yes | |
| SPEED DIAL | Yes (6 memories) | |
| Bluetooth Audio Features | ||
| AUDIO CODEC (BLUETOOTH AUDIO) | SBC/AAC/LDAC | |
| AUDIO LEVEL ADJUSTMENT | Yes (-6dB to +6dB) | |
| CUE / REV | Yes | |
| GROUP (FOLDER) +/- | Yes | |
| META DATA INDICATION | Yes | |
| PAUSE (BLUETOOTH AUDIO) | Yes | |
| REPEAT CONTROL (AUDIO DEVICE SIDE) | Yes | |
| SHUFFLE CONTROL (AUDIO DEVICE SIDE) | Yes | |
| TRACK +/- | Yes | |
| Panel Design | ||
| KEY ILLUMINATION | Yes (White) | |
| Monitor(AVC) | ||
| BRIGHTNESS | 425 cd/m2 | |
| DIMMER | Auto/Manual select | |
| LCD TYPE | TFT Active Matrix | |
| RESOLUTION (DOT) | 1280 x 720 | |
| SCREEN ASPECT | 16:9 | |
| SCREEN DIAGONAL (INCH / CM) | 10.1 inches / 25.7 cm | |
| Display Panel | ||
| DIMMER ADJUST | Yes | |
| User Interface | ||
| PARKING CONTROL | Yes | |
| PARKING LINE ADJUST | Yes | |
| REAR VIEW CAMERA-IN MARKER SETTING | Yes | |
| TOUCH PANEL | Yes/Capacitive | |
| USB Mass Storage Device Control Feature | ||
| USB DEVICE CONTROL (AUDIO CODEC) | MP3/WMA/WAV/AAC/FLAC/ALAC/DSF/DSDIFF | |
| USB DEVICE CONTROL (AUDIO PLAYABLE FILE EXTENSION) | .mp3/.wma/.wav/.m4a/.mp4/.flac/.m4a/.mp4/.dsf/.dff | |
| USB DEVICE CONTROL (PAUSE) | Yes | |
| USB DEVICE CONTROL (REPEAT) | TRACK/FOLDER/DRIVE | |
| USB DEVICE CONTROL (RESUME PLAY) | Yes | |
| USB DEVICE CONTROL (SHUFFLE) | OFF/FOLDER/DEVICE | |
| USB DEVICE CONTROL (VIDEO CODEC) | ASF/WMV/AVI/MKV/MPEG-4 | |
| USB DEVICE CONTROL (VIDEO PLAYABLE FILE EXTENSION) | .asf/.wmv/.avi/.mkv/.mp4 | |
- Sony XAV-AX8500 Digital Multimedia Receiver
- Universal Reversing Camera
