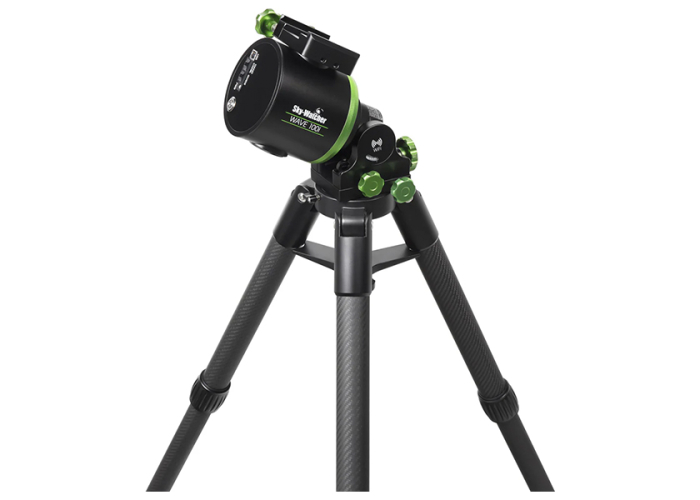

Sky-Watcher Wave 100i Mount & Tripod & Weight

Sky-Watcher Wave 100i Mount & Tripod & Weight
( Sky-Watcher SWWAVE100ITRICW )

• Australian Sky-Watcher Warranty
• Purchase Guarantee (see T&C's)
• Wave 100i
• Strainwave drive
• High payload
• Go-To control

Overview

The Sky-Watcher Wave 100i is a compact strain wave EQ/AZ Go-To mount designed for visual observing and astrophotography. Weighing only 4.3 kg, it supports up to 10 kg without counterweights and 15 kg with them. It can also be configured to hold two optical tubes using an optional second dovetail saddle. The harmonic drive system provides precise tracking with minimal backlash, while the RA clutch and electromagnetic brake add safety and easier balancing. The Wave 100i works with the SynScan hand controller or app, offering Go-To pointing to 42,900 objects and tracking at Sidereal, Lunar, or Solar rates.

Key Features:

EQ & AZ Working Modes
Operates in both equatorial and alt-azimuth configurations, making it suitable for visual observing and astrophotography.

Compact & Strong Payload Capacity
Weighs just 4.3 kg and supports 10 kg without counterweight and up to 15 kg when a counterweight is used.

Precision Harmonic Drive System
Stepper motor with belt drive and harmonic reducer ensures smooth, accurate tracking with minimal backlash.

Wide Latitude Adjustment
Continuously adjustable latitude range from 0° to 90°, allowing use anywhere globally.

RA Clutch for Balancing
RA axis includes a clutch-locking system for easy balancing when counterweights are attached.

Wireless Control
Built-in Wi-Fi and Bluetooth enable app-based or hand-controller operation.

12V Power Input
Runs on 12V DC with 0.4A standby and up to 2A during Go-To slews.

High Slew Speed
Features a maximum slewing rate of 10°/s (2400x) for fast and responsive object positioning.

Safety & Convenience Enhancements
Includes RA power-off brake, home position limits, cable management, and red LED lighting on bubble level and latitude scale.

Skywatcher Telescopes - The Company

In late 1999 the Skywatcher brand was born in Canada. Today Skywatcher is recognised as being one of the world's largest telescope suppliers. With a mission statement like the following, it is no wonder they are one of the world's biggest brands for night gazing.

'We believe that beginners’ first scopes should be not only affordable, but also of the highest quality.  Looking through a telescope for the first time is a magical moment and we believe in magic! We're called “Sky-Watcher”: our desire is to see the world-wide community of sky watchers grow, until, one day,  every person in the world can be a part of our community!

• 1 x Sky-Watcher Wave 100i Mount & Tripod & Weight
