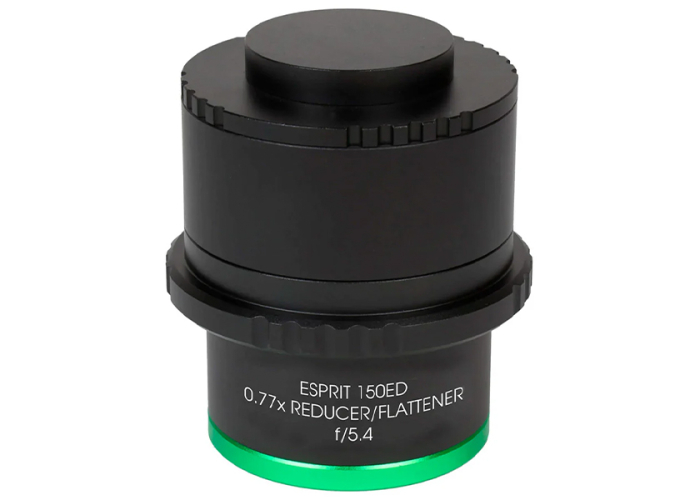

Sky-Watcher .77x Reducer / Flattener for 150ED

Sky-Watcher .77x Reducer / Flattener for 150ED
( Sky-Watcher SWAEVO150FRF )

• Australian Sky-Watcher Warranty
• Purchase Guarantee (see T&C's)
• Sky-Watcher 0.77x Reducer
• For Esprit 150ED
• f/7 to f/5.4
• 36mm image circle

Overview

The Sky-Watcher 0.77x Reducer/Flattener is designed specifically for the Esprit 150ED telescope to enhance astrophotography performance. By reducing the focal ratio from f/7 to f/5.4, it increases imaging speed, allowing significantly shorter exposure times while maintaining image brightness and detail. The focal length is reduced to 810mm, providing a wider field of view ideal for capturing larger deep-sky objects. With a corrected 36mm image circle, it supports APS-C sensor formats without edge distortion. The reducer offers a flexible 90mm back focus, or 55mm when using the included spacer and M48 adapter, and features integrated 2" filter threads for convenient filter attachment.

Key Features:

EQ & AZ Working Modes
Operates in both equatorial and alt-azimuth modes, making it suitable for visual observing and astrophotography.

Compact & Capable Payload
Weighs just 4.3 kg and supports up to 10 kg without counterweights or 15 kg with counterweights, accommodating a variety of telescope setups.

Dual Saddle Ready
Can carry two telescopes when an additional saddle is installed (sold separately), offering flexible observing configurations.

Precision Harmonic Drive System
Stepper motor with belt drive and harmonic reducer ensures smooth, accurate, and backlash-free tracking.

Full Latitude Adjustment
Provides continuous latitude adjustment from 0° to 90°, suitable for use anywhere on Earth.

Clutch-Locking & RA Brake
RA clutch allows easy balancing, while the power-off brake prevents telescope movement during power loss.

Wireless Control
Built-in Wi-Fi and Bluetooth enable control via SynScan app and compatible third-party software.

12V DC Power Operation
Runs efficiently from standard 12V power sources with 0.4A standby and up to 2A during Go-To movement.

High Slew Speed
Achieves up to 10°/s for quick target acquisition and repositioning.

Convenience & Safety Features
Includes RA/DEC home limits, integrated cable management, and red LED illumination for bubble level and latitude scale.

Skywatcher Telescopes - The Company

In late 1999 the Skywatcher brand was born in Canada. Today Skywatcher is recognised as being one of the world's largest telescope suppliers. With a mission statement like the following, it is no wonder they are one of the world's biggest brands for night gazing.

'We believe that beginners’ first scopes should be not only affordable, but also of the highest quality.  Looking through a telescope for the first time is a magical moment and we believe in magic! We're called “Sky-Watcher”: our desire is to see the world-wide community of sky watchers grow, until, one day,  every person in the world can be a part of our community!

• 1 x Sky-Watcher .77x Reducer / Flattener for 150ED
