Saramonic UwMic15V2 16-Ch UHF Lavalier Microphone System

Delivery and In-Store Pickup: As this product may be located at an external warehouse delivery times may be delayed by up to 48 hours. In-store pickup may not be available on this item.

Check out the Saramonic UwMic15 RX+TX 16-Channel Digital UHF Wireless Lavalier Microphone System's Key Features
(Saramonic UWMIC15V2)

• Genuine Australian Saramonic Warranty
• Peace of Mind Purchase Guarantee (bottom of page)
• Reliable, broadcast-quality audio
• Wireless transmitter with lavalier microphone
• UHF Frequency Range: 555 MHz – 579 MHz; 16 selectable channels
• Operating Range: Over 100m in open areas or 60m with obstacles
• Easy-to-read LCD displays



Overview

The Saramonic UWMIC15 UHF Wireless Lavalier Microphone System provides stable, interference free audio in portable, compact and low cost package. This system is a perfect fit for DSLR videography, field recording and interviews, broadcast TV, ENG, providing dependable audio broadcasting and recording.

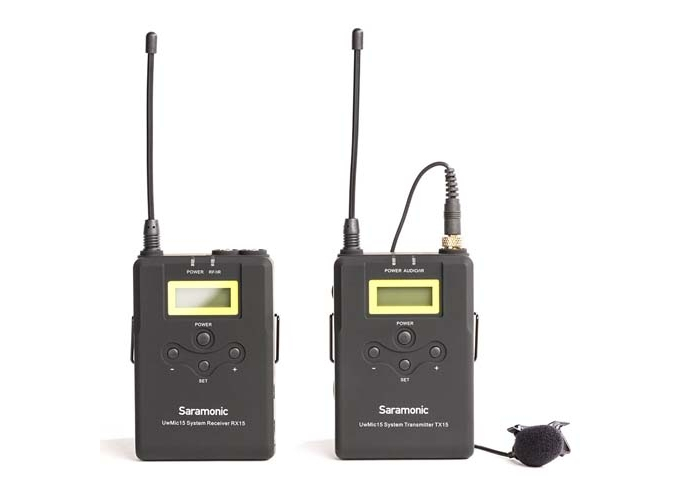

The system includes a camera-mountable, wireless receiver, wireless body-pack transmitter and clip-on lavalier mic.

Receiver
The Saramonic UwMic15-RX15 is a camera-mountable integrated wireless receiver. It features an easy-to-read LCD display and infrared synchronization between transmitter and receiver.

Equipped with an auto-scan function, the RX15 can automatically search for an available transmission frequency. The headphone jack enables real-time monitoring or the receiver via headphones, especially useful for cameras that lack a monitor output.

Transmitter
This compact transmitter employs a crystal-controlled PLL synthesizer. It is equipped with a muting function and a BMP-type mic input. The RF power output can be switched among high, middle and low.

Channels
16

Oscillator type
PLL synthesizer

Output
3.5mm mini jack

Antenna
1/4 wire antenna

Audio output level
-60 dBV

Headphone output level
30mW (16 ohm)

Frequency Range
555 MHz – 579 MHz

Sensitivity
-95 dBm

Signal to noise ratio
70 dB or more

Voice delay
12 ms

Reference deviation
+/- 5 kHz

Frequency response
40 Hz to 18 kHz (+/- 3dB)

Distortion
0.5% or less

Spur suppression
-60 dB

Weight
73g (w/out batteries)

Battery
2 AA size batteries

Dimensions
180 x 64 x 23 mm

• 1 x Saramonic RX15 portable UHF receiver
• 1 x Saramonic TX15 UHF transmitter
• 1 x Saramonic SR-M1 omnidirectional lavalier microphone
• 1 x alligator-style lavalier mic clip
• 1 x camera shoe mount with an integrated 1/4 20 tripod thread
• 1 x short coiled locking mini-plug output cable with gold-plated connectors
• 1 x short locking gold-plated mini-plug to XLR male output cable
• 2 x removable belt clips
• 2 x SR-UMBC1 battery compartments
