Rode RØDELink Filmmaker Kit Wireless Microphone System
Rode RØDELink Filmmaker Kit Wireless Microphone System
(RODE 1RODLNKFM)
We Think You Should Know
- Australian Rode Warranty
- Purchase Guarantee (see T&Cs)
- Series II, 2.4GHz digital transmission
- 128-bit encryption
- Up to 100 metres range*
- OLED display (on receiver)
- One button pairing
- Three level gain control
- AA battery or USB powered
- Includes broadcast lavalier microphone
- Two year extended warranty when you register your microphone
Overview

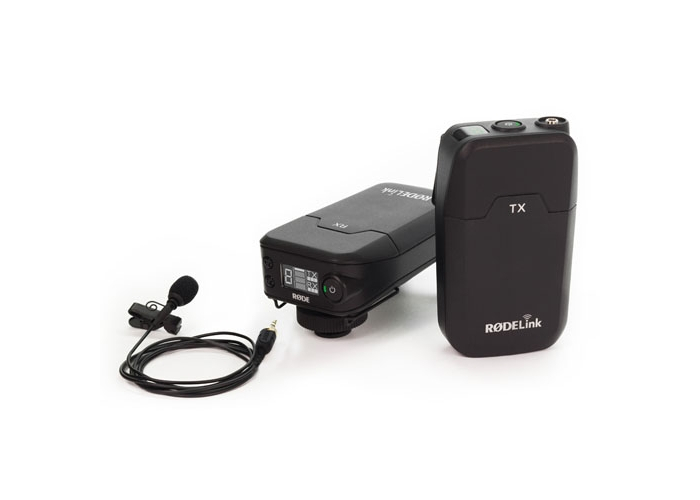

RØDELink represents the next generation of digital wireless systems. Using a Series II 2.4GHz digital transmission with 128-bit encryption, it is able to constantly monitor and hop between frequencies to maintain the strongest possible signal level at a range of up to 100 metres* (over 100 yards). The RØDELink Filmmaker Kit provides everything you need to start shooting video wirelessly, including a receiver, transmitter and broadcast-grade lavalier microphone. The receiver (RX-CAM) features an OLED display with information on level, battery status (receiver and transmitter), mute and channel selection. The unit can be mounted on a standard camera shoe mount, 3/8" thread or belt-clip, and for added versatility the shoe mount can be located in one of two positions. The lightweight transmitter (TX-BELT) can be fitted to a belt or clothing and features a locking thread to ensure the microphone connection is as secure as possible. RØDE has included an omnidirectional lavalier microphone in the kit to provide the highest possible audio reproduction quality.
* range estimations based on optimal environment
Features
TX-BELT
- Slimline and lightweight – only 190gm
- 4V plug-in power supplied to microphone
- Single button functionality – mute, mute lock and power on/off
- Status indicator LED – clearly displays battery life and mute status
RX-CAM
- Internal antenna
- Series II 2.4GHz digital frequency with encrypted signal
- OLED display – shows battery life, signal status and peak warning
- 3 level position allows you to adjust the signal level going into your device
RØDE
RØDE is an Australian owned and operated audio company focusing on supplying professional microphone that comprising three warehouses with over 110,000 square feet, more than 60 million AUD in precision machinery and an international team of more than 250 people across highly skilled disciplines: electronics engineering, industrial design, technical engineering, robotics, audio and acoustics engineering, metal production, toolmaking, injection-mould technology, logistics, assembly, quality control, finance, marketing and sales.
| Transmission type | 2.4GHz Fixed Frequency Agile System |
| System dynamic range | 112dB |
| Range (distance) | Up To 100m |
| Frequency range | 35Hz - 22kHz |
| Maximum output level | 1v Rms (2.8v P-p) |
| Max input signal level | 1v Rms (2.8v P-p) |
| Max latency | 4ms |
| Power source | 2 X AA Battery Or MicroUSB |
| Antenna | Internal |
| Output connection | 3.5mm TRS Locking Jack Socket - Dual Mono |
| Output impedance | 300Ω |
| Dimensions | 111mm X 65mm X 52mm |
| Weight | 190gm |
| Power source | 2 X AA Battery Or MicroUSB |
| Antenna | Internal |
| Input connection | 3.5mm TRS Locking Jack Socket |
| Input impedance | 10kΩ |
| Dimensions | 111mm X 65mm X 40mm |
| Weight | 190gm |
| Acoustic Principle |
Permanently Polarised Condenser |
| Polar Pattern |
Omni-directional |
| Output Impedance |
3k Ω Typical |
| Frequency Range |
20Hz – 20kHz |
| Maximum SPL |
110 dB SPL (@ 1kHz, 1% THD into 1Ω load) |
| Sensitivity |
-33.5db re 1 Volt/Pascal (21.00mV @ 94 dB SPL) +/- 2dB @ 1kHz |
| Signal to noise Ratio |
67 dB |
| Equivalent Noise (A-weighted) |
27 dB Typical |
| Dynamic Range |
83 dB Typical |
| Dimensions |
1200.00mmH x 4.50mmW x 4.50mmD |
- RODE Link LAV Microphone
- RX-CAM Wireless Receiver
- TX-BELT Wireless Trasnmitter
- Capative TRS Cable
Peace of Mind Purchase Guarantee
This product is supplied via Rode Australia and enjoys the FULL benefits of the 'Genuine Rode Australian Warranty'. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). In the event that this product should fail please contact our service department or you can speak with Rode Australia directly.
We are a FULLY AUTHORISED Australian retailer for Rode Australia.
