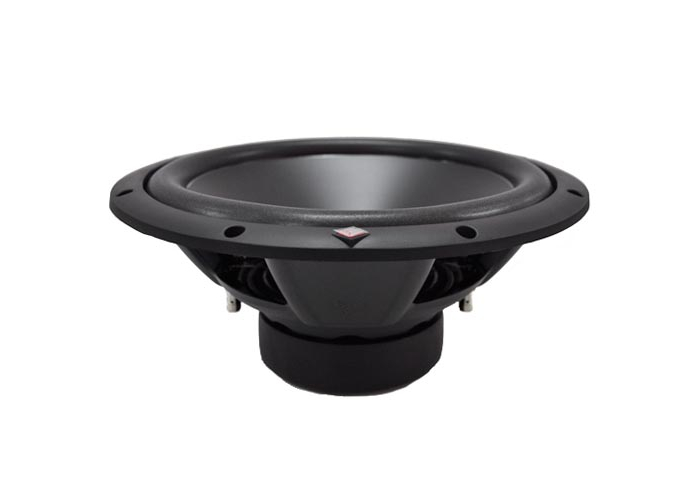

Rockford Fosgate Prime R2D4-10 10" DVC Subwoofer

Rockford Fosgate Prime R2D4-10 10" DVC Subwoofer's Key Features
(Rockford Fosgate R2D410)

• 12-Month Australian Warranty
• Purchase Guarantee (see T&Cs)
• DUAL Voice Coil
• 10" Subwoofer
• 500 Watts Peak
• 250 Watts RMS
• 4 Ohms
• Anodized aluminium voice coil former

Overview

The Rockford Fosgate R2D4-10 is a high-performance 10-inch subwoofer designed to deliver deep, powerful bass for car audio systems. Part of Rockford Fosgate's Prime series, this subwoofer offers a blend of quality construction, durability, and impressive sound performance, making it an excellent choice for casual listeners and car audio enthusiasts.

Key Features and Benefits:

10-Inch Size: The R2D4-10 features a 10-inch woofer, balancing size and performance well. It is large enough to produce deep, impactful bass but compact enough to fit in various vehicle configurations.

Dual Voice Coils: Equipped with dual 4-ohm voice coils, this subwoofer offers flexibility in wiring configurations. You can wire the subwoofer in parallel for a 2-ohm load or in series for an 8-ohm load, allowing compatibility with a wide range of amplifiers.

Mica-Injected Polypropylene (MIPP) Cone: The subwoofer's cone is made from mica-injected polypropylene, which is lightweight yet rigid. This material provides accurate bass reproduction and durability, ensuring the subwoofer can handle high power levels without distortion.

StampCast Basket with Integrated Spider Venting: The R2D4-10 features a StampCast basket with integrated spider venting, which helps keep the motor cool and enhances the subwoofer's longevity and performance. This design also reduces resonance, ensuring cleaner sound output.

Linear Spider with 16 AWG Tinsel Leads: The linear spider design with 16 AWG tinsel leads enhances the subwoofer's durability and power handling capabilities, providing reliable performance even under high power conditions.

Compressed Foam Surround: The subwoofer uses a compressed foam surround, which offers high excursion capability and durability. This design ensures the subwoofer can produce deeper bass without compromising structural integrity.

Technical Specifications:

• Size: 10 inches
• Power Handling: 250 watts RMS, 500 watts peak
• Voice Coil: Dual 4-ohm
• Frequency Response: 45 Hz - 250 Hz
• Sensitivity: 89 dB @ 1 watt/1 meter
• Mounting Depth: 4.319 inches (109.7 mm)
• Cutout Diameter: 9.125 inches (231.8 mm)
• Xmax (Maximum Excursion): 12 mm
• Re (DC Resistance): 3.6 ohms (per coil)

The Rockford Fosgate R2D4-10 subwoofer is designed to provide powerful, high-quality bass in a durable and flexible package. Its combination of advanced materials, robust construction, and versatile wiring options make it an excellent addition to any car audio system, delivering the deep, impactful bass that Rockford Fosgate is known for.

Rockford Fosgate - The Company

In 1973, in a garage, Jim Fosgate created his first car amplifier and the Rockford Fosgate brand was born. Since then Rockford Fosgate has been at the forefront of the car audio industry creating some of the loudest and toughest car speakers and car amplifiers money can buy without sacrificing sound or build quality.

General
Size: 10"
Nominal Impedance: Dual 4-Ohm

Power Handling
Power Handling (Watts RMS):
250 Watts RMS
500 Watts Max

Dimensions
Voice Coil Diameter: 2" / 51 mm
Magnet Weight (oz): 47.7 oz. / 1.35 kg
Speaker Connector: Dual 12 AWG compression
Woofer Displacement: 0.046 cu.ft. / 1.3 Liters
Cutout Diameter: 11.25 in. / 285 mm
Mounting Depth: 5.067 in. / 128.7 mm

• 1 x Prime R2D410 10" DVC Subwoofer
