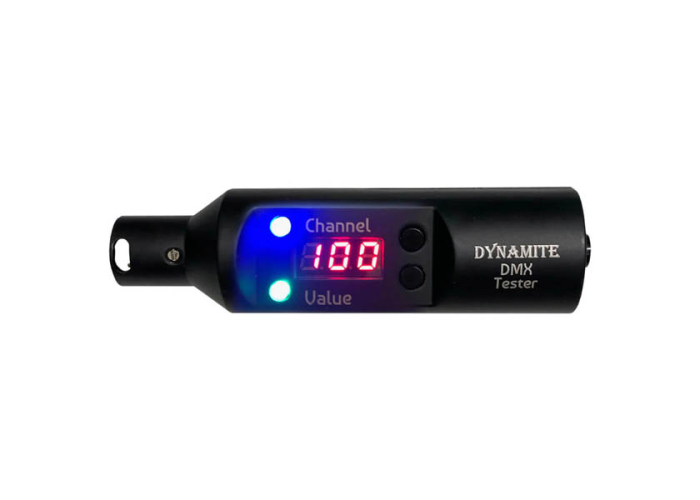

Quasar Science Dynamite DMX Tester

Quasar Science Dynamite DMX Tester
(Quasar Science DC-DDT)

We Think You Should Know

• Australian Quasar Science Warranty
• Purchase Guarantee (see T&C's)
• Simple Operation
• Battery Powered
• 5-Pin Male Connector
• Auto Sleep & ON/OFF Button
• Display Channel Levels
• Works with Rainbow Light Series

Overview

The Quasar Science Dynamite DMX Tester reads and identifies lighting cables and to which Universe they belong. Compatible with Quasar Rainbow 2 and Double Rainbow LED lights. Leverage the untapped power of "The Universe Channel 512" and simply connect the Dynamite DMX Tester to any cable in your Universe to:

• Read the Universe Channel
• Check for a DMX signal
• Check the level of a DMX Channel
• Channel level can be read in percent or value
• Terminate the DMX Line

Tiny and compact, coming in at 5" L x 1.5" W x 1.75" D and weighing under 5 ounces, the Dynamite DMX Tester will be an essential tool in every Lighting Professional's kit with sets utilizing more and more data-centric technologies.

Features

What is the Universe Channel Theory?

The Universe Channel Theory is a programming theory to park Channel 512 of each Universe to the percent of that Universe number. With this simple programming hack, any technician can plug the Dynamite DMX Tester into a DMX line, optosplitter, or node, tune to channel 512 by pressing both buttons and instantly tell what universe is outputting to the tester.

Plug the Dynamite DMX Tester into a cable or device, and press both buttons to jump to Channel 512! The Dynamite DMX Tester can be used in % mode, 0-100% or can be used in binary mode 0-255. Because consoles have slight rounding variations, you can also be more accurate with the binary value. Just make sure that your technicians know to read binary!

Simple Operation
The Blue Channel LED will light up and display the Selected channel. Then the Green Value LED will light up and display the DMX Value

Battery Powered
Uses 2 - CR2032 batteries.

Mode Switch
Press and hold both buttons to toggle between percent (%) and DMX Value (0-255). This will display the battery voltage while switching

ON/OFF Button
Easily turn the Dynamite DMX Tester on and off with the press of a button.

Auto Sleep
Not using it? After 10 seconds of inactivity, the Tester will automatically turn off.

DMX Termination
Terminate the DMX line just by connecting the tester.

Quasar Science

Quasar was started in 2012 in a dingy Gold Room on one of the oldest studio lots in Los Angeles, California by a group of I.A.T.S.E. Local 728 Studio Electrical Lighting Technicians. With over 100 years of combined expertise in lighting movie sets, Quasar is a worldwide brand known for its understanding of on-set workflow, its customer support and accountability to the products it offers.
