Cast Aluminium Heatsink Dust Cap
Absorbs & Dissipates heat directly from the thermal voice coil.
Aluminium Dust Cap Strength’s Rigidity
Eliminates cone flex & eradicated distortion during the intense excursion

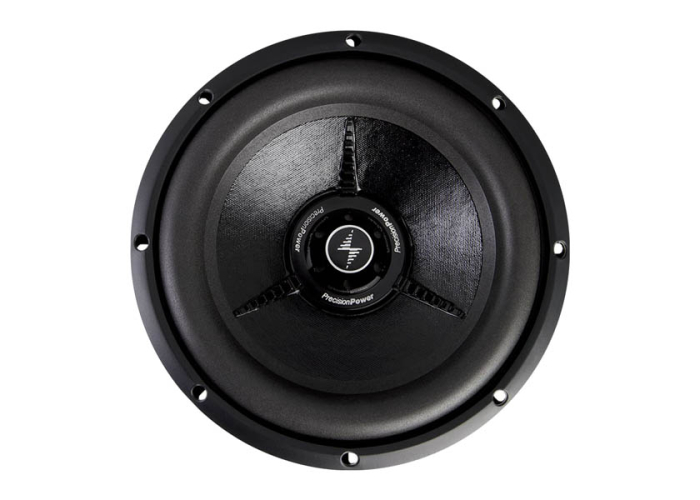

Precision Power AW.10D4 1000W 10″ DVC Subwoofer
SKU
AW10D4
In stock
Buy Now
Pay Later
Buy now
pay later
Precision Power AW.10D4 Atom Series 10″ DVC Subwoofer
(Precision Power AW.10D4)
We Think You Should Know
- Australian Precision Power Warranty
- Purchase Guarantee (see T&Cs)
- Dual Voice Coil 10" Subwoofer
- 1000W Maximum Power
- 500W x 1 RMS Power Output - 4Ω
- Cast Aluminium Heatsink Dust Cap
- Dual Poly-Cotton Suspension for Magnetic Gap
- Hot Forged T-Yoke with Back Venting
Overview
Precision Power AW.10D4 has an aluminium dust cap with three fins that brace the cone eliminating cone flex during high excursion and acting as a heatsink, which is essential to make the subwoofer last longer.
ATOM subs use a composite sandwich cone with a polypropylene surface for durability and Spruce pulp backing for smooth low bass. Also, it includes an extended tap top plate, which expands the magnetic field resulting in the dynamic sounds & performance quality you demand and expect.
Features
Dual Poly-Cotton Suspension for Magnetic Gap
Dampens violent accelerations ensuring diaphragm alignment
Hot Forged 1-Piece T-Yoke w/ Center pol & Back Venting
Venting milled into the T-Yoke & Backplate removed by Convention Transfer
Precision Power
Precision Power was initially created with Sound Quality Audio enthusiasts in mind. Today’s Precision Power’s mission is to lift the brand’s image beyond consumers’ expectations. Our engineering bravery will set new standards for Car Audio & Precision Power.
Competitive price points that reflect today’s market without degrading performance are possible only by the most recent technologies such as SMT production, newer advanced amplifier board topology, and premium grade output components that provide best-in-class sound quality at reasonable prices.
| SPECIFICATIONS | AW.10D4 |
|---|---|
| Max Power | 1,000 Watts |
| RMS Power | 500W |
| Efficiency (1w/1m) | 82.75 |
| Voice Coil Configuration | 2.5″ DVC 4Ω |
| Mounting Depth | 5.5″ |
| Optimum Sealed ft³ | 0.75 |
| Optimum Ported ft³ | 1.5 |
|
THIELE/SMALL PARAMETERS |
|
|---|---|
| Imp. (Ohm) | Dual 4 |
| Re (Ohms) | 7.47 |
| Z (Ohms) | 8 |
| Fs (Hz) | 29.34 |
| Qes | .66 |
| Qms | 6.26 |
| Qts | .60 |
| Diam | 10 |
| Vas (ft³) | 30.12 |
| Mms (g) | 159.89 |
| Cms (mm/n) | 176.82 |
| Xmax | 22.5 |
| Sd (in²) | 1.00Ft³ |
| Vd (ft³) | 2.00Ft³ |
| Sen (db) | 82.75 |
| Mounting Depth | 5.5″ |
- Precision Power AW.10D4 Atom Series 10" Dual Voice Coil Subwoofer
Peace of Mind Purchase Guarantee
This product is supplied via Precision Power Australia and enjoys the FULL benefits of the 'Genuine Precision Power Australian Warranty'. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). In the event that this product should fail please contact our service department or you can speak with Precision Power Australia directly.
We are a FULLY AUTHORISED Australian retailer for Precision Power Australia.
