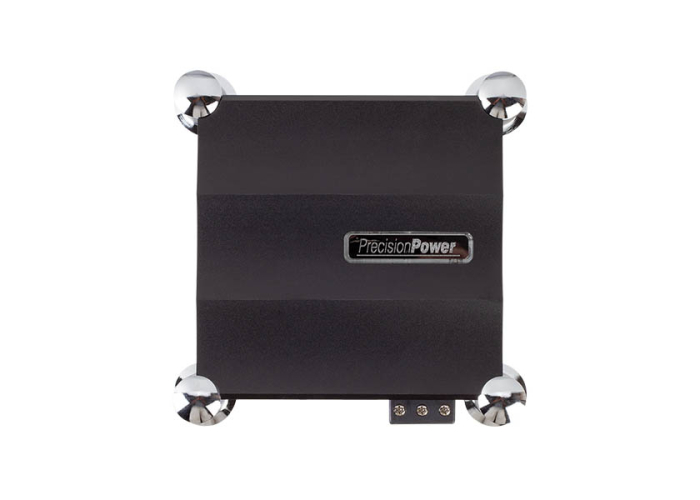

Precision Power A400.4D 4-Ch 800W Amplifier

Precision Power A400.4D Atom Series 4-Ch Class-D Amplifier
(Precision Power A400.4D)

We Think You Should Know

• Australian Precision Power Warranty
• Purchase Guarantee (see T&Cs)
• 4Ch Class-D Amplifier
• 800W Maximum Power
• 60W x 4 RMS Power Output - 4Ω
• 100W x 4 RMS Power Output - 2Ω
• Frequency Response 20Hz - 20kHz
• Variable High-Pass & Low-Pass Filter

Overview

Ultra-compact D-Class 4ch Amplifier with one-side terminals for easy installation, High-Level Signal Input and hybrid aluminium alloy heatsink for heat optimum dissipation. With 800W max power, an individually regulated preamp/crossover power supply ensures signal purity.

Atom Series

ATOM amplifiers adopt the most exemplary Korean Class-D performance, reliability, and footprint of the original ATOM and iOn platforms. At first glance, you’ll notice several key improvements. ATOM’s signal inputs, power/ground, and speaker connections are relocated to the chassis’s leading edge for an easier, more appealing install. All pre-amp & crossover options are conveniently located on the backside. You might not notice additions to the circuit board, including improved power supply & output stage components & monoblock bridging capability.

The installation of ATOM amplifiers is unique, using mounting pedestals at each corner. The pedestals elevate the heatsink, improving airflow around and underneath the chassis. Additionally, rubber grommets under and inside each pedestal electrically isolate the amplifier chassis from the vehicle chassis, reducing the potential for ground loop noise.

Precision Power

Precision Power was initially created with Sound Quality Audio enthusiasts in mind. Today’s Precision Power’s mission is to lift the brand’s image beyond consumers’ expectations. Our engineering bravery will set new standards for Car Audio & Precision Power.

Competitive price points that reflect today’s market without degrading performance are possible only by the most recent technologies such as SMT production, newer advanced amplifier board topology, and premium grade output components that provide best-in-class sound quality at reasonable prices.

GENERAL

• 800W Maximum Power
• 60W x 4 @ 4-ohm Stereo
• 100W x 4 @ 2-ohm Stereo
• 200W x 2 @ 4-ohm Bridged
• Variable 50-500Hz 12dB High Pass Filter
• Variable 50-500Hz 12dB Low Pass Filter
• Total Harmonic Distortion: 0.05% @ 4-ohm
• Frequency Response: 20Hz - 20kHz
• Signal-to-Noise Ratio: 90dB
• Channel Separation: ≤55dB
• Input Sensitivity: 250mV-6V
• Dimensions: 6"(W) x 2.25"(H) x 6"(D) / 15.24cm(W) x 5.72cm(H) x 15.24cm (D)

ADDITIONAL SPECIFICATIONS

• Sequenced Delays Eliminate Residual Power-Up/Power-Down Pops
• Differential RCA Inputs Isolate 12v/Audio to Ground
• Hybrid Aluminium Alloy Heatsink for Heat Optimum Dissipation
• MOSFET Power Supply w/ Audiophile Grade IR™ Transistors
• Military Grade SMT PCB for Dynamic Performance
• Volume, Low ESR Capacitance Banks Compensate Power Supply Ripple
• Individually Regulated Preamp/Crossover Power Supply Ensures Signal Purity
• Variable 12dB High Pass, Low Pass, & Subsonic Crossovers
• High-Level Signal Input
• 12dB Bass Boost Increase Low Octave Harmonics

• Precision Power A400.4D Atom Series 4-Ch Class-D Amplifier
