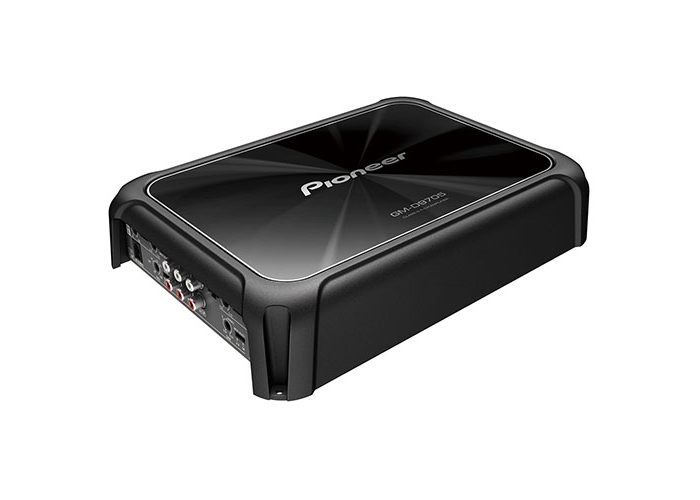

Pioneer GM-D9705 Class-D 5-Channel Amplifier
Pioneer GM-D9705 Class-D 5-Channel Amplifier with Wired Bass Boost Remote
(Pioneer GM-D9705)
We Think You Should Know
- Australian Pioneer Warranty
- Purchase Guarantee (see T&C's)
- 5Ch Class D Amplifier
- 2000W Maximum Power
- 75W x 4 + 350W - RMS 4Ω
- 100W x 4 + 600W - RMS 2Ω
- 5 / 3 Channels
- Equipped with A/B-SW Input Select
Overview
Pioneer’s 5-channel, GM-D9705 Champion-Series amplifier produces impressive power in an all-in-one solution designed to deliver big sound without sacrificing space. Ideal for any vehicle including compact vehicles, the GM-D9705 also offers installation flexibility to suit your different needs.
Features
Pioneer GM-D9705 - Flexible Installation & Connectivity
The GM-D9705 Champion-Series amplifier offers an unparalleled level of flexibility, easily configurable to either 2 or 4 channels with both line-level speaker and pre-out audio input. Besides supporting up to 4 speakers, it is also equipped with a dedicated subwoofer (sub) output and variable low-pass filter, ensuring a seamless integration of the speakers and sub.
Pioneer GM-D9705 - Speaker Line Input Sensor
Connect your existing OEM unit without the hassle of add-on adapters.
Pioneer GM-D9705 - Variable LPF
For extra flexibility, a variable LPF makes audio frequency more adjustable according to subwoofer characteristics and personal listening preferences. The LPF is adjustable from 40 Hz to 240 Hz.
Pioneer GM-D9705 - Class FD Technology
Enjoy first-class sound and powerful volume on a versatile system at half the size of other units.
Pioneer GM-D9705 - Turn Up The Bass
The GM-D9705 also features a Bass Boost Remote for optimal bass level adjustment according to listening preferences and music characteristics.
Pioneer GM-D9705 - Total Vibration Control
This minimises the detrimental impact of vibration like signal distortion, which is a common issue in an automotive environment and can potentially affect the sound.
Pioneer GM-D9705 - Automatic Signal Sensing and Turn-On
Once an active signal has been detected, this function will automatically select the relevant input and switch on the amplifier to initiate music playback.
Pioneer GM-D9705 - Protection Control System
Designed to bolster reliability, this system reduces the risk of damage due to overly high input power, by sensing the internal temperature and moderating the signal on-the-fly.
Pioneer Electronics
Pioneer is a Japanese multinational corporation founded in 1937 that specializes in digital entertainment products. It's one of the most trusted brands in practically any field of car audio. With the renowned innovation, persistence and integrity of Japanese businesses, you can expect the latest technology and the highest possible quality from Pioneer car audio products.
| Specifications | |
| Power Source | 14.4 V DC (10.8V To 15.1 V Allowable) |
| Grounding System | Negative |
| Current Consumption | 55 A (at Continuous power, 4Ω) |
| Avergae Current Consumption | 5.2 A (4Ω) |
| Fuse | 30 A x 3 |
| Dimnesion | 302mm x 60mm x 215mm |
| Weight | 3.3kg (no cables connected) |
| Maximum Power Output (peak) | 150 W x 4 + 700 W 4Ω/ Total 2000W |
| Continuous Power output | 75 W x 4 + 350 W (at 14.4V, 4Ω) |
| 200 W x 2 + 350 W (at 14.4V, 4Ω) | |
| 100 W x 4 + 600 w (at 14.4V, 2Ω) | |
| Load impedance | 4Ω (1Ω to 8Ω Allowable) |
| Frequency Response | |
| A/B CH | 10 Hz to 50 kHz |
| SUB CH | 10 Hz to 500 Hz |
| Signal-to-noise ratio | 95 dB (IEC-A network) |
| Distortion | 0.05% (10 W, 1kHz) |
| Low Pass Filter A/B CH | |
| Cut off Frequency | 40 Hz to 500 Hz |
| Cut off Slope | -12dB/oct |
| Low Pass Filter SUB CH | |
| Cut off Frequency | 40 Hz to 500 Hz |
| Cut off Slope | -12dB/oct, -24dB/oct |
| High Pass Filter A/B CH | |
| Cut off Frequency | 40 Hz to 500 Hz |
| Cut off Slope | -12dB/oct |
| Bass Boost: SW CH | |
| Frequency | 50 Hz |
| Level | 0 dB to 18 dB |
| Gain Control | |
| RCA | 200 mV to 6.5V |
| Speaker | 0.8 V to 16V |
| Maximum input level / impedance | |
| RCA | 6.5 V / 25 kΩ |
| Speaker | 16 V / 12 kΩ |
| CEA2006 Specifications | |
| Power Output | 75 W RMS x 4 + 350 W x 1 RMS (4Ω and <1% THD+N) |
| S/N ratio | 75dBA (reference: 1 w into 4Ω) |
Please Note: Specifications and the design are subject to change without notification
When this amplifier receives an audio signal, The Average current consumption is nearly the maximum current consumption. Use this value when working out total current consumption by multiple power amplifiers
- Pioneer GM-D9705 5 Channel Car Amplifier
- Speaker Input Wire
- Bass boost level remote control
- Bass boost level remote control wire (5m)
Peace of Mind Purchase Guarantee
This product is supplied via Pioneer Australia and enjoys the FULL benefits of the 'Genuine Pioneer Australian Warranty'. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). In the event that this product should fail please contact our service department or you can speak with Pioneer Australia directly.
We are a FULLY AUTHORISED Australian retailer for Pioneer Australia.
