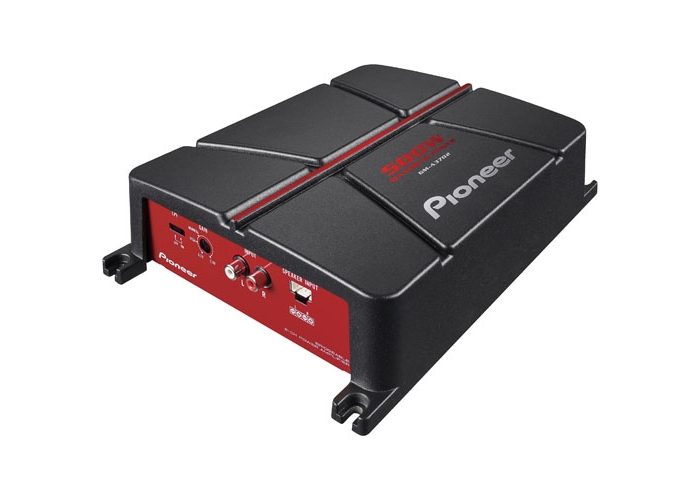

Pioneer GM-A3702 500W 2 CH Car Amplifier
Click on above image to view full picture
Customise your own bundle and SAVE!
- [11]Accessories
-
How To Build A Bundle
The following accessories can be bundled with your purchase by checking the green ‘Include with Product’ button. You can add as many items to your order as you require and then simply ‘Add to Cart’ to complete order.
- Product Info
-
Product Info
Check out the Pioneer GM-A3702 500W 2 CH Car Amplifier's Key Features
(Pioneer GMA3702)- Genuine Pioneer Australian Warranty
- Peace of Mind Purchase Guarantee (bottom of page)
- 500 watts maximum power output
- 2 Channel amplifier
- 2-8 ohms allowable
Overview
From dramatic distinction to dramatic design, Pioneer's new GM-Series amplifiers are thrillers in every sense, pushing the limits of flexibility and functionality.
The 2-channel GM-A3702 delivers 500 watts max in a compact design - plenty of juice to power your speakers. It's also got built-in high-pass crossover, speaker level inputs for easy connection to an OEM headunit, and oversized power terminals.
With a one-body heat sink and gain adjustment of up to 6.5V, you can turn your in-car audio experience into the sound staging environment that you're looking for.
The GM-A3702 offers support for 2 Ohm and 4 Ohm speakers, and can produce up to 400 W of power when bridged.Pioneer Electronics
Pioneer is a Japanese multinational corporation founded in 1937 that specializes in digital entertainment products. It's one of the most trusted brands in practically any field of car audio. With the renowned innovation, persistence and integrity of Japanese businesses, you can expect the latest technology and the highest possible quality from Pioneer car audio products.
Peace of Mind Purchase Guarantee
This product is supplied via Pioneer Australia and enjoys the FULL benefits of the 'Genuine Pioneer Australian Warranty'. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). In the event that this product should fail please contact our service department or you can speak with Pioneer Australia directly.We are a FULLY AUTHORISED Australian retailer for Pioneer Australia.
Disclaimer
Due to differing operating costs associated with selling products via different marketplaces such as eBay, Amazon or our Online Store, our pricing may vary as a result. - Tech Specs
-
Technical Specifications
MAIN FEATURES
- Maximum Output Power
500W (Bridged) or 2 x 170W (4 Ω)
- CEA 2006 Power (THD + N = 1%
2x 60W (4 Ω)
- Continuous Power Output (RMS)
2x 60W (4 Ω) or 1 x 190W (4 Ω bridged) or 2 x 90 W (2 Ω)
- Load Impedance Capability
2-8 ohm allowable (stereo)
- Frequency Response
10Hz~70kHz (+0dB, -3dB) Hz
- Distortion
< 0.05%
- S/N Ratio
>95 dB
- LPF
80 Hz (-12 dB/oct)
- RCA Terminals
Yes,Input
- Speaker Terminals
Screw-type
- Chassis Size (W x H x D)
238(W) x 60(H) x 180(D) mm
- Unit Weight
1.4 kg
- Maximum Output Power
- In The Box
-
What's Included?
- Pioneer GM-A3702 2 Channel Bridgeable Amplifier
