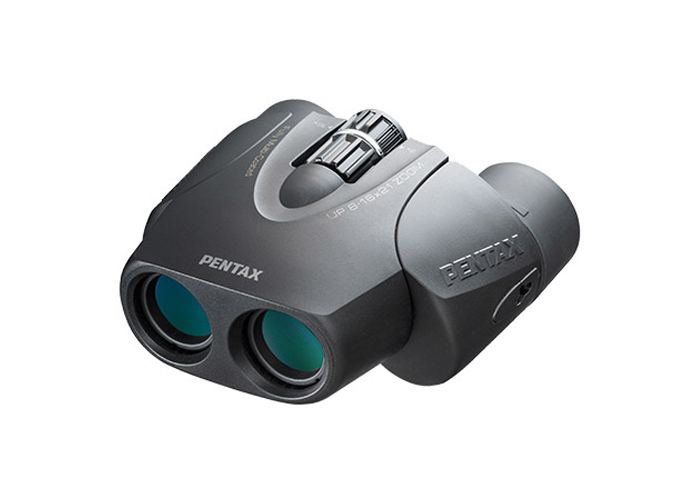

Pentax UP 8-16x21 Zoom Binoculars

Pentax UP 8-16x21 Zoom Binoculars
(Pentax 61961)

We Think You Should Know

• Genuine Australian Pentax Warranty
• Peace of Mind Purchase Guarantee
• Aspherical Lens Elements
• BAK4 Porro Prisms
• Fully Multicoated Optics
• 8-16x Optical Zoom
• Angle of View Range: 5-3°
• Center Focusing
• Sliding Eyecups
• 1/4"-20 Tripod Socket



Overview

Pentax's compact and lightweight black 8-16x21 U-Series UP Binoculars combine aspherical optical elements and BAK4 Porro prisms to deliver edge-to-edge image sharpness with a wide angle of view. The optical elements are also fully multicoated to provide a high transmission of light. With an 8-16x range of magnification and 21mm objectives, you obtain a wide zooming range and a compact form factor. You can easily spot your targets with a 5° angular field of view at 8x magnification and quickly zoom in on them with the optical zoom. To reduce image jitter at high zoom factors or for prolonged observations, you can connect the binocular to a tripod via an integrated 1/4"-20 socket. In addition to observing distant scenes, birds and game, the minimum focus of 9.9' allows you to study in detail close objects like animal footprints, marks or landscape features. The binocular also features a 2.6-1.3mm exit pupil range, a 14-11mm eye relief range, an interpupillary and a diopter adjustments.

The binocular is very compact, lightweight, and features a single piece frame that houses objectives, which allows for a synchronized interpupillary adjustment. To accommodate eye glasses wearers, the binocular offers sliding rubber eyecups.

Features

Optical Performance

• Optical zoom range: 8-16x
• Aspherical optical elements offer edge-to-edge image sharpness
• Interpupillary adjustment
• Diopter adjustment

Construction Details

• Single piece objectives' frame allows for a synchronized interpupillary adjustment
• Contoured body provides a comfortable grip
• Center focus knob offers an easy focusing



Prism Type
Porro

Magnification
8-16x

Objective Lens Diameter
21mm

Angle of View
8x: 5° (actual)
16x: 3° (actual)

Field-of-View
8x: 261' @ 1000 yd / 86.65 m @ 1000 m
16x: 156' @ 1000 yd / 51.79 m @ 1000 m

Minimum Focus Distance
9.9 / 3.02 m

Exit Pupil Diameter
8x: 2.6 mm
16x: 1.3 mm

Eye Relief
8x: 14 mm
16x: 11 mm

Focus Type
Center

Tripod Mount
Yes

Dimensions
4.37 x 4.37 x 2.1" / 11.10 x 11.10 x 5.33 cm

Weight
10.9 oz / 309 g

• Pentax UP 8-16x21 Zoom Binoculars
• Neck Strap
• Carrying Case
• 2 x Eyepiece Caps
