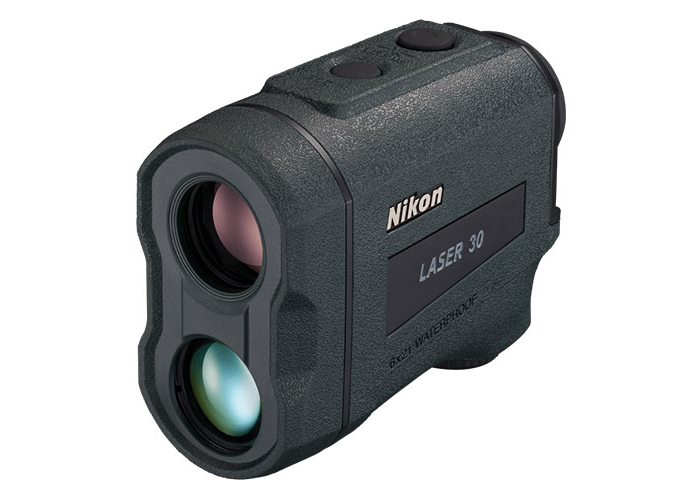

Nikon Laser 30 Laser Range Finder

Laser 30
( Nikon BKA156YA)

• Australian Nikon Warranty
• Purchase Guarantee (see T&C's)
• Actual distance & angles
• Durable, tough construction
• Multipurpose outdoor use
• Compact and portable

Overview

The Laser 30 is a versatile and robust rangefinder designed for outdoor adventures, forestry, construction, utility work, and surveying. It provides fast and accurate measurements of horizontal distance, actual distance, and angles in 0.1 yard increments, with a maximum range of 1,460 m (1,600 yards). Built to withstand challenging conditions, the Laser 30 ensures reliable performance in all environments. Its multipurpose design makes it suitable for professionals and enthusiasts who require precise distance and angle readings. Compact and ergonomic, it is easy to handle and carry, combining speed, accuracy, and durability for demanding outdoor and work applications.

Key Features:

Fast, Accurate Measurement
Quickly measures horizontal distance, actual distance, and angles in 0.1 yd increments for precise readings.

Maximum Range
Provides distance readings up to 1,460 m (1,600 yards), suitable for outdoor, forestry, construction, and surveying applications.

Multipurpose Functionality
Ideal for professional and recreational use requiring reliable distance and angle measurements.

Durable Construction
Built to withstand tough conditions, ensuring consistent performance in challenging environments.

Compact & Portable
Ergonomic, lightweight design makes it easy to carry and use in the field.

Nikon Corporation

One of the world's largest and most respected photographic companies turned 100 this 2017. Nikon was one of the innovators of the DSLR camera and was the first company to enable video recording on a DSLR camera, in fact, NASA called on Nikon to provide the photographic equipment on the Space Shuttle. No longer in the shadow of its competitors, Nikon now stands up as a world leader if not the world leader in digital photography and we believe that Nikon always represents great value and even better technology.

Measurement range

Distance: 7.3-1,460 m / 8-1,600 yd.
Angle: ±89°

Maximum measurement distance (tree)1

1,140 m/1,250 yd.

Maximum measurement distance (deer)1

1,000 m/1,100 yd.

Display (increment)

Actual Distance:every 0.1 m/yd.
Horizontal Distance:every 0.1 m/yd.
Height:every 0.1 m/yd.
Angle: every 0.1°

Accuracy (actual distance) (m/yd.)2

±0.50 m/yd. (shorter than 700 m/yd.)
±1.00 m/yd. (700 m/yd. and over, shorter than 1,000 m/yd.)
±1.50 m/yd. (1,000 m/yd. and over)

Finder - Magnification (x)

6

Finder - Effective objective diameter (mm)

21

Finder - Actual field of view (º)

7.5

Finder - Exit pupil (mm)

3.5

Finder - Eye relief (mm)

18.0

Diopter adjustment

±4 m-1

Dimensions (L x H x W) (mm/in.)

96 x 74 x 42 / 3.8 x 2.9 x 1.7

Weight (excluding battery) (g)

175

Operating environment - temperature

-10 — +50

Operating environment - humidity

80 %RH or less (without dew condensation)

Power source

CR2 lithium battery × 1 (DC 3V)
Automatic power shut-off (after approx. 8 sec. unoperated)

Waterproof performance

Waterproof (up to 1 m/3.3 ft. for 10 minutes), fogproof
Battery chamber is rainproof — JIS/IEC protection class 4 (IPX4) equivalent
(under Nikon's testing conditions

Battery life3

Approx. 8,500 times (at approx. 20°C (68°F))

Laser classification

IEC60825-1: Class 1M/Laser Product
FDA/21 CFR Part 1040.10: Class I Laser Product

Electromagnetic compatibility

FCC Part15 SubPartB class B, EU:EMC directive, AS/NZS, VCCI classB, CU TR 020, ICES-003

Environment

RoHS, WEEE

Wavelength (nm)

905

Pulse duration (ns)

9.7

Output (W)

33.8

Beam divergence (mrad)

Vertical: 0.25, Horizontal: 1.8

1. Under Nikon's measurement conditions and reference values.

2. Under Nikon’s measurement conditions.

3. This figure may differ according to conditions such as temperature and other factors. Use only as a guide.

The specifications of the product may not be achieved depending on the target object’s shape, surface texture and nature, and/or weather conditions.
