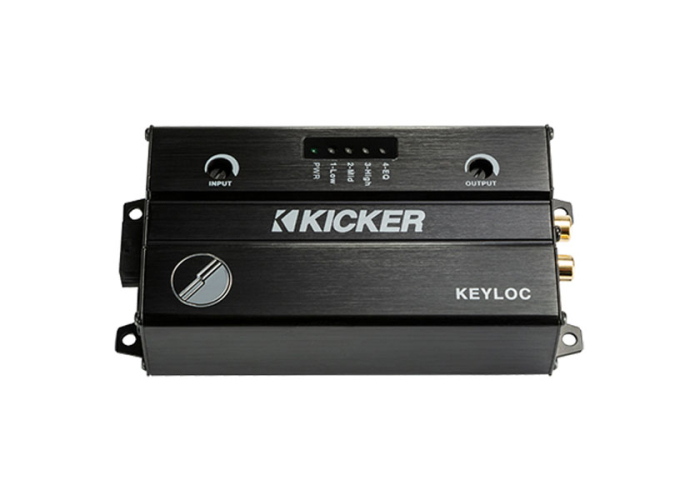

Kicker KEYLOC Smart Line-Out Converter

Kicker KEYLOC Smart Line-Out Converter
(Kicker KEYLOC)

We Think You Should Know

• Australian Kicker Warranty
• Purchase Guarantee (see T&C's)
• KEY DSP Flattens OEM Signals
• Input Flattening 20Hz-20kHz +- 1dB
• Visual LED Conformation
• All Pass Filter Detect and Defeat
• Start/Stop Compatible 6-16 VDC Operating Voltage Range
• 12V Remote Turn-on Output
• Lo/Hi Input Range Switch
• 10V RMS RCA Line Level Output
• 60 Ohm Radio Load (up to 10V Input)
• Input Sensitivity LO: 250mV-10V
• Input Sensitivity HI: 1V-40V
• Signal-to-Noise-Ratio: >100dB

Overview

The Kicker KEYLOC Smart Line-Out Converter is an advanced DSP-controlled integration solution designed to connect aftermarket amplifiers and processors to modern factory audio systems. Using KICKER’s innovative KEY™ algorithm, the KEYLOC automatically analyses your vehicle’s factory audio signal and restores it to a clean, full-range output — delivering the best possible sound for your upgraded system.

DSP-Controlled Integration: Automatically detects factory signal processing and corrects it for improved audio quality.

KEY™ Algorithm Technology: Analyses and restores audio signals by correcting crossovers, EQ, time delay and all-pass filters.

Frequency Detection LEDs: Instantly identify available signal ranges from speaker wires (Low 20–200Hz / Mid 200Hz–2kHz / High 2kHz–20kHz).

Flexible Correction Control: Option to retain factory time delay and imaging or defeat it for custom

Factory audio systems often include built-in crossovers, EQ curves, time delays, and all-pass filters that can distort the signal when connecting aftermarket gear. The KEYLOC automatically detects and corrects these elements, producing a smooth, balanced and uncoloured signal ideal for amplifiers and audio processors.

Kicker Car Audio - The Company

Kicker have been in the audio game since as early as 1973 and it was in 1980 when Kicker switched all their focus on producing high quality car audio equipment.

With industry leading designs and continual developments to improve, Kicker has become well known for their ground shaking subwoofers, audio crossovers and the amplifiers in charge of running them all.

Solo-Baric® and Santoprene® surrounds are two of many technologies Kicker have implemented into their designs. Along with previous technologies, this helps to create a more high performance and superior bass which in return exceeds anything else in it's class.

• Kicker KEYLOC Smart Line-Out Converter
