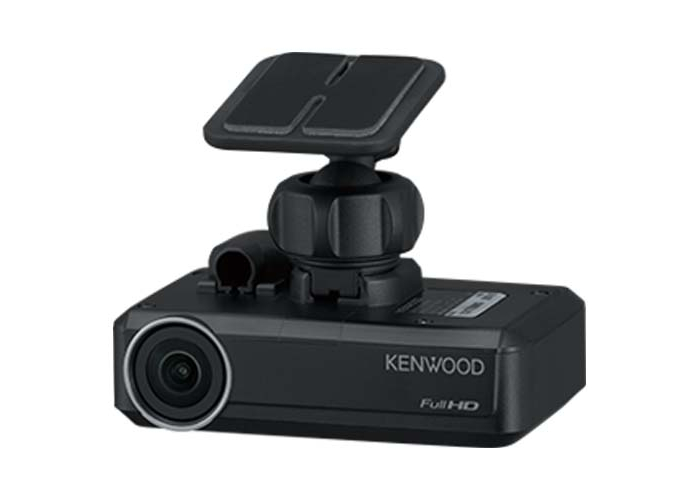

Kenwood DRV-N520 Dash Camera
Kenwood DRV-N520 Dash Camera for Kenwood Camera Ready Media Receivers
(Kenwood DRV-N520)
We Think You Should Know
- Australian Kenwood Warranty
- Purchase Guarantee (see T&C's)
- Dashcam for Compatible Receivers
- 3MP CMOS Image Sensor
- Full HD Recording
- Built-in G Sensor
- Forward Collision Warning
- Departure Delay
- Automatic Record Function
- Works w/ DDX9, DNX9
Overview
The Kenwood DRV-N520 is a dash camera with a Simplified Advanced Driver Assistance System (ADAS) for compatible Kenwood Camera Ready Multimedia Receivers. It is a 3MP (2304 x 1296) HDR compact drive assist camera that has lane departure and forward-collision warning. Operate and view the images from your Kenwood AV receiver's screen.
Compatible with the following 2017 series:
- Kenwood DDX9
- Kenwood DNX9
Features
Connects to compatible KENWOOD Multimedia receivers
Dash Cam-ready receivers are compatible with the DRV-N520 Dash Camera.
The camera records in full HD video capturing every event that occurs on the road ahead, and also provides safety features such as collision avoidance.
Linking Video and Position
Able to display driving footage, as well as the direction and position of the vehicle on the map when replaying video recordings. Records not only video but also map-linked data, by integrating highly-accurate positional data from the navigation system in the drive recorder.
*This function is available for DNX995S and DNX875S.
Touch Control
Recorded videos can be displayed on the large screen, and operated from the touch panel.
GPS Function
Using the receiver GPS more accurate location information is sent from the receiver and integrated as part of the dashboard camera video content.
3 Megapixel Recording
3 Megapixel Recording provides a higher resolution than Full HD (1920 x 1080).
HDR (High Dynamic Range) for Backlighting
Easily records clear images in dark or well-lit environments without underexposing or overexposing the image.
Equipped with wide-angle lens
The wide-angle lens (horizontal: approx. 117°; vertical: approx. 63°) captures video from a broad viewing perspective.
Built-in G-Sensor
When the G-Sensor detects any sudden motion, DRV-N520 will automatically save and lock the recording to protect it from being deleted. The integrated 3-axis sensor records G-force which shows the direction and the strength of possible impact.
Accident Avoidance Features for Safer Driving
Equipped with the latest in accident avoidance sensor technology.
Collision Warning Sensors
Detect the distance between your car and the vehicle ahead of you, and if a safe distance is not maintained a warning will sound.
Collision Avoidance works at 20 MPH and up.
Departure Delay Warning
When your vehicle is at a full stop and the car in front of you starts to move forward, the departure delay warning sounds if your car fails to move forward. The system will also provide a warning if your vehicle starts to move backward.
Super Capacitor
Prevents the recorded video file from being corrupted due to lost power, as it provides enough power to allow the video file to close properly.
4 types of recording modes:
- Continuous Recording
- Manual Recording
- Event Recording
- Parking Recording
Kenwood Car Electronics
Renowned for its sound quality and technical expertise, Kenwood is a global leader in car electronics, radio communication systems and audio equipment. Kenwood Car Audio systems feature cutting-edge technology, innovative new features and quality construction to provide you with the finest audio solutions for your vehicle. Whether it be speakers, subwoofers, amps or a range of multimedia receivers, Kenwood has got you covered.
| Image Sensor | 1/3" Colour CMOS |
| Number of Pixels | 3M Pixels (2304 x 1296) |
| Lens Type | Bright (F2.0) Wide View Lens |
| Viewing Angles | 117°(H) / 63°(V)/ 128°(Diagonal) |
| Event Recording Mode | Yes |
| Continuous Recording | Yes |
| Manual Recording | Yes |
| Parking Recording | Yes |
| Recording preservation timing | Full Time/Event/Manual/parking |
| Recording time for collision detection | |
| Recording time before the collision detection | |
| Recording time after the collision detection | 10/30/60sec |
| Frame Rate | 27 fps |
| Photo Format | JPEG |
| Photo Size | 2304 x 1296 Pixels |
| Video Format | MOV |
| Video Codec | H.264 |
| Video Clip Lenght | 1/2/3 min |
| Audio File Format | Linear Pulse Code Modulated Audio (LPCM) |
| G-Sensor Built-in | -4G to +4G (0,1G steps) |
| HDR record enhancement | On / Off (Default) |
| Scene Select Technology | Yes |
| Parking surveillance mode | with the optional hardwired kit |
| Forward Collision Warning (FCW) | Yes |
| Lane Departure Warning (LDW) | Yes |
| Departure Delay Warning (DDW) | Yes |
| Recording Media | micro SDHC Class 6 or over |
| Maximum Size Recording Media | 4GB up to 32 GB |
| Dash Cam Link with Compatible KENWOOD Unit | Yes |
| Power Supply type | 3,5m DC-cable |
| Power Supply voltage | 12V(8,5 to 16V) |
| Current Consumption | 400 mA |
| Dimensions | 79 x 22 x 48 mm |
| Weight | 77 gr (Camera Only) |
| Car Mount Bracket | Included |
| PC application | via download |
Kenwood DRV-N520 Dash Camera
- 1x Kenwood DRV-N520
- 1x Power Cord/ Interface cable
- 1x Mounting Bracket
- 1x Cable Holder
- 1x 8gb Micro SD Card
- Instruction Manual
Peace of Mind Purchase Guarantee
This product is supplied via Kenwood Australia and enjoys the FULL benefits of the 'Genuine Kenwood Australian Warranty'. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). In the event that this product should fail please contact our service department or you can speak with Kenwood Australia directly.
We are a FULLY AUTHORISED Australian retailer for Kenwood Australia.
