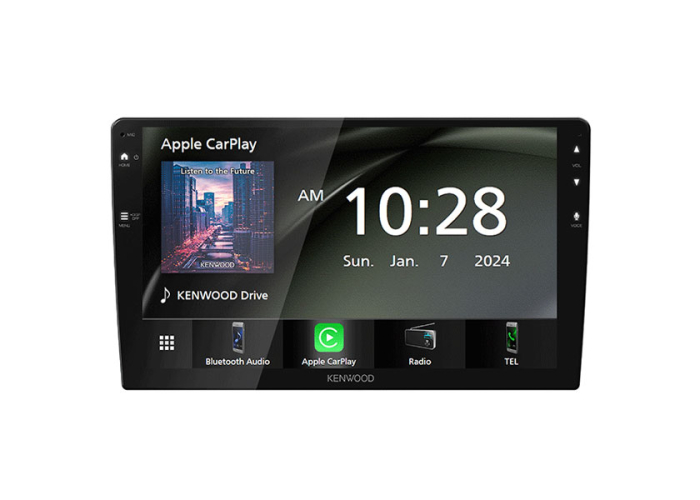

Kenwood DMX80AXS 9" Multimedia Receiver
Kenwood DMX80AXS 9" Multimedia Receiver
(Kenwood DMX80AXS)
We Think You Should Know
- Australian Kenwood Warranty
- Purchase Guarantee (see T&C's)
- 9" WSVGA Capacitive Display
- 1-DIN Short Chassis Design
- Wired & Wireless Apple CarPlay
- Wired & Wireless Android Auto
- Wireless Mirroring for iPhone / Android
- 13 Band EQ & Digital Time Alignment
- Built-in Bluetooth
- USB 2.1A Quick Charge
- Rear View Camera Input with Parking Guidelines
- 2 Preouts 2.5V & Subwoofer Out (Mono)
Why buy the Kenwood DMX80AXS Multimedia Receiver
The Kenwood DMX80AXS is a premium 9" multimedia receiver designed to elevate your in-car entertainment and connectivity. Featuring a large 9” WSVGA capacitive touchscreen and a 1-DIN short chassis for versatile installation, it blends modern aesthetics with smart functionality.
Enjoy the convenience of wired and wireless Apple CarPlay and Android Auto, along with wireless mirroring for both iPhone and Android devices, making hands-free operation smooth and safe. With built-in Bluetooth, USB 2.1A quick charge, and a powerful 13-band EQ with digital time alignment, the DMX80AXS offers both superb sound tuning and modern tech integration. Additionally, a rear-view camera input with parking guidelines, 2.5V preouts, and a dedicated subwoofer out ensure it's as functional as it is feature-rich.
Massive 9” Floating Display – Provides an immersive touchscreen experience while maintaining a compact single-DIN mount behind the dash.
Wireless Smartphone Experience – Leave your phone in your pocket and still enjoy full access to your apps, music, and messages.
Advanced Audio Tuning – The 13-band EQ and time alignment let you customize your in-car audio to perfection.
Quick USB Charging – Keep your devices powered on the go with USB fast charge.
Reverse Camera Ready – Drive safer with camera input and dynamic parking assist lines.
Premium Build & Interface – Sleek design, intuitive menus, and responsive performance make it easy to use.
The Kenwood DMX80AXS combines advanced connectivity, user-friendly features, and superior audio performance, making it an excellent choice for drivers seeking to upgrade their in-car entertainment system. Whether you’re an audiophile, tech-savvy commuter, or just want a smarter, safer driving experience, the Kenwood DMX80AXS is your perfect infotainment companion—offering powerful features in a slim, elegant package.
Features
WSVGA LCD Display
The WSVGA display reproduces approximately 1.6 times higher resolution than the conventional WVGA display. You can enjoy finely detailed expression of color gradients and lifelike visuals in dramas and movies, enhancing your viewing experience.
Apple CarPlay – Connect Wirelessly or via USB
A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.
Android Auto™ – Connect Wirelessly or via USB
Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.
Wireless Mirroring for smartphone
By installing the “MirrorApp+” app, your smartphones seamlessly displayed on the receiver's screen without cable. You can enjoy a variety of apps such as Waze, YouTube, and Instagram. Touch control is possible from both screen and Smartphone.
*Selected smartphones only
Streaming Music
Listen to popular music applications and music stored on your device with basic audio controls.
Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment
Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.
Playable Video & Audio Files
You can play back from USB devices audio and video files compressed in various formats.
Rear View Camera Input with Parking Guidelines
An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.
Convenient and Easy-to-Use Capacitive Touch Panel
Provides a high contrast ratio, crystal clear display and vivid text. Easy to use widgets provide access to information screens with a swipe.
Direct OEM Steering Remote Control
The receivers can be installed in most Japanese and Korean vehicles easily.
Short Chassis Design
The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.
High Current 2.1A Charging
Rapidly charge your smartphone using the USB port, with up to a maximum of 2.1A.
*Compatibility depends on the smartphone.
Kenwood Car Electronics
Renowned for its sound quality and technical expertise, Kenwood is a global leader in car electronics, radio communication systems and audio equipment. Kenwood Car Audio systems feature cutting-edge technology, innovative new features and quality construction to provide you with the finest audio solutions for your vehicle. Whether it be speakers, subwoofers, amps or a range of multimedia receivers, Kenwood has got you covered.
Browse the complete range of car multimedia head units including apple car play, android auto, and with reverse camera.
| Main Unit | Monitor Section |
Picture size | 9 inches (diagonal) wide | |
|---|---|---|---|---|
| W x H | ||||
| Display system | TN LCD panel | |||
| Drive system | TFT active matrix system | |||
| Number of pixels | 1,843,200 | |||
| 1024H x 600V x RGB | ||||
| Effective pixels | 99.99% | |||
| Pixel arrangement | RGB striped arrangement | |||
| Back lighting | LED | |||
| USB I/F Section |
USB Standard | USB2.0 High Speed | ||
| Connector | Type-A | |||
| File System | FAT32/ exFAT | |||
| Maximum Power Supply Current | DC5V(DC logo) 2.1A | |||
| D/A Converter | 24 Bit | |||
| Audio Decoder | MP3/ WMA/ WAV/ AAC/ FLAC | |||
| Video Decoder | MPEG1/ MPEG2/ MPEG4/ H.264/ MKV | |||
| Wi-Fi Section |
Frequency response | 192k Sampling | 20 - 20,000 Hz | |
| 96k Sampling | 20 - 20,000 Hz | |||
| 48k Sampling | 20 - 20,000 Hz | |||
| 44.1k Sampling | 20 - 20,000 Hz | |||
| IEEE Standard | 802.11 a/ n/ ac | |||
| Frequency Range | 5GHz (5.745～5.825GHz) | |||
| Channels | 149ch | |||
| Auto(149,153,155,157,161ch) | ||||
| Transfer rates (MAX) | 11a:54 Mbps / 11b: 11 Mbps | |||
| 11g: 54 Mbps / 11n:150 Mbps / 11ac:433 Mbps | ||||
| Bluetooth Section |
Bluetooth Specification Version | Bluetooth V5.0 | ||
| Frequency | 2.402 - 2.480 GHz | |||
| RF Output Power (E.I.R.P.) | +0.7 dBm (AVE), Power Class 2 | |||
| Maximum Communication range | Line of sight approx.10m | |||
| Audio Codec | SBC / AAC | |||
| Multi Profile Support | Multi Profile | |||
| Profile | HFP(Hands Free Profile) 1.7 | |||
| SPP(Serial Port Profile) 1.2 | ||||
| A2DP(Advanced Audio Distribution Profile) 1.3 | ||||
| AVRCP(Audio/Video Remote Control Profile) 1.6 | ||||
| PBAP(Phonebook Access Profile) 1.2 | ||||
| FM | Frequency range (Frequency step) | 87.5 - 108 MHz (50kHz) | ||
| Usable sensitivity | 16.2dBf | |||
| S/N:30dB | 1.8μV/75Ω | |||
| Frequency response(±3.0dB) | 30Hz - 14kHz | |||
| S/N Ratio(dB) | 50dB (MONO) | |||
| Stereo separation | 35 dB (1 kHz) | |||
| AM | Frequency range (Frequency step) | 531 - 1611 kHz (9kHz) | ||
| Usable sensitivity | 99μV (40 dBμ) | |||
| Video | Color system of external video input | NTSC/ PAL | ||
| Rear view camera input level (RCA) | 1 Vp-p / 75 Ω | |||
| Video Output level (RCA) | 1 Vp-p / 75 Ω | |||
| Audio | Maximum Power (Front&Rear) | 50Wx4 | ||
| Full Bandwidth Power (Front&Rear) (at less than 1%THD) |
22Wx4 | |||
| Output frequency band | 20 - 20,000 Hz | |||
| Preout level (V) | 2.5 V / 10 kΩ | |||
| Preout impedance (Ω) | 1.4 kΩ | |||
| Speaker Impedance (Ω) | 4 - 8 Ω | |||
| Equalizer | 13 Band | |||
| Band | Frequency | 62.5/ 100/ 160/ 250/ 400/ 630/ 1k/ 1.6k/ 2.5k/ 4k/ 6.3k/ 10k/ 16k Hz | ||
| Level | -09 - +09 (-9dB - +9dB) | |||
| Q | - | |||
| HPF | Frequency | Through/ 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250 Hz | ||
| Slope | -6/ -12/ -18/ -24 dB/Oct. | |||
| Gain | -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB | |||
| LPF | Frequency | 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250 Hz/ Through | ||
| Slope | -6/ -12/ -18/ -24 dB/Oct. | |||
| Gain | -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB | |||
| General | Operating voltage | 12V DC car battery | ||
| Main Unit Installation size W x H x D(w/o sleeve) | 229 x 130.5 x 100.8mm | |||
| Weight | Main unit | 1.33 kg | ||
