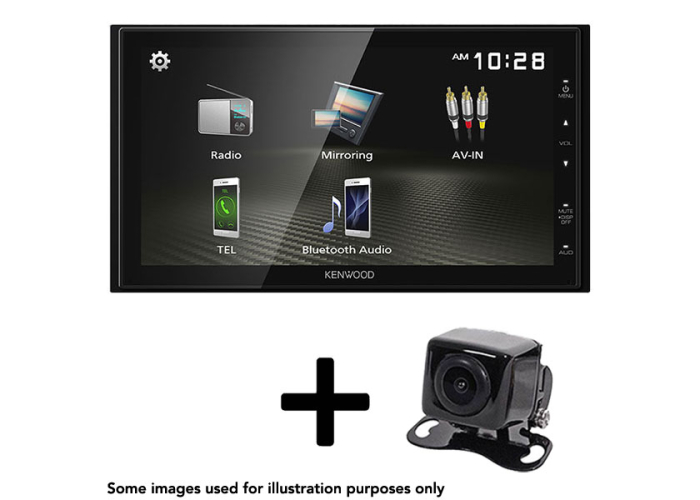

Kenwood DMX1029BT 6.8" AV Stereo w Reversing Camera
Kenwood DMX1029BT 6.8" AV Stereo w Reversing Camera
(Kenwood DMX1029BTC)
We Think You Should Know
- Australian Kenwood Warranty
- Purchase Guarantee (see T&C's)
- Includes Kenwood Reversing Camera
- 6.8" WVGA Capacitive Display
- Direct Wired OEM Remote
- USB Mirroring Ready for Android
- 13 Band EQ with Digital Time Alignment
- Rear View Camera Input with Parking Guidelines
- Built-in Bluetooth
- 2 Preouts 2V with Subwoofer out
Overview
The Kenwood DMX1029BT is a cutting-edge multimedia receiver designed to elevate your in-car entertainment experience. Featuring a sleek 6.8" WVGA monitor, this receiver seamlessly integrates with your smartphone, offering advanced features for superior audio and visual performance. The display provides an enhanced viewing experience for all your multimedia content.
Android USB mirroring ready, the DMX1029BT allows you to control your devices directly on the receiver's screen with 2-way touch control. Enjoy customized sound with a 13-band EQ and digital time alignment, and enhance safety while reversing with a rearview camera input and adjustable parking guidelines. Built-in Bluetooth enables wireless music streaming and hands-free calls, while the two preouts and dedicated subwoofer output expand your audio system for richer sound. The direct wired OEM remote feature ensures convenient use of your car's factory steering wheel controls.
Features
True Mirroring via USB, 2-Way Touch Control for Android
Allows you to display and control your Android smartphone on the screen of the receiver. You can enjoy your favourite apps on a large display and with impressive sound quality. Before starting, just install the free app “Mirroring OB for KENWOOD” on your smartphone and connect it to KENWOOD receiver via a USB cable and Bluetooth.
Stream Music
Listen to popular music applications and music stored on your device with basic audio controls.
Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment
Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.
Playable Video & Audio Video Files
You can play back from USB devices audio and video files compressed in various formats.
Rear View Camera Input with Parking Guidelines
An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.
Convenient and Easy-to-Use Capacitive Touch Panel
Provides a high contrast ratio, crystal clear display and vivid text.
Short Chassis Design
Only 75mm of depth for more flexible installation.
Direct OEM Steering Remote Control
The receivers can be installed in most Japanese and Korean vehicles easily.
Kenwood Car Electronics
Renowned for its sound quality and technical expertise, Kenwood is a global leader in car electronics, radio communication systems and audio equipment. Kenwood Car Audio systems feature cutting-edge technology, innovative new features and quality construction to provide you with the finest audio solutions for your vehicle. Whether it be speakers, subwoofers, amps or a range of multimedia receivers, Kenwood has got you covered.
Browse the complete range of car multimedia head units including apple car play, android auto, and with reverse camera.
| Picture size | 6.75 inches (diagonal) wide |
|---|---|
| Display system | TN LCD panel |
| Drive system | TFT active matrix system |
| Number of pixels | 1,152,000 |
| 800H x 480V x RGB | |
| Effective pixels | 99.99% |
| Pixel arrangement | RGB striped arrangement |
| Back lighting | LED |
| USB Standard | USB2.0 High Speed |
| Connector | Type-A |
| File System | FAT 16 / 32 / exFAT / NTFS |
| Maximum Power Supply Current | DC5V(DC logo) 1.5A |
| D/A Converter | 24 Bit |
| Audio Decoder | MP3/ WMA/ WAV/ AAC/ FLAC |
| Video Decoder | MPEG1/ MPEG2/ MPEG4/ H.264/ MKV |
| Frequency response 192k Sampling | 20 - 20,000 Hz |
| 96k Sampling | 20 - 20,000 Hz |
| 48k Sampling | 20 - 20,000 Hz |
| 44.1k Sampling | 20 - 20,000 Hz |
| Bluetooth Specification Version | Bluetooth V5.0 |
| Frequency | 2.402 – 2.480 GHz |
| RF Output Power (E.I.R.P.) | +8 dBm (AVE), Power Class 1 |
| Maximum Communication range | Line of sight approx.10m |
| Audio Codec | SBC / AAC |
| Multi Profile Support | Multi Profile |
| Profile | HFP(Hands Free Profile) 1.6 |
| SPP(Serial Port Profile) | |
| A2DP(Advanced Audio Distribution Profile) 1.2 | |
| AVRCP(Audio/Video Remote Control Profile) 1.5 | |
| PBAP(Phonebook Access Profile) 1.2 | |
| Frequency range (Frequency step) | 87.5 - 108 MHz (50kHz) |
| Usable sensitivity | 16.2dBf |
| S/N:30dB | 1.8μV/75Ω |
| Frequency response(±3.0dB) | 30Hz - 14kHz |
| S/N Ratio(dB) | 50dB (MONO) |
| Stereo separation | 35 dB (1 kHz) |
| Frequency range (Frequency step) | 531 - 1611 kHz (9kHz) |
| Usable sensitivity | 99μV (40 dBμ) |
| Color system of external video input | NTSC/ PAL |
| External video input level (RCA) | 1 Vp-p / 75 Ω |
| External video input level (RCA, AV-In) | 1 Vp-p / 75 Ω |
| External audio max input level (RCA, AV-In) | 1.5 V / 25 kΩ |
| Video Output level (RCA) | 1 Vp-p / 75 Ω |
| Maximum Power (Front&Rear) | 45Wx4 |
| Full Bandwidth Power (Front&Rear) (at less than 1%THD) |
16Wx4 |
| Output frequency band | 20 - 20,000 Hz |
| Preout level (V) | 2 V / 10 kΩ |
| Preout impedance (Ω) | 1.4 kΩ |
| Speaker Impedance (Ω) | 4 - 8 Ω |
| Equalizer | 13 Band |
| Band Frequency | 62.5/ 100/ 160/ 250/ 400/ 630/ 1k/ 1.6k/ 2.5k/ 4k/ 6.3k/ 10k/ 16k Hz |
| Level | -09 - +09 (-9dB - +9dB) |
| HPF Frequency | Through/ 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250 Hz |
| Slope | -6/ -12/ -18/ -24 dB/Oct. |
| Gain | -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB |
| LPF Frequency | 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250 Hz/ Through |
| Slope | -6/ -12/ -18/ -24 dB/Oct. |
| Gain | -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB |
| Operating voltage | 12V DC car battery |
| Installation Dimensions W x H x D | 182 x 112 x 75 mm |
| Main Unit Installation size W x H x D(w/o sleeve) | 178 x 100 x 75 mm |
| Weight Main unit | 1.1 kg |
- Kenwood DMX1029BT Multimedia Receiver
- Includes Kenwood Reversing Camera
