Overview

The JVC KS-DR1004D 4-Channel Compact Amplifier is a versatile audio device designed for use in compact cars, marine, UTV, and motorcycle applications. It has a maximum power output of 400W and a rated power output of 45W x 4 @ 4 ohms. Its conformal-coated main PCBs offer additional protection against moisture and condensation, preventing corrosion and other damages.

Features

Versatile Application
Receivers and amplifiers for marine and motorsports applications need to perform in harsh environments exposed to outdoor elements. JVC’s marine and motorsports receivers and amplifiers feature compact sizes for versatile installation even in tight spaces. Conformal-coated main PCBs (printed circuit boards) offer additional protection against moisture and condensation from damaging the product.

Versatile Application

Conformal Coating
A conformal coating is a protective chemical coating to safeguard electronic circuits from harsh environments containing moisture or chemical contaminants. It provides a barrier to airborne contaminants from the operating environment, such as salt spray, thus preventing corrosion.

Conformal Coating

Circuit Separation Construction
Separated circuit boards of the Pre-amp and Power-amp sections contribute to a reduction in radiation noise.

Circuit Separation Construction

Large LPF Coil
The large LPF coil provides stable, high-quality sound with no distortion even when playing at high volume.

Large LPF Coil

Variable HPF & LPF
It incorporates a rotary-type HPF and LPF, which enables fine adjustment. Compared with fixed-type switching, more precise sound adjustment is possible to match your preferences.

Variable HPF & LPF

JVC Car Entertainment

We stock an extensive range of quality JVC Car Audio products. JVC of Japan has partnered with Kenwood to create one company - JVC Kenwood. Both labels now exist under one company. Their combined efforts of design, innovation, R&D and quality means you can be assured you are getting a fantastic audio solution for your car. Check out the great range of JVC speakers, subwoofers, amps and multimedia receivers that we carry!

View All Features

Specification	Value
Maximum Power Output	400W
Rated Power Output (Stereo 4Ω)	45W x 4 (20Hz - 200Hz, ≤ 1.0% THD)
Rated Power Output (Stereo 2Ω)	45W x 4 (1,000Hz, ≤ 1.0% THD)
Rated Power Output (Bridged 4Ω)	90W x 2 (1,000Hz, ≤ 1.0% THD)
Amplifier Class	Class-D
Speaker Impedance Allowance	4 ohm (2 ohm to 8 ohm allowable)
RCA Input	Ach L/R, Bch L/R
Input Sensitivity	0.2 - 5.0V
High Level Input (Speaker Level)	Yes
High Level Input Auto Power Control	Yes (Signal Sensing Turn On)
Signal to noise ratio	> 98dB
High pass filter frequency	50Hz–200Hz (variable, -12dB/oct.)
Low pass filter frequency	50Hz–200Hz (variable, -12dB/oct.)
Dimensions (W x H x D)	145 x 45 x 99 mm (5-11/16" x 1-3/4" x 3-7/8")
Weight	0.7kg (1.5lbs)

Note: THD stands for Total Harmonic Distortion.

View All Features

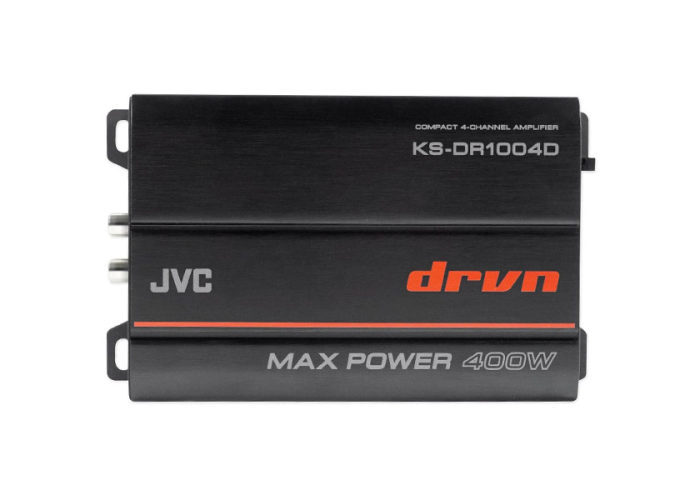

JVC KS-DR1004D 4-Channel Class D Amp
