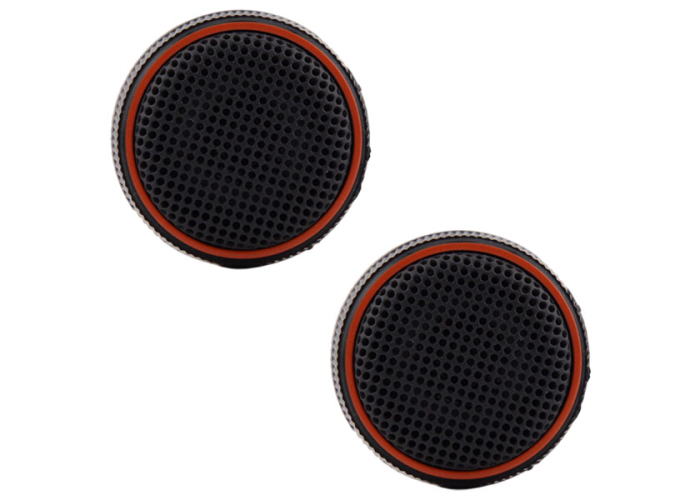

JBL Club 194T 3/4" Component Tweeters Pair – Edge-Driven Silk Dome

JBL Club 194T Car Audio Component Tweeters Pair
(JBL CLUB194T)

We Think You Should Know

• 12 Month Australian Warranty
• Purchase Guarantee (see T&C's)
• 50W RMS 150W peak power handling
• 92dB sensitivity for clear output
• 3kHz – 20kHz frequency response
• Starfish™ universal mounting adapter
• ±40° adjustable angle positioning

Overview

The JBL Club 194T tweeters deliver crisp, detailed high-frequency response from 3kHz through 20kHz for your car audio system. These component tweeters handle 50W RMS and 150W peak power with 92dB sensitivity for efficient, clear output at 3.0 ohms impedance. The Starfish™ mounting adapter and I-Mount™ system provide flexible surface or flush installation options with up to ±40 degrees of angle adjustment. Designed for A-pillar, door, and factory grille locations, the included hardware allows easy servicing without removing the entire assembly.

Key Features:

• 50W RMS power handling – Each tweeter handles 50W RMS and 150W peak power for clear, distortion-free high-frequency output. Upgrade your factory sound with authoritative treble performance.
• 92dB high sensitivity – Efficient 92dB sensitivity delivers loud, clear output without requiring excessive amplifier power. Get more volume from every watt.
• Extended 20kHz frequency response – Frequency response from 3kHz to 20kHz captures every cymbal crash, vocal harmonic, and high-frequency detail in your music. Hear your tracks as they were meant to be heard.
• Starfish™ universal mounting adapter – Six break-off mounting tabs accommodate multiple installation configurations. Install behind factory grilles, in A-pillars, or surface-mounted for maximum placement flexibility.
• I-Mount™ adjustable positioning – The patented I-Mount system (patent no. 5,859,917) allows angle adjustment up to ±40 degrees. Aim tweeters toward the listening position for optimal sound staging.
• Surface or flush mounting ready – Includes both flush cups and surface-mount hardware. Choose the installation style that suits your vehicle's interior with 1-3/4" cutout and 1" mounting depth.
• Locknuts for secure installation – Locknuts keep tweeters firmly in place once positioned. No vibration-induced movement that could affect sound quality over time.
• Service without full removal – Tweeters can be replaced or serviced without removing the whole mounting assembly. Save time on maintenance and future upgrades.

Ideal For

• Car audio enthusiasts upgrading factory tweeters for improved clarity
• Component system builders matching JBL Club series speakers
• Vehicles with factory tweeter locations requiring flexible mounting
• A-pillar installations where angle adjustment improves sound staging
• OEM replacements with 3.0 ohm impedance compatibility
• DIY installers wanting versatile mounting hardware included

JBL Car Audio

JBL Car Audio products are some of the finest and most innovative products available. With an undeniably rich heritage in audio, JBL have their products in major concert venues and stadiums around the globe and are a go-to choice for music professionals. JBL have perfected their car audio products, so you can enjoy the true clarity and energy of music in your vehicle.

• 2 x JBL Club 194T High-Output Component Tweeters
• 2 x Dedicated In-Line Crossover Network Pigtail Core Modules
• 2 x Patented I-Mount Flush-Mount Installation Cups
• 2 x Threaded Flush-Mount Structural Hardware Adapters
• 2 x Plastics Heavy-Duty Locking Jam Nuts
• 2 x Low-Profile Surface-Mount Installation Cups
• 2 x Multi-Configuration Starfish™ Tweeter Bracket Mounts
• 2 x Custom Spacers & 2 x Mechanical Washers
• 6 x Structural Multi-Purpose Installation Screws
