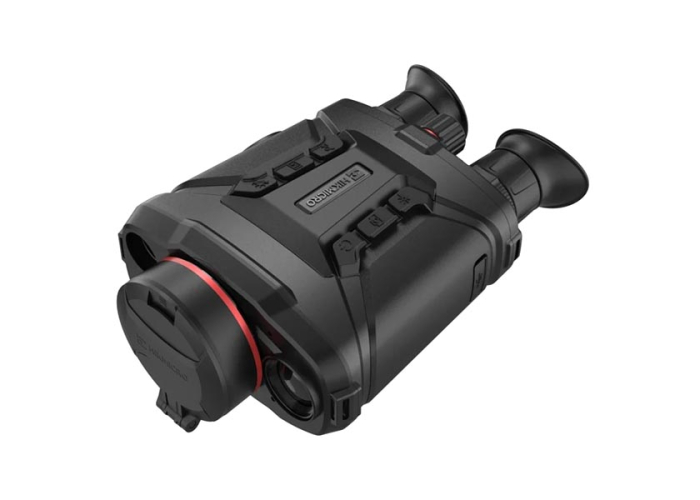

HikMicro Raptor RH50LN Thermal Binocular
HikMicro Raptor RH50LN Thermal Binocular
(HikMicro RH50LN)
We Think You Should Know
- Australian HikMicro Warranty
- Purchase Guarantee (see T&Cs)
- 384×288 Resolution (Thermal)
- 2560×1440 Resolution (Optical)
- 1024×768 Resolution 0.39-inch OLED display
- 50mm Focal Length with Up to 2600m Range
- 12 μm High Sensitivity Detector
- Extremely High Thermal Sensitivity of 20mK
- 1000m Built-in Laser Rangefinder
Why buy the HikMicro Raptor Thermal Binoculars
The HikMicro Raptor thermal binocular is a high-performance imaging device that uses thermal technology to capture images in complete darkness and through fog and smoke.
Thermal Imaging Technology: The HikMicro Raptor thermal binocular uses advanced thermal imaging technology to detect heat signatures and capture images in complete darkness and through fog and smoke.
OLED Display: The HikMicro Raptor thermal binocular has an OLED display, delivering clear and sharp images with accurate colour representation.
Lightweight and Portable: The HikMicro Raptor thermal binocular is lightweight and portable, making it easy to carry and ideal for outdoor activities such as hunting, camping, and wildlife observation.
Long Detection Range: The HikMicro Raptor thermal binocular has a long detection range of up to 2,600 metres, providing excellent performance for long-range surveillance and target detection.
Video and Photo Recording: The HikMicro Raptor thermal binocular allows you to record videos and photos of your observations, making it easy to document your findings and share them with others.
Multiple Color Palettes: The HikMicro Raptor thermal binocular features numerous colour palettes, allowing you to choose the best one for your specific use case and environment.
Built-in Wi-Fi: The HikMicro Raptor thermal binocular has built-in Wi-Fi, allowing you to connect to your smartphone or tablet, remotely control the device, and wirelessly transfer images and videos.
The HikMicro Raptor thermal binocular offers advanced thermal imaging technology, OLED display, lightweight and portable design, long detection range, video and photo recording, multiple colour palettes, and built-in Wi-Fi. These features make the HikMicro Raptor thermal binocular an ideal choice for outdoor enthusiasts, hunters, law enforcement professionals, and anyone who needs to capture images in complete darkness or through fog and smoke.
Features
The All-In-One Solution - Combining a thermal camera, digital day & night camera, and laser rangefinder, the ultimate innovative RAPTOR series binocular provides unprecedented observation capability in thermal or true living colour, up close or from a distance, during day or night in adverse weather to break through your visual limitation.
2560x1440 HD Day & Night Camera - High-resolution image 2560x1440, delivering bright and vivid images in the daytime. Support low light conditions 0.001Lux. With a built-in 940nm IR illuminator, the image is still visible clearly under complete darkness. The unique defog mode ensures image clarity during a foggy day.
1000m Laser Rangefinder - Built-in laser rangefinder with a range of up to 1000m with an accuracy of ± 1 meter helps get the target distance to make the right decisions.
Automatic Display On & Off - When moving the device temporarily from your eyes, the display will be turned off automatically. There will be no light leakage from the eyepiece of the device.
GPS & DMC - The GPS and Digital Magnetic Compass(DMC) feature ensures locating objects' exact position by precisely measuring an accurate azimuth relative to the direction of the magnetic north pole and a precise elevation of the observed thing relative to the observer.
Smart IR - With the different observation conditions, the IR illuminator can adjust brightness automatically and intelligently to avoid overexposure. It also can reduce power consumption and improve battery life.
HikMicro
HIKMICRO is a leading provider of thermal imaging equipment and solutions. Specializing in SoC and MEMS design, development, and manufacturing, the company offers thermal detectors, cores, modules, cameras and total solutions to the global market, serving customers in more than 100 countries and regions.
HIKMICRO places a high value on research and development, empowering its continual progress in thermal technology. The company earned ISO9001 certification in 2018, demonstrating its quality-first philosophy from the very start. Through continuous innovation, HIKMICRO’s products and solutions constantly meet the diverse needs of individual, commercial, industrial, and utility customers around the world.
| Thermal Module | |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Max. Resolution | 384 × 288 |
| Frame Rate | 25 Hz |
| Pixel Interval | 12 μm |
| NETD | < 20 mK ( @25°C, F# = 1.0) |
| Lens (Focal Length) | 50 mm |
| Detection Range | 2600 m |
| Focus Mode | Manual |
| Field of View(H × V), Degrees / m @100m | 5.3 ° × 4.0 ° (H × V)/ 9.3 m × 7.0 m |
| Min. Focusing Distance | 5 m |
| Aperture | F0.9 |
| Magnification | 5.7 × |
| Digital Zoom | 1 ×, 2 ×, 4 ×, 8 ×, 16 × |
| Optical Module | |
| Image Sensor | 1.88" Progressive Scan CMOS |
| Min. Illumination | 0.001 lux @ (F1.0 , AGC On) |
| Max. Resolution | 2560 x 1440 |
| Lens (Focal Length) | 31mm |
| Image Enhancement | YES |
| Aperture | F 1.2 |
| IR Illuminator Wavelength | 940nm |
| Viewing Range at Night | 350 m |
| Smart IR | YES |
| Image Display | |
| Display | 0.39 inch, OLED, 1024 ×768 |
| FFC (Flat Field Correction) Mode | Auto, Manual, External Correction |
| Image Mode | Optical, Fusion, White Hot, Black Hot, Red Hot, Image Fusion |
| Diopter (Range) | -5 D to +3 D |
| Optical Mode | Day, Night, Auto, Defog |
| Image Pro | YES |
| System | |
| Built-in Memory | 64 GB |
| Record Video | MP4, 1600 × 1200 |
| Capture Snapshot | JPEG, 1600 × 1200 |
| Hotspot | YES |
| GPS | YES |
| Digital Magnetic Compass | YES |
| Standby Mode | YES |
| PIP | YES |
| Hot Track | YES |
| Audio Recording | YES |
| Proximity sensor | YES |
| Multiple Language | YES |
| Local Album | YES |
| Power Supply | |
| Battery Type | Replaceable and Rechargeable Li-ion Battery |
| Battery Time | 8 hours continuous running with hotspot function off (@25°C) |
| Type-C Power Supply | YES |
| General | |
| Working Temperature | - 30 °C to 55 °C |
| Working Humidity | <90% |
| Storage Temperature | -40 °C to 70 °C |
| Eye-Relief | 15 mm |
| Interpupillary Adjustment Range | 60 mm to 70 mm |
| Protection Level | IP67 |
| Mounting | UNC 1/4"-20 |
| Dimension (WxHxD) | 217.5 mm × 155.0 mm × 87.5 mm |
| Weight | 1120 g |
| Accessory | Battery Charger, Power Cable, Lens Cloth, Two Wrist Straps, Neck Strap, Quick Start Guide, Six Batteries, Adaptor, Carrying Case |
| Laser Rangefinder | |
| Safety Class for Laser | Class 1 |
| Wavelength | 905 nm |
| Max. Measuring Range | 1000 m |
| Measurement Accuracy | ± 1 m |
- HikMicro Raptor RH50LN Thermal Binocular
Peace of Mind Purchase Guarantee
This product is supplied via HikMicro Australia and enjoys the FULL benefits of the 'Genuine HikMicro Australian Warranty'. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). In the event that this product should fail please contact our service department or you can speak with HikMicro Australia directly.
We are a FULLY AUTHORISED Australian retailer for HikMicro Australia.
