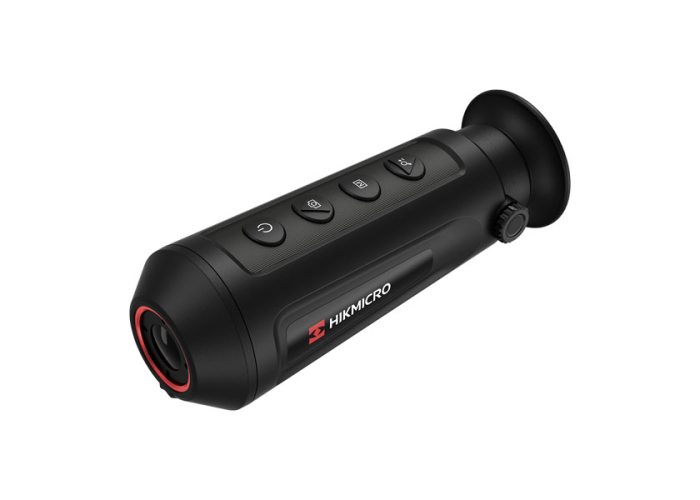

HikMicro LYNX Pro LH15 Thermal Sensor Monocular

HikMicro LYNX Pro LH15 15mm Lens Thermal Sensor Monocular
(HikMicro HM-TS03-15XG/W-LH15)

We Think You Should Know

• Australian HikMicro Warranty
• Purchase Guarantee (see T&C's)
• 15mm Lens
• 384 × 288 Resolution (Thermal), 12 μm High Sensitivity Detector
• Adaptive AGC, DDE, 3D DNR, NETD < 35 mK (@ 25 °C), F# = 1.0
• 1280 × 960 resolution 0.4-inch LCOS display
• Record Video and Capture Snapshot
• Compact and Light Weight
• Wi-Fi Hot Spot
• Built-in Rechargeable Lithium Battery
• USB-C Interface to Charge or Export Files

Overview

The HikMicro LYNX Pro LH15 is a handheld thermal monocular with an infrared detector capturing both visible and infrared light (heat), an advanced imaging sensor, long detection range reaching up to 708m, video and snapshot.

LYNX Pro LH15 is equipped with a 384 × 288 infrared detector and a 1280 × 960 LCOS display. It supports functions of observation, distance measurement, Wi-Fi hot spot, and so on. The high-sensitivity built-in thermal detector provides you with a clear view even in total darkness.

The monocular is mainly applied to scenarios such as patrolling, hunting, hiking, law enforcement, searching and rescuing travel, etc.

Features

Advanced VOx 12 μm Imaging Sensor

LYNX PRO LH15 carries the new VOx 384 x 288 12μm sensor (less than 35mK), and a large aperture lens, which gives a clear and detailed picture of the target even in complete darkness.

Long Detection Range

With the advanced imaging sensor and lens, the detection range of a 1.7 m target can reach up to 708m.

Video and Snapshot

Onboard 8GB memory offers storage space for snapshots and video clips. Recorded files can be downloaded when connected to PC via USB Port.

Wi-Fi Hotspot for Mobile App

Integrated Wi-Fi modules make T-Vision app a second display. Users can use digital zoom, video recording and other features on their phones.

Standby Mode

Standby mode is designed to save power consumption with the screen off while other features are on. The device can be activated in a short time by pressing the button.

4 Colour Palettes

LYNX PRO series provides 4 colour palettes for different scenarios.

Smart Range Measurement

Measuring distance quickly with high accuracy based on the top and bottom of the target.

Large Digital Zoom

Digital zoom up to 8x offers a better focus on small targets from a far distance.

Compact Size, Easy to Carry!

Lightweight design of 310g/0.68 lb only

HikMicro

HIKMICRO is a leading provider of thermal imaging equipment and solutions. Specializing in SoC and MEMS design, development, and manufacturing, the company offers thermal detectors, cores, modules, cameras and total solutions to the global market, serving customers in more than 100 countries and regions.

HIKMICRO places a high value on research and development, empowering its continual progress in thermal technology. The company earned ISO9001 certification in 2018, demonstrating its quality-first philosophy from the very start. Through continuous innovation, HIKMICRO’s products and solutions constantly meet the diverse needs of individual, commercial, industrial, and utility customers around the world.

• HikMicro LYNX Pro LH15 Thermal Sensor Monocular
• Quick Start Guide
• Non-dust Cloth
• USB-C Cable
• Protective Bag
• Wrist Strap
