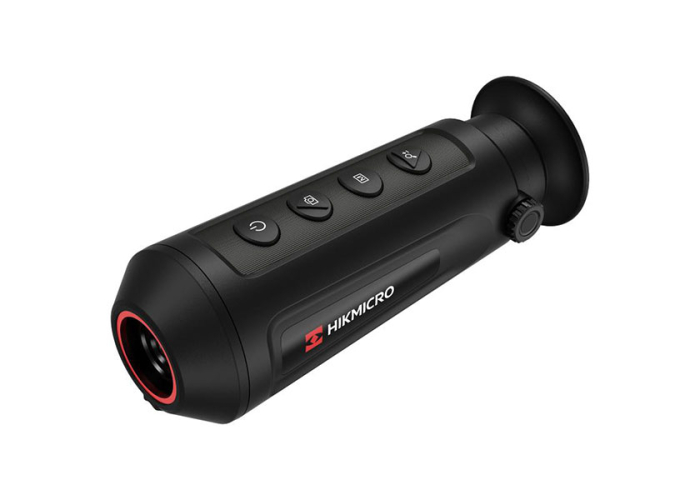

HikMicro LYNX LE10S Thermal Sensor Monocular
HikMicro LYNX LE10S 9.7mm Lens Thermal Sensor Monocular
(HikMicro LE10S)
We Think You Should Know
- Australian HikMicro Warranty
- Purchase Guarantee (see T&Cs)
- 256×192 Resolution (Thermal)
- 800×600 Res 0.32" OLED display
- 9.7mm Focal Length, f1.0
- 500m Detection Range
- 12 μm High Sensitivity Detector
- High Thermal Sensitivity of <35mK
- Record Video and Capture Snapshot
- Wi-Fi Hot Spot / Compact Light Weight
- 8GB Built-in Storage
- Built-in Rechargeable Lithium Battery
- USB-C Interface to Charge or Export Files
Why buy the HikMicro LYNX LE10S Thermal Monocular
Introducing the HikMicro LYNX LE10S Thermal Sensor Monocular, a cutting-edge tool redefining outdoor observation and surveillance. Boasting a 256×192 resolution thermal sensor with a 12 μm detector, it offers unparalleled clarity and a 500m detection range, essential for hunters, security personnel, and outdoor enthusiasts. Its immersive 0.32" OLED display showcases vibrant colours and wide viewing angles, ensuring optimal visibility in any lighting conditions.
With a 50hz high frame rate, the LYNX LE10S delivers smooth, detailed images, reducing eye strain during prolonged use. Its intuitive user interface facilitates seamless navigation, while integrated Wi-Fi connectivity enables real-time observation via the Sight app on your smartphone. Featuring versatile recording options and 8GB of storage, it captures stunning thermal imagery and videos, easily transferable for further analysis.
Crystal-Clear Thermal Imaging: Equipped with a 256x192 thermal sensor, the LYNX LE10S delivers crisp and detailed thermal images, allowing users to detect subtle temperature variations with remarkable clarity. Whether you're tracking wildlife or conducting surveillance, this monocular ensures you won't miss a thing.
Immersive OLED Display: Enjoy an immersive viewing experience with the monocular's high-resolution 0.32-inch OLED display, boasting an impressive resolution of 800x600. With lower power consumption, wider viewing angles, and richer colours, the OLED display enhances your observation capabilities, even in challenging lighting conditions.
High Sensitivity Detector: Featuring a 12-micron high-sensitivity detector, this monocular offers exceptional thermal sensitivity of less than 35mK, ensuring clear and accurate imaging in various environmental conditions.
Versatile Recording Options: Capture every moment with ease using the monocular's video recording and snapshot capabilities. With 8GB of built-in storage space, you can store your recordings directly on the device and easily transfer them to your PC via the USB-C interface.
User-Friendly Interface: Navigate effortlessly through the monocular's features with the redesigned user interface. Frequently used functions are easily accessible, ensuring you never miss a crucial moment during your observations.
Compact and Lightweight Design: Weighing just a few ounces and featuring a compact form factor, the LYNX LE10S is highly portable and convenient to carry during outdoor adventures. Its ergonomic design ensures comfortable handling, allowing you to focus on your surroundings without distraction.
Experience the future of thermal imaging with the HikMicro LYNX LE10S, offering unmatched clarity and precision for unparalleled outdoor exploration.
Features
LE10S Thermal Monocular - With its basic magnification of 1.5x, 256 detector, and 9.7 mm focal length, this thermal monocular offers a field of view spanning 32m. This compact and convenient device is perfect for capturing detailed images in wooded areas.
Large OLED Display for More Immersive Observation - High resolution 0.32” 800 x 600 OLED is capable of lower power consumption, wider viewing angle, and richer colour.
High Frame Rate, Smoother Detailed Images - LYNX S series features filming at 50Hz. This refers to every image being enhanced with a higher dynamic range and effectively reducing eye strain when observing outdoors for a long time.
Convenient Brand New UI Design - The new UI design enhances the operation experience, quickly bringing up frequently used functions and not missing a single opportunity to spot your game.
Video and Snapshot - Onboard 8 GB memory offers storage space for the snapshots and video clips. Recorded files can be downloaded when connected to a PC via a USB Port.
Hotspot for Mobile App - The integrated hotspot module makes the Sight app a second display. Users can use digital zoom, video recording and other features on their phones.
HikMicro
HIKMICRO is a leading provider of thermal imaging equipment and solutions. Specializing in SoC and MEMS design, development, and manufacturing, the company offers thermal detectors, cores, modules, cameras and total solutions to the global market, serving customers in more than 100 countries and regions.
HIKMICRO places a high value on research and development, empowering its continual progress in thermal technology. The company earned ISO9001 certification in 2018, demonstrating its quality-first philosophy from the very start. Through continuous innovation, HIKMICRO’s products and solutions constantly meet the diverse needs of individual, commercial, industrial, and utility customers around the world.
| Thermal Module | |
| Image Sensor | VOx Uncooled Focal Plane Arrays |
| Max. Resolution | 256 × 192 |
| Frame Rate | 50 Hz |
| Pixel Interval | 12 μm |
| Response Waveband | 8 μm to 14 μm |
| NETD | Less than 35 mK (@25°C, F# = 1.0) |
| Lens (Focal Length) | 9.7 mm, F1.0 |
| Focus Mode | Focus Free |
| Detection Range | 500 m |
| Min. Focusing Distance | 4 m |
| Magnification | 1.5× to 12.0× (8×) |
| Field of View (H × V), Degrees / m @100 m | 18.0° × 13.6° / 31.7 m × 23.8 m |
| Image Display | |
| Display | 800 × 600, 0.32-inch, OLED |
| Palettes | Black Hot, White Hot, Red Hot, Fusion |
| FFC (Flat Field Correction) Mode | Auto, Manual, External Correction |
| Exit Pupil | 20 mm |
| Eye Relief | 6 mm |
| Diopter (Range) | -5D to +4D |
| Brightness Adjustment | Yes |
| Tone Adjustment | Cold, Warm |
| Contrast Adjustment | Yes |
| System | |
| Record Video | Yes |
| Capture Snapshot | Yes |
| Audio Recording | Yes |
| Standby Mode | Yes |
| Storage | Built-in memory module (8 GB) |
| PIP | Yes |
| Hotspot | Yes |
| Hot Track | Yes |
| Distance Measurement | Yes |
| Power Supply | |
| Battery Type | Rechargeable Lithium Battery |
| Battery Operating Time | 8 hours continuous running with hotspot function off (@25°C) |
| 6 hours continuous running with hotspot function on (@25°C) | |
| Type-C Power Supply | DC 5 V/2 A |
| Supports External Power Supply | Yes |
| General | |
| Protection Level | IP67 |
| Dimension | 158.3 mm × 61 mm × 57 mm (6.23” × 2.40” × 2.24”) |
| Working Temperature | -20°C to 55°C (-4°F to 131°F) |
| Weight | 260 g (0.57 lbs) |
- HikMicro LYNX LE10S Thermal Sensor Monocular
Peace of Mind Purchase Guarantee
This product is supplied via HikMicro Australia and enjoys the FULL benefits of the 'Genuine HikMicro Australian Warranty'. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). In the event that this product should fail please contact our service department or you can speak with HikMicro Australia directly.
We are a FULLY AUTHORISED Australian retailer for HikMicro Australia.
