HikMicro Gryphon GH25L Thermal Sensor Monocular
HikMicro Gryphon GH25L 25mm Lens Thermal Sensor Monocular
(HikMicro HM-TS23-25QG/WLV-GH25L)
We Think You Should Know
- Australian HikMicro Warranty
- Peace of Mind Purchase Guarantee (see T&C's)
- 25mm Lens
- 384 × 288 Resolution (Thermal), High Sensitivity Detector, Contract Adjustment
- 1920 × 1080 resolution (Optical)
- 1024 × 768 resolution (Display)
- Thermal, Optical and Fusion modes
- Record Video and Capture Snapshot
- Built-in Rechargeable Lithium Battery
- USB-C Interface to Charge or Export Files
Overview

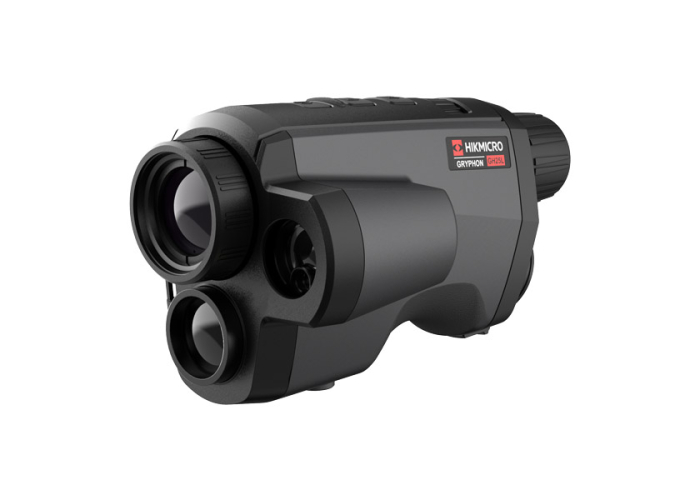

The HikMicro Gryphon GH25L is a handheld thermal monocular with bi-spectrum image capturing both visible and infrared light (heat), an advanced imaging sensor, excellent thermal sensitivity, laser rangefinder and replaceable battery.
Gryphon GH25L is equipped with a 384 × 288 infrared detector, a 1920 × 1080 Low illumination optical detector and a 1024 × 768 OLED display. It supports functions of observation, Wi-Fi hot spot, hot tracking, bi-spectrum image fusion, laser distance measurement, and so on.
The monocular is mainly applied to scenarios such as patrolling, law enforcement, searching and rescuing, narcotic enforcement, anti-smuggling, tracing and arresting, hiking, travel, etc.
Features
Bi-Spectrum Image Fusion
Bi-Spectrum Image Fusion meets the needs of all-day & all-weather observation by combining advanced imaging sensors and excellent thermal sensitivity for a clear image by capturing both visible and infrared light.
Outstanding Image Algorithm
Self-developed image algorithm optimises image quality, bringing users a high-definition and cleaner picture, highlighting the edge of the object.
A New Way to Control your Monocular
A wheel is used for menu selection and zooming, making the operation more natural. Each rotation delivers an excellent sense of control to users.
Advanced VOx 12 μm Imaging Sensor
The powerful VOx 12 μm imaging sensor with NETD < 35mK ensures the perfect distinction of the target and present clear and detailed pictures even in complete darkness.
Built-in Precision Laser Rangefinder
An integrated laser rangefinder allows for determining the distance in various scenarios, which plays an important role in precision shooting at target practice.
Replaceable Battery
Two batteries and a HikMicro external battery charger are included in the package box, which gives the freedom to observe as long as needed even for a full day.
HikMicro
HIKMICRO is a leading provider of thermal imaging equipment and solutions. Specializing in SoC and MEMS design, development, and manufacturing, the company offers thermal detectors, cores, modules, cameras and total solutions to the global market, serving customers in more than 100 countries and regions.
HIKMICRO places a high value on research and development, empowering its continual progress in thermal technology. The company earned ISO9001 certification in 2018, demonstrating its quality-first philosophy from the very start. Through continuous innovation, HIKMICRO’s products and solutions constantly meet the diverse needs of individual, commercial, industrial, and utility customers around the world.
| Thermal Module | |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Max. Resolution | 384 × 288 |
| Frame Rate | 50 Hz |
| Pixel Interval | 12 μm |
| Response Waveband | 8 μm to 14 μm |
| NETD | < 35 mK ( @25°C, F# = 1.0) |
| Lens (Focal Length) | 25 mm |
| Detection Range | 1200 m |
| Focus Mode | Manual |
| Field of View | 10.53° × 7.9° (H × V) |
| Min. Focusing Distance | 2 m |
| Aperture | F1.0 |
| Magnification | 2.39 |
| Digital Zoom | 1 ×, 2 ×, 4 ×, 8 × |
| Optical Module | |
| Image Sensor | 1/2” Progressive Scan CMOS |
| Focal Length | 22 mm |
| Wavelength | 400 nm to 1000 nm |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | 0.001 Lux @ F1.0 |
| Image Display | |
| Frame Frequency | 50 Hz |
| Display | 0.39 inch, OLED, 1024 × 768 |
| Image Mode | White Hot, Black Hot, Red Hot, Fusion, Visible, Image Fusion |
| FFC (Flat Field Correction) Mode | Auto, Manual, External Correction |
| Smart Function | |
| Hot Spot | Yes |
| Hot Track | Yes |
| Distance Measurement | Yes |
| Standby Mode | Yes |
| System | |
| Record Video | Yes |
| Capture Snapshot | Yes |
| Built-in Memory | 16 GB |
| Power Supply | |
| Battery Type | One 18650 battery |
| Power | Removable Battery |
| Battery Operating Time | 5 hours |
| General | |
| Protection Level | IP67 |
| Dimension (WxHxD) | 161.5 mm x 87.2 mm × 73.3 mm (6.36" x 3.43" × 2.88") |
| Weight | 480 g |
| Working Temperature | -30 to 55°C |
| Eye-Relief | 19.5 mm |
| Laser Rangefinder | |
| Safety Class for Laser | Class 1 |
| Wavelength | 905 nm |
| Max. Measuring Range | 600 m |
| Measurement Accuracy | ± 1 m |
