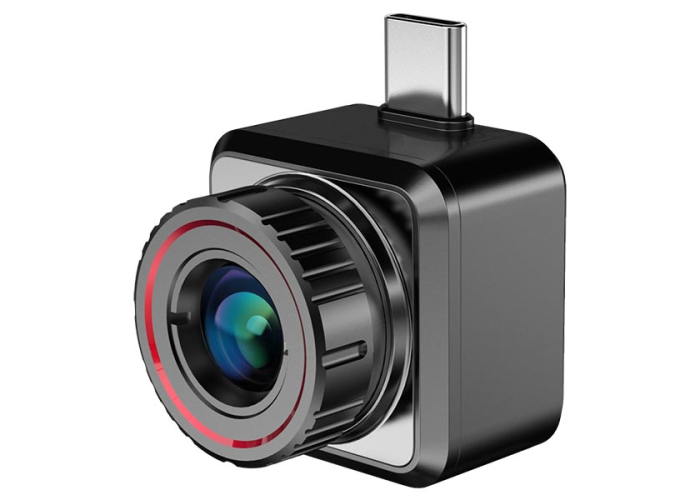

HikMicro Explorer E20PLUS Smartphone Thermal Cam
HikMicro Explorer E20PLUS Thermal Camera for Android Smartphones
(HikMicro E20PLUS)
We Think You Should Know
- Australian HikMicro Warranty
- Purchase Guarantee (see T&Cs)
- Thermal Camera for Android Smart Phone
- 256×192 Resolution (Thermal)
- 6 Colour Palettes
- 9.7mm Focal Length
- Up to 970m Range
- 12 μm High Sensitivity Detector
- Thermal Sensitivity ≤ 50 mK
- 26g Compact Pocket Size
- Powered Direct by Phone via USB-C Port
Why buy the HikMicro Explorer E20PLUS Thermal Camera
The HikMicro Explorer E20PLUS thermal camera for smartphones is a high-performance imaging device that uses thermal technology to capture images in absolute darkness. E20PLUS is designed for consumers of applications of outdoor activities, like birdwatching, hiking, camping, sports and concerts. Equipped with a functional HIKMICRO Sight App, E20PLUS enables you to get thermal imaging on your phone with a USB Type-C connector.
Features
Application Scenarios
EXPLORER is perfect for the outdoors. The 256x192, 12µm thermal camera, 9.7mm lens and an 18.1°x13.6° / 31.8mx23.8m @100m wide FOV make it a great choice for users to find and identify hidden targets in complex surroundings, such as bird searching or observing nature on camping trips at day or night.
Plug and Go, Easy to Use
Mini in the pocket and smaller than a watch. Less than 26 g, just take it as you go.
Installation Takes Less Than One Second
Simply plug in the E20 Plus to your smartphone (only support Android Phones) and start exploring it with HIKMICRO Sight APP right away, wireless connectivity supported
Powerful Thermal Detector, Image Matches Your Visual Experience
256 x 192 @12μm thermal detector, 9.7mm lens ensures a wide 18.1°x13.6°/31.8mx23.8m @100m FOV, EXPLORER ensures the thermal image significantly matches your visual experience.
Smoother HDR image
Filming at 50Hz, every image is enhanced with a higher dynamic range.
Multiple Modes, Extra Birdwatching Mode Available
Six palettes are provided to meet your observation needs in a variety of outdoor scenarios.
Battery-free Design with Low Power Consumption
With a battery-free design and a ultra-low power consumption (<0.35W), E20Plus can fully meet the needs for all-day use.
Long Detection Range
Though with a compact size, EXPLORER offers a long detection range that you can observe up to 970m with a clear image.
HikMicro
HIKMICRO is a leading provider of thermal imaging equipment and solutions. Specializing in SoC and MEMS design, development, and manufacturing, the company offers thermal detectors, cores, modules, cameras and total solutions to the global market, serving customers in more than 100 countries and regions.
HIKMICRO places a high value on research and development, empowering its continual progress in thermal technology. The company earned ISO9001 certification in 2018, demonstrating its quality-first philosophy from the very start. Through continuous innovation, HIKMICRO’s products and solutions constantly meet the diverse needs of individual, commercial, industrial, and utility customers worldwide.
| Thermal Module | |
| Image Sensor | Vanadium Uncooled Focal Plane Arrays |
| Max. Resolution | 256 × 192 |
| Frame Rate | 50 Hz |
| Pixel Interval | 12 μm |
| Response Waveband | 8 μm to 14 μm |
| NETD | Less than 50 mK (@25°C,F#=1.0) |
| Lens (Focal Length) | 9.7 mm |
| Detection Range | 970 m |
| Field of View(H × V), Degrees / m @100m | 18.1 ° × 13.6 ° （H × V）/ 31.8 m × 23.8 m |
| Aperture | F1.0 |
| Magnification | 1×-2x (Digital zoom 2x) |
| Image Display | |
| Image Mode | Birdwatching, Red Hot, White Hot, Black Hot, Rainbow, Ironbow |
| Contrast Adjustment | Adjustable contrast from 0 to 100 by slider control |
| Brightness Adjustment | Adjustable brightness from 0 to 100 by slider control |
| System | |
| Record Video | Yes |
| Capture Snapshot | Yes |
| Digital Magnetic Compass | Yes |
| PIP | YES |
| Hot Track | YES |
| General | |
| Power Consumption | 360 mW |
| Protection level | IP40 |
| Weight | 26g |
| Dimension | 26.6mm × 26.6mm × 27.2mm |
| Working Temperature | - 10 °C to 50 °C |
| Power Supply | USB Type-C interface |
