HikMicro Condor CH35L Thermal Monocular - Black
HikMicro Condor CH35L Thermal Monocular - Black
(HikMicro CH35L)
We Think You Should Know
- Australian HikMicro Warranty
- Purchase Guarantee (see T&C's)
- 35mm Lens Monocular
- 384 x 288 @ 12um IR Sensor
- 1024 x 768 0.39" OLED Display
- 1800m Detection Range
- 1000m Rangefinder
- Video & Snapshot
- Image Pro / Zoom Pro
- Compact and Lightweight
Overview

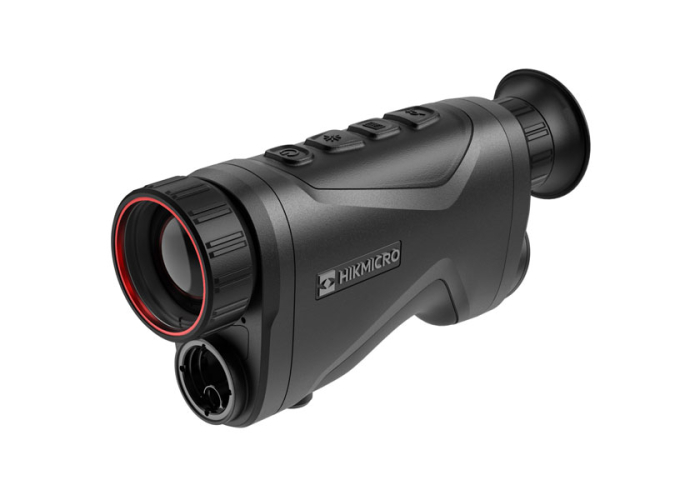

The HikMicro Condor CH35L is a thermal monocular equipped with a 384 × 288 @ 12 um infrared detector and a 1024 × 768 OLED display that can perform in all ambient light. With less than 20 mK NETD, which represents high thermal sensitivity, it ensures perfect image quality and detail recognition even in the hardest weather conditions. Its 1000 m Laser rangefinder can accurately measure the distance when you are stalking or observing under low-light conditions. It can be applied mainly in forest hunting, birding, animal searching, adventuring, and recusing scenario.
Featuring a powerful 384 detector, a 35 mm focal length, and an impressive 3.5x magnification, the HikMicro Condor CH35L offers a field of view spanning 13m. This versatile device is perfect for capturing detailed images in large, open spaces and bringing stunning images to life with its image algorithm.
Lightweight, boasts a compact and ergonomic design and uses a rechargeable and replaceable Li-ion battery with up to 4.5 hours of continuous operation.
Features
Ultra clear image, impressive detail recognition
Powerful high sensitivity (NETD＜20mK) thermal detector of HIKMICRO CONDOR thermal imaging monocular helps small details of objects and backgrounds to be identified easily and clearly in different weather and light conditions.
Purpose-built image algorithm brings stunning image quality
HIKMICRO's self-developed image algorithms give HIKMICRO CONDOR thermal monocular highly optimized images and remarkable details. These algorithms are developed based on extensive analysis of diverse hunting scene images and thermal imaging features.
HIKMICRO Image Pro
HIKMICRO Image Pro ensures the maximum digital image optimization and provides high-quality rendering of both target objects and background, especially in the original magnification.
HIKMICRO Zoom Pro
HIKMICRO Zoom Pro can help present ultra-clear images with a higher signal-to-noise ratio and impressive details, especially when using digital zoom.
Accurate Distance Measurement
Distance from the game is essential to ensure a safe shot. The integrated laser rangefinder in HIKMICRO CONDOR thermal monocular allows the user to measure a distance up to 1,000m with an accuracy of ±1 metre in various scenarios, enjoying the most precise measurement of the situation.
Ergonomic grasping shape design for better operation experience
HIKMICRO CONDOR's compact and easy-grasp shape design perfectly fits human hands' purlicue. It adopts soft and skin-friendly material to guarantee better operation for both left- and right- hand users.
Robust magnesium alloy housing design for long-time use
Magnesium alloy design retains HIKMICRO CONDOR thermal monocular a robust structure with light weight and improves stability to meet long-lasting use under any harsh environmental condition.
Magnetic lens cover, easily take and collect
Loss-proof magnetic lens cover realizes easy and silent installation and collection, ensuring better protection of the HIKMICRO CONDOR SDLC lens.
Fast boot on function and replaceable batteries bring more lasting use
Fast boot on within 3s makes HIKMICRO CONDOR always ready for use
Auto screen off darkens the screen to save energy and increase battery time
The integrated algorithm automatically detects HIKMICRO CONDOR‘s exact position and activates the auto screen-off function when there is no need to use it. HIKMICRO CONDOR will stand by automatically at a lateral tilt of 75°as well as at a downward or upward tilt of 70°.
Personalized settings available to the suitable visual experience
HIKMICRO CONDOR thermal monocular is characterized by the hierarchical menu, prioritizing frequently used functions according to user habits. Users can customize their visual experience to the highest level of comfort by adjusting settings such as contrast, sharpness, and other personalized options.
HikMicro
HIKMICRO is a leading provider of thermal image equipment and solutions. HIKMICRO offers thermal detectors, cores, modules, cameras and total solutions to the global market in more than 100 countries and regions.
HIKMICRO places a high value on research and development, empowering its continual progress in thermal technology and earned ISO9001 certification in 2018, demonstrating its quality-first philosophy from the very start.
Thermal Module
| Image Sensor | VOx Uncooled Focal Plane Arrays |
| Max. Resolution | 384 × 288 |
| Frame Rate | 50 Hz |
| Pixel Interval | 12 μm |
| Response Waveband | 8 μm to 14 μm |
| NETD | Less than 20 mK (@25°C), F# = 1.0 |
| Lens (Focal Length) | 35 mm, f1.0 |
| Focus Mode | Focus Ring |
| Detection Range | 1800 m |
| Min. Focusing Distance | 3.5 m |
| Magnification | 3.5× to 28.0× (8×) |
| Field of View(H × V), Degrees | 7.5° × 5.6°/13.1 m × 9.7 m @ 100 m |
Image Display
| Display | 1024 × 768, 0.39 inch, OLED |
| Palettes | Black Hot, White Hot, Red Hot, Fusion |
| FFC (Flat Field Correction) Mode | Auto, Manual, External Correction |
| Exit Pupil | 4 mm |
| Eye Relief | 15 mm |
| Diopter (Range) | -5 D to +3 D |
| Brightness Adjustment | Yes |
| Tone Adjustment | Cold, Warm |
| Contrast Adjustment | Yes |
| Image Pro | Yes |
| Zoom Pro | Yes |
System
| Record Video | Yes |
| Capture Snapshot | Yes |
| Audio Recording | Yes |
| Standby Mode | Yes |
| Storage | Yes |
| PIP | Yes |
| Hotspot | Yes |
| Hot Track | Yes |
| Distance Measurement | Yes |
Power Supply
| Battery Type | Replaceable and Rechargeable Li-ion Battery |
| Battery Operating Time | 4.5-hour continuous running with CVBS and hotspot function off (@25°C) |
| Type-C Power Supply | 5 VDC, 2 A |
| Supports External Power Supply | Yes |
General
| Protection Level | IP67 |
| Dimension | 184.9 mm × 53 mm × 87.8 mm (7.28" × 2.09" × 3.46") |
| Weight | 400 g without battery |
| Working Temperature | -30°C to +55°C |
Laser Rangefinder
| Safety Class for Laser | Class 1 |
| Wavelength | 905 nm |
| Max. Measuring Range | 1000 m |
| Measurement Accuracy | ± 1 m |
| Min. Measuring Range | 10 m |
