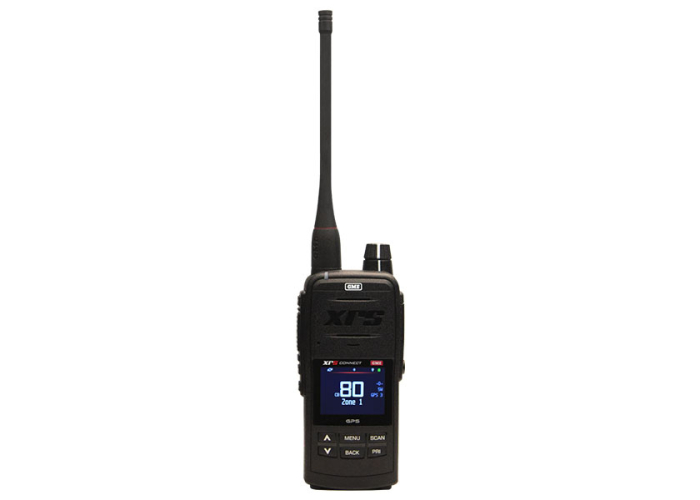

GME XRS-660 XRS Connect Handheld UHF CB Radio
GME XRS-660 XRS Connect Handheld UHF CB Radio
(GME XRS-660)
We Think You Should Know
- Australian GME Warranty
- Purchase Guarantee (see T&C's)
- 80 Channel UHF CB Radio
- Bluetooth Connection
- 5/1/0.1W Switchable Power
- IP67 Ingress Protection
- Rugged Design
- Class-leading 2 Watt Speaker
- TFT Colour LCD Display
- ScanSuite Digital Scanning
- Built-in GPS Receiver
- XRS Connect Smartphone App
- Multiple Power Saving Modes
Overview
The GME XRS-660 is the most powerful UHF CB Radio we've ever made. Building on the market-leading innovation of GME’s popular range of XRS™ Connect UHF CB Radios, the Australian Made XRS-660 offers several exciting new features, clearly demonstrating GME’s unwavering commitment to the development of new technology for UHF CB Radio users.
The XRS-660 is the first Handheld UHF CB Radio to feature a Colour TFT LCD screen, providing the ultimate Handheld radio display for all environmental conditions – even in full sunlight.
Bluetooth® audio connectivity allows the XRS-660 to wirelessly connect to an extensive range of third-party audio accessories, providing users with new and improved ways to stay connected.
Built-in GPS functionality ensures the XRS-660 offers true location awareness without relying on a smartphone to provide GPS location data. This capability is particularly useful in commercial applications where location tracking of users in remote areas may be required for workplace safety.
Featuring rugged IP67 Ingress Protection and a MIL-STD810G rating, the XRS-660 is our toughest and most advanced Handheld UHF CB Radio yet.
Features
- Made In Australia
- 5 Year Warranty
- 5/1/0.1 Watt Switchable Transmission Power
- Rugged Design, IP67 Ingress Protection
- MIL-STD810G Rating
- Class-leading 2 Watt Speaker
- Transflective Colour LCD Display (TFT)
- Bluetooth® Wireless Technology – Audio & Data
- Built-in GPS Receiver - Location Aware
- XRS™ Connect – Smartphone Application
- Scansuite™ – Digital Scanning Technology
- Multiple Power Saving Modes
GME - The Company
GME was established over 50 years ago with the intention of designing and manufacturing world-class radio and communication equipment within Australia. GME products fall under the umbrella of Standard Communications Pty. Ltd. and proudly remain a privately owned Australian company. Their radio products are of the most reliable quality and have been depended upon by the Australian rural community and State Emergency Services. Their communications product range is broader than just radios and we stock great quality GME products including marine and car audio, UHF and VHF radios, scanners, chargers, batteries and a host of communication accessories.
| GENERAL | |
|---|---|
| Compliance | AS/NZS 4365 for radio communications equipment in the UHF citizen band and personal radio service. |
| Frequency Range | TX: 476.425 MHz – 477.4125 MHz RX: 403 MHz – 520 MHz |
| Number of Channels | 80 CB + 400 Receive only channels across 8 zones |
| Channel Spacing | 12.5 kHz |
| Scanning Speed | 50 Channels Per Second (20 ms per channel) |
| Antenna | 50Ω, SMA Male |
| Supply Voltage | 7.4 V DC |
| Battery Type | Li-Ion |
| Battery Capacity | 2550 mAh |
| Radio Configuration | BATTERY OPERATING TIME | ||
|---|---|---|---|
| 5W | 1W | 0.1W | |
| Low Power Save, GPS + BT On | 20 Hours | 31 Hours | 48 Hours |
| Low Power Save, GPS + BT Off | 22 Hours | 33 Hours | 56.5 Hours |
| HI Power Save, GPS + BT Off | 22.5 Hours | 33.5 Hours | 64 Hours |
| TRANSMITTER | |
|---|---|
| RF Output | High: 5W Low: 1W Ultra-Low: 100mW |
| Frequency Stability | ± 2.5 PPM |
| Modulation | FM |
| Spurious Emission | < -40 dBm |
| Maximum Deviation | ± 2.5 kHz |
| Modulation Distortion | 0.4% @ 1kHz / 1.5kHz Deviation |
| RECEIVER | |
|---|---|
| Sensitivity | -122 dBm for 12 dB SINAD -122 dBm (450 MHz – 520 MHz) |
| Adjacent Channel Selectivity | > 60 dB (NB) |
| Audio Output Power | 2 W (8Ω) |
| Audio Signal to Noise | 40 dB (SINAD) |
| MECHANICAL AND ENVIRONMENTAL | |
|---|---|
| Dimensions | 59mm (W) x 42mm (D) x 137mm (H) (not including antenna) |
| Weight | 337 Grams (with battery and antenna) |
| Operating Temperature | -20°C to +60°C |
| Ingress Protection | IP67 (dust tight and waterproof) |
| Accessory Connector | GME Spring Loaded Connector |
- 5 Watt Handheld UHF CB Radio (XRS-660)
- 2550mAh Li-Ion Battery Pack (BP030)
- Rapid Desktop Charger (BCD026)
- AC Adaptor (PS005)
- Belt Clip (MB059)
- Quick Start Guide
Peace of Mind Purchase Guarantee
This product is supplied via GME Australia and enjoys the FULL benefits of the 'Genuine GME Australian Warranty'. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). In the event that this product should fail please contact our service department or you can speak with GME Australia directly.
We are a FULLY AUTHORISED Australian retailer for GME Australia.
