GME TX3100 5 Watt In Car UHF CB Radio - 80 Channel
How To Build A Bundle
The following accessories can be bundled with your purchase by checking the green ‘Include with Product’ button. You can add as many items to your order as you require and then simply ‘Add to Cart’ to complete order.
- Product Info

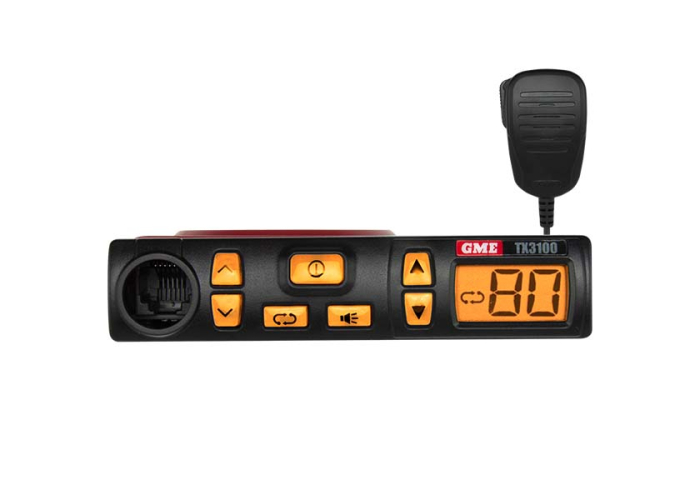

GME TX3100 UHF CB Radio
We Think You Should Know
- Supplied with 36 Month Australian GME Full Warranty
- 80 Channel
- Unique flip feature for flexible mounting
- Powered by Pure Sound DSP engine
- User adjustable squelch
- User selectable duplex channels
- Australian design and manufacture
The GME TX3100 radio is Australian designed and built and is one of the most advanced UHF Citizen Band radio available. Combining the very latest in electronic hardware with the most up-to-date computer aided design and manufacturing techniques to produce an extremely compact mobile radio with outstanding specifications and performance. The TX3100, with its front mounted controls, is designed for unobtrusive mounting in modern vehicles. Its innovative features include a built-in loud speaker housed within an extremely compact case.
Genuine GME Retailer
NO Frills is a fully accredited GME Retailer authorised to sell genuine authentic GME UHF Products.
Declaration of Conformity and Warranty
This product is supplied directly from the Australian GME Distributor and is offered with a full Australian 36 month MANUFACTURERS warranty. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). In the event that this product should fail please contact our service department to arrange service for this product. You are also have the option of speaking with GME Australia should you want to.
NO Frills Electronics IS an Authorised Australian GME UHF Retailer.
This product will be shipped from our Sydney Warehouse and you are welcome to pick it up directly from our store in Sydney. This product is NOT DROP SHIPPED from overseas.
- Tech Specs
GENERAL Compliant Specification AS/NZS 4365 Frequency Range 476.425-477.4125 MHz Number of Channels 80 UHF CB Channel Spacing 12.5 kHz Operation Mode Simplex channels 1-80 Semi Duplex channels 1‑8 Scanning Speed 20 channels per second Antenna Impedance 50 Ohms nominal Operating Voltage Range 10-15 Volts DC Nominal Battery Voltage 13.8 Volts DC Over Voltage Protection 25 Volts DC max. At 18 Volts DC the RF power is reduced Over Current Protection In-line 2A Fuse Reverse Polarity Protection Shunt Diode Frequency Stability ±2.5 PPM TRANSMITTER RF Output 5.0 watts max. Modulation FM Maximum Deviation < ± 2.5 kHz at + 20 dB limiting Spurious Emissions < - 70 dBc Transmit Frequency Response + 6 dB per octave 300 Hz to 3 kHz + 1-3 dB. Audio Signal to Noise > 45 dB Current Consumption 1.5 Amps with 50 Ohms termination RECEIVER Circuit Type Double Conversion Superheterodyne Intermediate Frequencies 1st - 38.85 MHz 2nd - 450 kHz Current Consumption < 180 mA muted 600 mA @ max. A.F output Sensitivity - 123 dBm for 12 dB SINAD unweighted Selectivity - 6 dB at + 3.5 kHz ‑ 60 dB at ± 12.5 kHz Intermodulation Immunity 73 dB Blocking Immunity 100 dB Spurious Response Immunity 70 dB Audio Power 3 Watts average into 4 Ohms Audio Signal to Noise > 45 dB Receive Frequency Response ‑ 6 dB/Octave de‑emphasis 300 Hz to 3 kHz + 1-3 dB Conducted Spurious Emission < - 57 dBm MECHANICAL Dimensions 102 (W) x 87 (D) x 23 (H) mm Weight 158 grams Shock and Vibration MIL STD 810 method ENVIRONMENTAL Temperature Range -10°C to +60°C
- In The Box
- Mounting bracket
- Screw pack
- Microphone clip
- DC lead
- Spare GME model label
- Instruction manual
