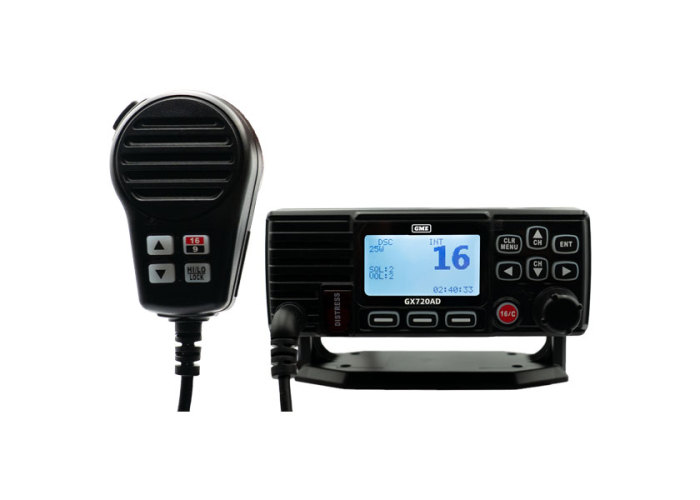

Name: GME GX720AD VHF DSC Marine Fixed Mount Radio with AIS Receiver - Black
Brand: GME
SKU: GX720AD
Price: 598.85 AUD
Availability: InStock

GME GX720AD VHF DSC Marine Fixed Mount Radio with AIS Receiver - Black
(GME GX720AD)

We Think You Should Know

Australian GME Warranty
Purchase Guarantee (see T&C's)
25/1 watt switchable power output
DSC (Digital Select Calling)
AIS Receiver
Integrated GPS receiver
Waterproof speaker mic
Large and bright LCD display
Compact design
IP67 ingress protection
Dual and triple watch with programmable priority channel
Two working channel memories
NMEA0183 & NMEA2000

Overview

Experience dependable marine communication with the GX720AD VHF Fixed Mount Transceiver. Designed for both recreational and commercial mariners, this compact yet powerful radio delivers crystal-clear audio and reliable 25W transmission across all marine VHF channels. With its large, easy-to-read display and intuitive controls, the GX720AD ensures effortless operation even in challenging sea conditions.

The GX720AD stands out with its rich feature set, including Digital Selective Calling (DSC) Class D for instant emergency alerting and position sharing. It also offers dual/tri-watch, AIS receive, NMEA 2000, and NMEA 0183 connectivity for seamless integration with most modern navigation systems. Backed by an industry-leading 3-year warranty, the GX720AD delivers excellent value and peace of mind on every voyage.

Built tough for harsh marine environments with robust waterproofing and enhanced connectivity options, the GX720AD is the ideal choice for any vessel. Whether you’re coastal cruising or heading offshore, this transceiver ensures you stay connected and safe.

GME - The Company

GME was established over 50 years ago with the intention of designing and manufacturing world class radio and communication equipment within Australia. GME products fall under the umbrella of Standard Communications Pty. Ltd. and proudly remain a privately owned Australian company. Their radio products are of the most reliable quality and have been depended upon by the Australian rural community and State Emergency Services. Their communications product range is broader than just radios and we stock great quality GME products including marine and car audio, UHF and VHF radios, scanners, chargers, batteries and a host of communication accessories.

View All Features

General
Transmit Frequency	156.025 – 157.55 MHz
Receive Frequency	156.300 – 162.150 MHz
Digital Selective Calling (DSC)	Class D dual receiver (Individual CH70)
CH70	156.525 MHz
Channel Spacing	25 kHz
Modulation Mode	FM (16K0G3E), DSC/ATIS (16K0G2B)
Frequency Stability	±5 ppm
Compass Safe Distance	1.0 m
DSC Buddy List	25 / 50 / 100
Antenna Impedance	50 Ω (nominal)
Power Supply	13.8 V DC
Transmitter
RF Output Power	High: 25 W / Low: 1 W
Harmonic Emissions	0.25 µW
Residual Modulation	< 40 dB
Current Drain, Stdby / TX (high) / RX	0.5A/ 5A / 1A (@ 13.8V
Maximum Frequency Deviation	±5.0 kHz
Local Oscillator Mode	PLL (Phase-Locked Loop)
Audio Frequency Response	+1 dB to −3 dB of 6 dB/octave from 300–3000 Hz
Frequency Error	< ±1.5 kHz
Current drain Transmit(High): Transmit(Middle): Transmit(Low)	≤ 3.2A ≤ 2A ≤ 1.2A
Receiver
Receive System	Double-conversion superheterodyne
Intermediate Frequency	1st: 38.85 MHz, 2nd: 450 kHz
Sensitivity @ 12 dB SINAD	< +6 dBµV (e.m.f.)
Squelch Sensitivity	< +6 dBµV (e.m.f.)
Spurious Response/Rejection	≥70 dB
Adjacent Channel Rejection	≥70 dB
Intermodulation	≥68 dB
Audio Frequency Response	+1 dB to −3 dB of 6 dB/octave from 300–3000 Hz
Audio Output Power	10 W @ 4 Ω
Audio Distortion	≤5%
AIS Receiver	Dual channels
Mechanical & Environmental
Dimensions	155 × 60 × 40 mm
Operating Temperature	-15°C to +55°C
Weight	285 g
Ingress Protection	IP67
Note
All values are typical unless otherwise stated and are subject to change without notice or obligation.
