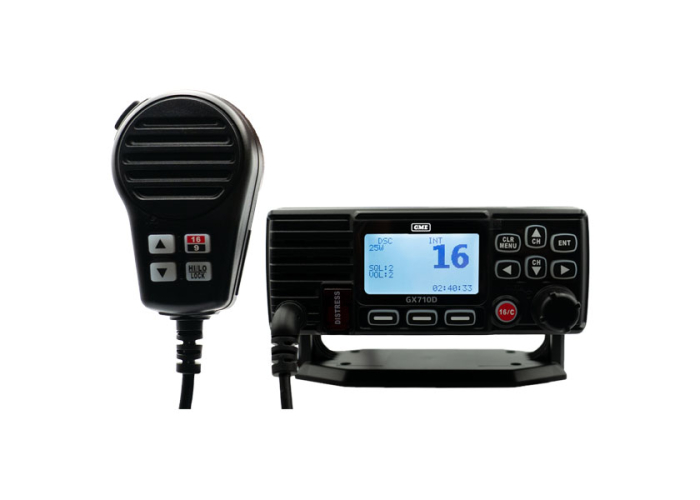

GME GX710D VHF DSC Marine Fixed Mount Radio - Black
GME GX710D VHF DSC Marine Fixed Mount Radio - Black
(GME GX710D)
We Think You Should Know
- Australian GME Warranty
- Purchase Guarantee (see T&C's)
- 25/1 watt switchable power output
- DSC (Digital Select Calling)
- Integrated GPS receiver
- Waterproof speaker mic
- Large and bright LCD display
- Compact design
- IP67 ingress protection
- Dual and triple watch with programmable priority channel
- Two working channel memories
- NMEA0183
Overview
Experience dependable marine communication with the GME GX710D VHF Fixed Mount Transceiver. Designed for both recreational and commercial mariners, this compact yet powerful radio delivers crystal-clear audio and reliable 25W transmission across all marine VHF channels. With its large, easy-to-read display and intuitive controls, the GX710D ensures effortless operation even in challenging sea conditions.
The GX710D stands out with its rich feature set, including Digital Selective Calling (DSC) Class D for instant emergency alerting and position sharing. It also offers dual/tri-watch, multiple scanning modes, foghorn function, and MOB support. Backed by an industry-leading 3-year warranty, the GX710D delivers excellent value and peace of mind on every voyage.
Built tough for harsh marine environments with robust waterproofing and reliable connectivity options including GPS and NMEA integration, the GX710D is the ideal upgrade for any vessel. Whether you’re coastal cruising or heading offshore, this transceiver ensures you stay connected and safe.
GME - The Company
GME was established over 50 years ago with the intention of designing and manufacturing world class radio and communication equipment within Australia. GME products fall under the umbrella of Standard Communications Pty. Ltd. and proudly remain a privately owned Australian company. Their radio products are of the most reliable quality and have been depended upon by the Australian rural community and State Emergency Services. Their communications product range is broader than just radios and we stock great quality GME products including marine and car audio, UHF and VHF radios, scanners, chargers, batteries and a host of communication accessories.
| General | |
|---|---|
| Transmit Frequency | 156.025 – 157.425 MHz |
| Receive Frequency | 156.300 – 162.250 MHz |
| Digital Selective Calling (DSC) | Class D dual receiver (Individual CH70) |
| CH70 | 156.525 MHz |
| Channel Spacing | 25 kHz |
| Modulation Mode | FM (16K0G3E), DSC/ATIS (16K0G2B) |
| Frequency Stability | ±5 ppm |
| Compass Safe Distance | 1.0 m |
| DSC Buddy List | 25 / 50 / 100 |
| Antenna Impedance | 50 Ω (nominal) |
| Power Supply | 13.8 V DC |
| Transmitter | |
| RF Output Power | High: 25 W / Low: 1 W |
| Harmonic Emissions | 0.25 µW |
| Residual Modulation | < 40 dB |
| Current Drain, Stdby / TX (high) / RX | 0.5A/ 5A / 1A (@ 13.8V |
| Maximum Frequency Deviation | ±5.0 kHz |
| Local Oscillator Mode | PLL (Phase-Locked Loop) |
| Audio Frequency Response | +1 dB to −3 dB of 6 dB/octave from 300–3000 Hz |
| Frequency Error | < ±1.5 kHz |
| Receiver | |
| Receive System | Double-conversion superheterodyne |
| Intermediate Frequency | 1st: 38.85 MHz, 2nd: 450 kHz |
| Sensitivity @ 12 dB SINAD | < +6 dBµV (e.m.f.) |
| Squelch Sensitivity | < +6 dBµV (e.m.f.) |
| Spurious Response/Rejection | ≥70 dB |
| Adjacent Channel Rejection | ≥70 dB |
| Intermodulation | ≥68 dB |
| Audio Frequency Response | +1 dB to −3 dB of 6 dB/octave from 300–3000 Hz |
| Audio Output Power | 10 W @ 4 Ω |
| Audio Distortion | ≤5% |
| Mechanical & Environmental | |
| Dimensions | 155 × 60 × 40 mm |
| Operating Temperature | -15°C to +55°C |
| Weight | 285 g |
| Ingress Protection | IP67 |
| NMEA | |
| Communication Port | NMEA 0183 (Default 38400 baud) |
| NMEA 0183 Input (Receive) | GGA, GLL, GSV, RMC, VTG, ZDA |
| NMEA 0183 Output (Transmit) | DSC (for DSC calls), DSE (enhanced position), AIVDM (AIS) |
| Note | |
| All values are typical unless otherwise stated and are subject to change without notice or obligation. | |
- GME GX710D VHF Marine Radio - Black
- Microphone w/ flexible lead
- Power lead
- Mounting hardware
Peace of Mind Purchase Guarantee
This product is supplied via GME Australia and enjoys the FULL benefits of the 'Genuine GME Australian Warranty'. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). In the event that this product should fail please contact our service department or you can speak with GME Australia directly.
We are a FULLY AUTHORISED Australian retailer for GME Australia.
