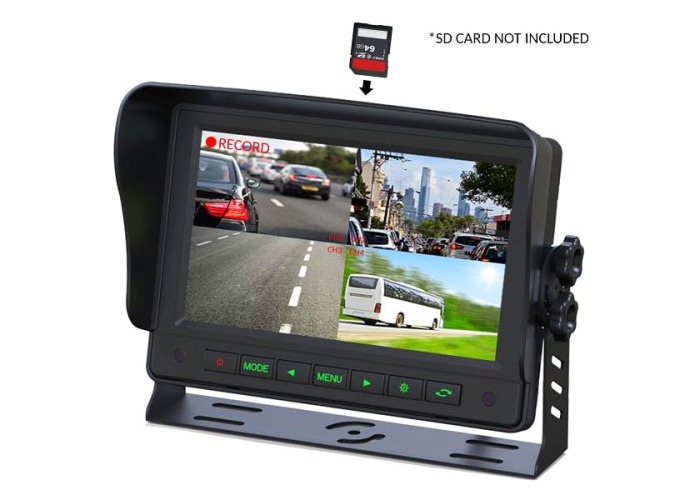

Gator GT704DVR 7" Dash Mount Quad Display with DVR

Delivery and In-Store Pickup: As this product is located at an external warehouse delivery times may be delayed by up to 48 hours. In-store pickup is not available on this item.

Gator GT704DVR 7" Dash Mount Quad Display with DVR
(Gator GT704DVR)

We Think You Should Know

• Australian Gator Warranty
• Purchase Guarantee (see T&C's)
• Built-in DVR that can record up to 4 cameras into 1 video file
• 7" commercial grade monitor with single, twin and quad view display options
• 4 PROLINK II camera inputs, 3 with automatic trigger
• 12V and 24V compatible suitable for trucks, cars and machinery
• PAL/NTSC auto-switching for compatibility with any camera
• High/low voltage cutoff and built-in short circuit protection
• Optional windscreen suction mount available (GTSM1)
• Supports up to 64GB SD Card (sold separately)
• Easy wired installation for DIY enthusiasts
• 3-Year Warranty for peace of mind

Overview

When it comes to operating a heavy truck, mining loader or any other industrial or construction vehicle, it all boils down to ensuring the overall safety of everyone. Gator GT704DVR is a 7" display monitor with 4 camera inputs. It can display single, twin and quad views depending on what best suits the user. It also has a digital video recording (DVR) function, simply add a micro SD card to the system and it can record up to 4 cameras into 1 video file. The display monitor comes with a heavy-duty metal mounting bracket and a removable sunshade. It is also compatible with 12V or 24V vehicles so compatibility won't be an issue.

Gator

Established in 1985, TDJ Australia Pty Ltd is Australia's largest importer and wholesaler of automotive electronics and accessories. They are Australia's leading Innovative Developers of Products and Accessories for the Aftermarket and OEM Automotive Electronics Industry.

• MONITOR SIZE: 7.0"
• MOUNTING TYPE: ADJUSTABLE METAL BRACKET
• RESOLUTION / BRIGHTNESS: 1024(H) x 600(V) / 450 CANDELA
• AHD: NO
• INPUT VOLTAGE: 12V/24V
• VIDEO INPUTS: 4
• DISPLAY CONFIGURATION (SINGLE, DUAL OR QUAD): SINGLE, DUAL, QUAD
• IMAGE FLIP: YES
• DISPLAY IMAGE ADJUSTMENT:
  • BRIGHTNESS: YES
  • CONTRAST: YES
  • SATURATION: YES
• REVERSE (MIRROR) IMAGE: YES (SELECTABLE)
• PAL or NTSC: PAL/NTSC
• CONNECTION TYPE: PROLINK II
• DIMENSIONS (Monitor Only): 129mm(H) X 195mm(W) X 30mm(D)
• DIMENSIONS (Monitor & Bracket): 156mm(H) X 215mm(W) X 73mm(D) [with bracket in vertical position and sunshade fitted]
• WIRED OR WIRELESS: WIRED
• WARRANTY: 3 YEARS
• OTHER FEATURES: 4-CHANNEL DVR WITH UP TO 64GB SD CARD SUPPORT
• NOTES:
  • Class 10 or Higher SD Card Required for DVR Function (Sold Separately).
  • DVR Feature ONLY Records what is displayed on the monitor eg: if 4 cameras are displayed in quad mode on the monitor the DVR will record in quad view, if two cameras are displayed in split screen mode the DVR will record in two camera split screen and so on...
  • DVR records 1-minute long videos only and will loop when SD card is full

• Gator GT704DVR 7" Dash Mount Quad Display with DVR
